The Stud and Track Cold Roll Forming Machine is a specialized piece of equipment designed to produce steel framing components, such as studs and tracks, used in the construction of walls, ceilings, and partitions. These machines are engineered for high precision, efficiency, and durability, enabling manufacturers in Florida to meet the demands of residential, commercial, and industrial construction projects.

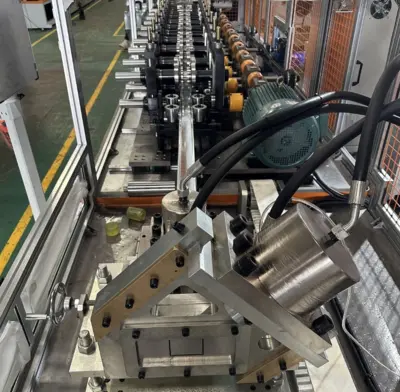

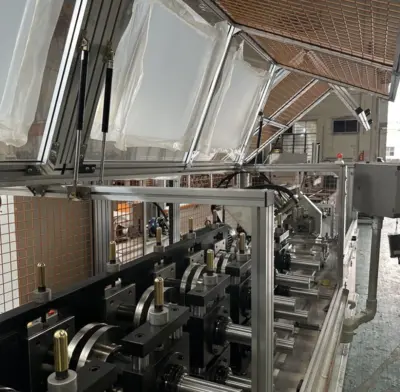

The machine works by feeding metal coils through a series of rollers that gradually shape the metal into the desired stud or track profile. It is equipped with advanced control systems and cutting mechanisms to ensure uniformity and precision in every piece produced.
Applications
Drywall partition systems
Ceiling grids
Metal framing for residential and commercial buildings
Modular construction
Setup and Installation Process
Foundation Preparation: Ensure the machine is installed on a level and stable foundation.
Power and Connections: Connect to the power supply and integrate the hydraulic and pneumatic systems.
Coil Loading: Use a coil car or crane to load the metal coil onto the uncoiler.
Calibration: Configure the PLC system for the required stud and track profiles.
Trial Run: Conduct a test run to ensure profile accuracy and machine performance.
Production Start: Begin full-scale production after confirming all parameters are correct.
Maintenance Requirements
Daily Checks: Inspect rollers, cutting blades, and electrical connections for wear or damage.
Lubrication: Regularly lubricate moving parts to ensure smooth operation.
Periodic Overhaul: Clean and recalibrate rollers and the PLC system to maintain accuracy.
Replacement of Worn Parts: Replace worn or damaged components promptly to avoid production downtime.
Common Questions and Answers
Q: What materials can the machine process?
A: The Stud and Track Cold Roll Forming Machine can process galvanized steel, stainless steel, and aluminum, typically in thicknesses ranging from 0.5mm to 2.0mm.
Q: Is the machine suitable for Florida’s construction industry?
A: Yes, the machine is ideal for Florida’s construction needs, particularly for drywall framing and modular construction, which are common in the state’s residential and commercial projects.
Q: Can the machine produce customized profiles?
A: Yes, the machine can be programmed to produce custom stud and track profiles by adjusting the PLC settings and roller configuration.
Q: How does the hydraulic cutting system ensure precision?
A: The hydraulic cutting system uses high-speed blades and precise measurements controlled by the PLC system to ensure clean cuts without deformation.
Q: What is the lead time for installation?
A: Installation can typically be completed within 1-2 weeks, depending on the machine’s configuration and site readiness.
Q: What after-sales services are provided?
A: Services include installation support, operator training, technical support, and spare parts availability.
Q: Can the machine handle large-scale production?
A: Yes, the machine is designed for high-speed, continuous production, making it suitable for large-scale projects.
Q: Are there any government regulations to consider when operating the machine in Florida?
A: Ensure compliance with Florida’s occupational safety and environmental standards when operating the machine.
Roller Materials: High-grade steel (e.g., GCr15) with hard chrome plating for durability.
Frame Size: Heavy-duty H-beam or cast iron construction for stability.
Power Supply: 220V/380V/480V, 50Hz/60Hz (customizable to Florida’s industrial standards).
Motors: Energy-efficient servo motors for precision and power.

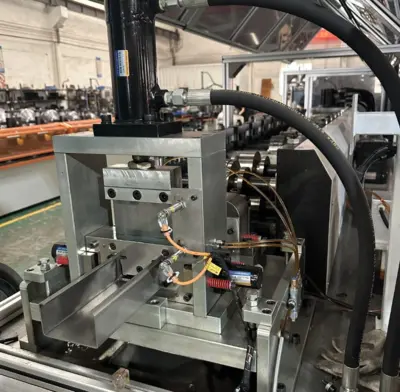

Hydraulic Cutting System: High-speed hydraulic cutting with minimal burrs.
PLC Control System: Programmable Logic Controller (PLC) for automated operation, equipped with a touch-screen interface.
Machine Speed: 30-60 meters per minute (customizable based on requirements).
Profile Sizes:Studs: 35mm-150mm widthTracks: 35mm-150mm widthThickness: 0.5mm-2.0mm
Studs: 35mm-150mm width
Tracks: 35mm-150mm width
Thickness: 0.5mm-2.0mm

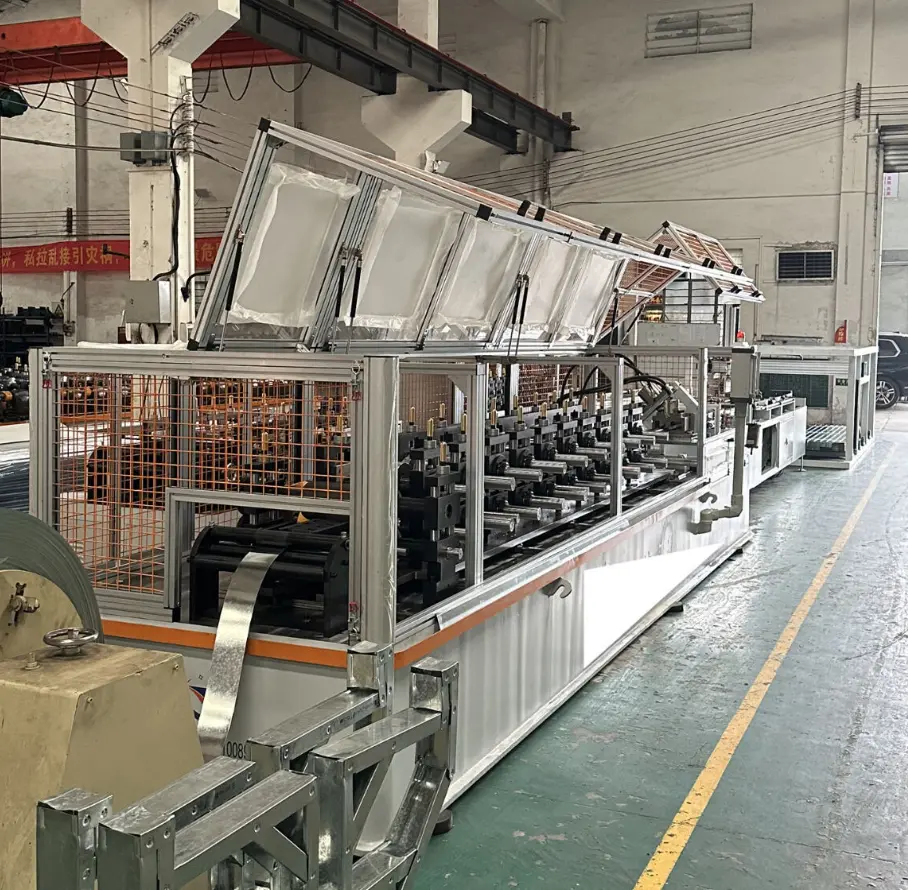

Safety Features: Safety enclosures, emergency stop buttons, and overload protection.
Optional Extras:Automatic stackersRemote PLC monitoring systemCoil car for easy loadingHydraulic uncoilers (5-ton/10-ton capacity)
Automatic stackers
Remote PLC monitoring system
Coil car for easy loading
Hydraulic uncoilers (5-ton/10-ton capacity)
