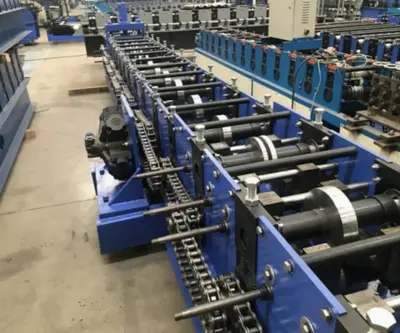

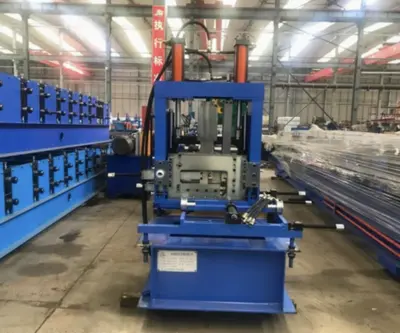

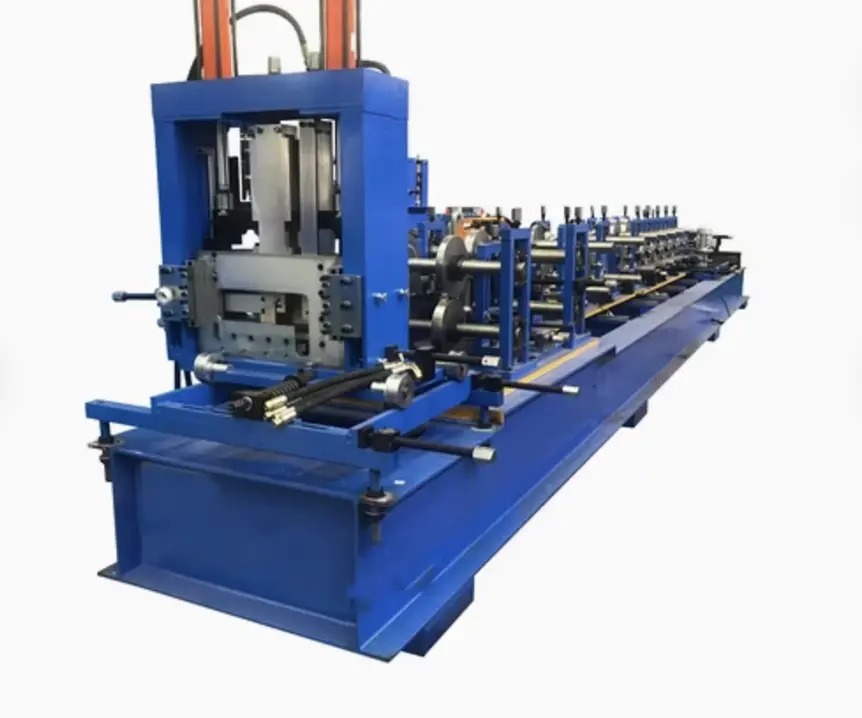

Steel Stud Roll Forming Machine in the USA

Steel stud roll forming machines are specialized industrial equipment designed to produce lightweight steel studs used in construction. These machines are essential for manufacturing the framework for drywall systems, ceilings, and partition walls in residential, commercial, and industrial buildings. By automating the process, these machines ensure precision, efficiency, and high-volume production of uniform steel studs, which are critical for modern construction projects.
Steel stud roll forming machines in the USA are designed to meet stringent quality and safety standards. They are adaptable for various stud sizes, materials, and thicknesses, catering to diverse construction needs. These machines are equipped with advanced technology for precise cutting, punching, and forming.
Frequently Asked Questions
What materials can a steel stud roll forming machine process?
The machine processes materials such as galvanized steel, cold-rolled steel, and stainless steel with thicknesses ranging from 0.5mm to 1.5mm.

How long does it take to set up the machine?
Depending on the complexity of the configuration, setup can take 2-3 hours. Initial installation may take a day with expert assistance.

What is the expected lifespan of the rollers?
With proper maintenance, chrome-plated GCr15 rollers can last up to 8-10 years.

Can this machine produce custom-sized studs?
Yes, the machine is highly adaptable and can be configured to produce various stud sizes and profiles.

What is the lead time for delivery in the USA?
Delivery times typically range from 4 to 6 weeks, depending on customization requirements.

Is technical support available in the USA?
Most suppliers offer remote and on-site technical support, along with training for operators.

What is the average cost of a steel stud roll forming machine in the USA?
Prices range from $40,000 to $80,000, depending on the specifications and additional features.

How is maintenance handled for this machine?
Regular maintenance involves cleaning, lubrication of moving parts, and periodic inspection of rollers and the PLC system. Manufacturers usually provide a maintenance guide.

Roller Materials:Material: High-grade steel (e.g., GCr15)Hardness: HRC 58-62Coating: Chrome-plated for durability and corrosion resistance
Material: High-grade steel (e.g., GCr15)
Hardness: HRC 58-62
Coating: Chrome-plated for durability and corrosion resistance
Frame Size:Rigid and heavy-duty frame for stabilityTypical dimensions: 1500mm (height) x 2000mm (length) x 800mm (width)
Rigid and heavy-duty frame for stability
Typical dimensions: 1500mm (height) x 2000mm (length) x 800mm (width)
Motor and Power:Main motor: 5-15 kW (customizable based on production speed)Hydraulic power: 4-7.5 kWVoltage: 220V/380V/440V, 50/60 Hz
Main motor: 5-15 kW (customizable based on production speed)
Hydraulic power: 4-7.5 kW
Voltage: 220V/380V/440V, 50/60 Hz
Production Speed:Standard speed: 30-50m/minAdjustable speed for various profiles
Standard speed: 30-50m/min
Adjustable speed for various profiles
PLC System:Brand: Siemens, Panasonic, or MitsubishiInterface: Touchscreen for easy operation
Brand: Siemens, Panasonic, or Mitsubishi
Interface: Touchscreen for easy operation
Cutting System:Hydraulic cutting with precise die setsMaterial: Cr12 steel, heat-treated
Hydraulic cutting with precise die sets
Material: Cr12 steel, heat-treated
Punching System:Hydraulic punching with optional notchingAdjustable for various hole sizes and patterns
Hydraulic punching with optional notching
Adjustable for various hole sizes and patterns
Profile Dimensions:Adjustable to produce stud widths from 50mm to 150mmThickness: 0.5mm - 1.5mm (customizable)Material: Galvanized steel, cold-rolled steel, or stainless steel
Adjustable to produce stud widths from 50mm to 150mm
Thickness: 0.5mm - 1.5mm (customizable)
Material: Galvanized steel, cold-rolled steel, or stainless steel
Safety Features:Safety guards and enclosuresEmergency stop buttonOverload protection system
Safety guards and enclosures
Emergency stop button
Overload protection system
Extras:Automatic stackerRemote PLC operationUncoilers and recoilers
Automatic stacker
Remote PLC operation
Uncoilers and recoilers
