Hydraulic pump
3kw
Power for servo motor
1.5kw servo motor
Forming speed(m/min)
0-40m(without punching )
0-30m(with punching)
Forming stations
10stations
Material of rollers
Cr12
Thickness of structure
25mm
Forming shaft diameter(mm)
40
Drive
Gear
Type of cutting
Hydraulic cutting and no-stop
Control system
PLC control
Install dimension(depend on the final design)
3.8m×0.6m×1.2m
Total weight (Approx)
2.3T
Screen
Text screen /touch screen

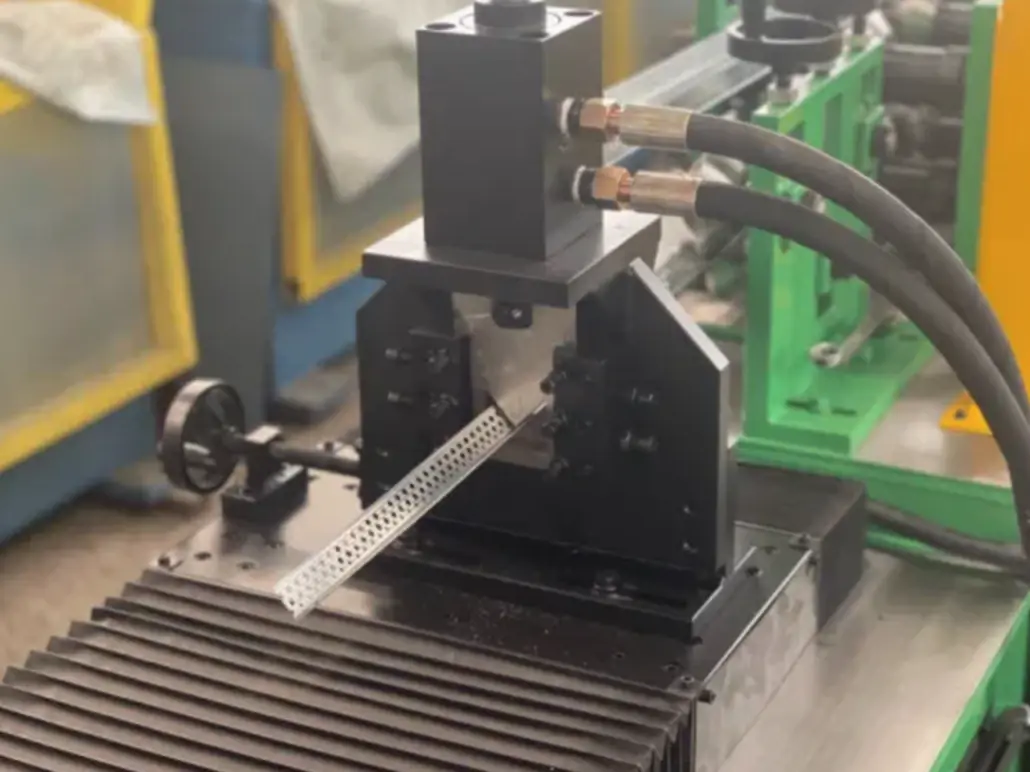

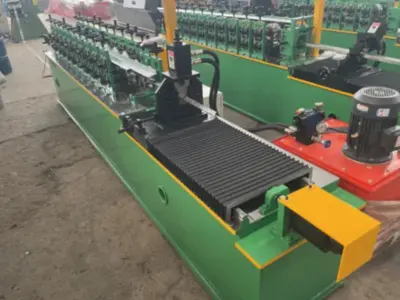

A Steel Frame Drywall Corner Bead Roll Forming Machine is a specialized piece of equipment used in the construction industry to produce corner beads, which are essential for drywall installations. These corner beads provide reinforcement and a clean edge for drywall corners, ensuring durability and a smooth finish. Here's an overview of the features and benefits typically associated with such a machine:
Key Features:
High-Speed Production: These machines are capable of producing large quantities of corner beads in a short time, making them ideal for high-volume production environments.
Customization: They can be adjusted to produce different types of corner beads with various profiles, lengths, and thicknesses based on customer needs.
Precision Rollers: The machine uses precision rollers to shape steel or galvanized metal into the desired profile, ensuring accurate and consistent production.
Automatic Feeding and Cutting: Modern machines often come with automatic material feeding and cutting systems, increasing efficiency and reducing manual labor.
Durable Construction: The machine itself is built from high-quality materials to handle the demands of continuous production.
PLC Control System: Many machines are equipped with PLC (Programmable Logic Controller) systems for easy operation and programming of production settings.
Energy Efficiency: Newer models focus on reducing energy consumption while maintaining high performance.
Benefits:
Cost-Effective Production: By using roll forming technology, manufacturers can significantly reduce material waste and labor costs.
Consistency: Roll forming machines provide uniformity in product dimensions, ensuring all corner beads are of high quality.
Versatility: These machines can work with a variety of materials, including galvanized steel, stainless steel, or aluminum, depending on the requirements.
Low Maintenance: Modern designs focus on reliability and minimizing downtime due to maintenance.
