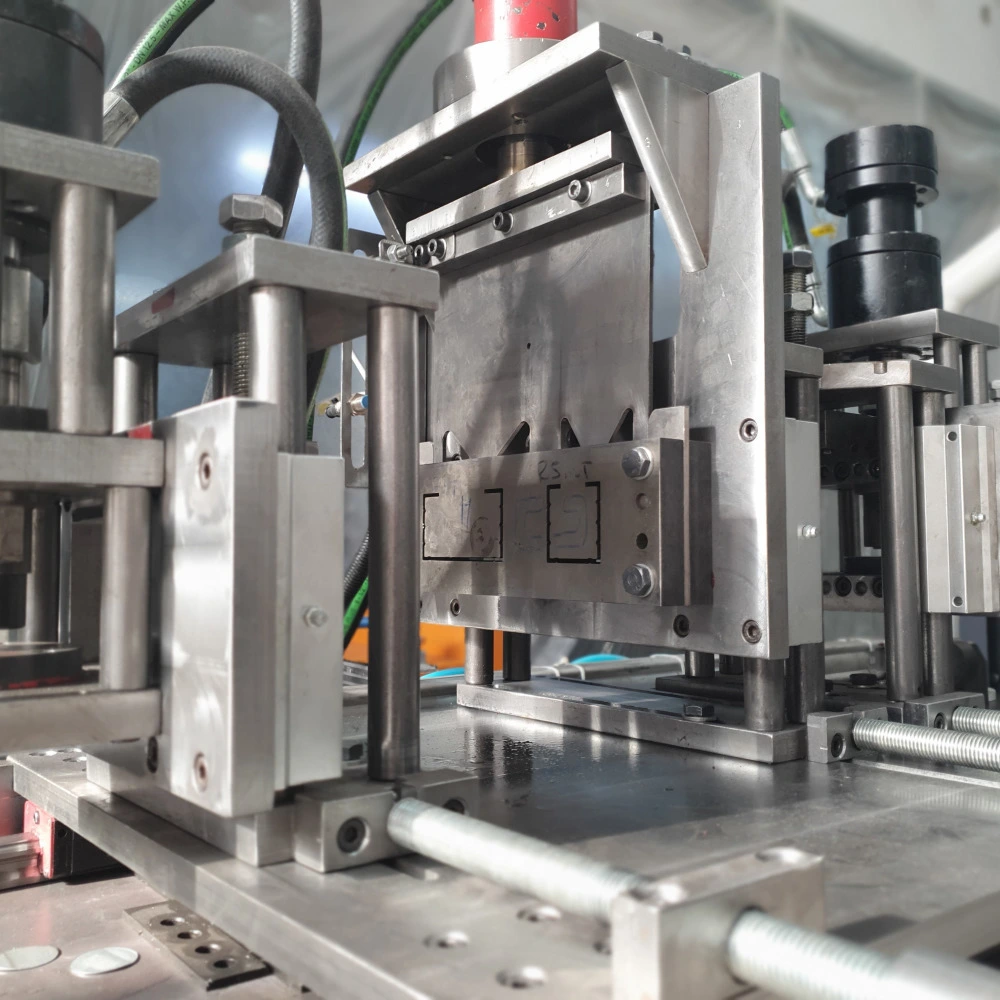

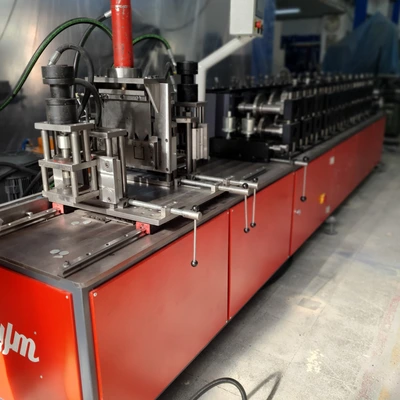

Drywall Profile Roll Forming Machine in Istanbul, Turkey

DRYWALL PROFILE PRODUCTION LINE WITH 12 STATIONS
Gypsum board profiles have a wide range and vary in model and size from country to country. There are 8 plasterboard profiles that are accepted as standards worldwide and these are Knauf brand products. These 8 profiles have size differences among themselves: Ceiling C, Ceiling U, Wall C and Wall U.
In the 12-Station Gypsum Board Profile Production Line, 8 standard gypsum board profiles can be produced by changing the mold. We can revise our production lines according to customer demands and provide new designs. Based on this, we can also offer plasterboard profile lines as double-sided production lines.
DEcoiler WEIGHT CAPACITY
1 TONNE

ROLL FORM PRODUCTION SPEED
30-35 meters/minute

THICKNESS CAPACITY
0.30 – 1mm

BAND WIDTH
200mm

MOTOR POWER
11 kW

CUTTING TYPE
Hydraulic Cutting

PACKAGING TABLE
With pneumatic shooter and conveyor
