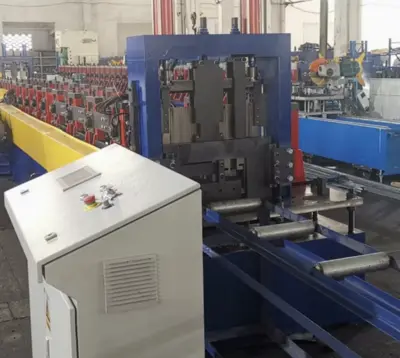

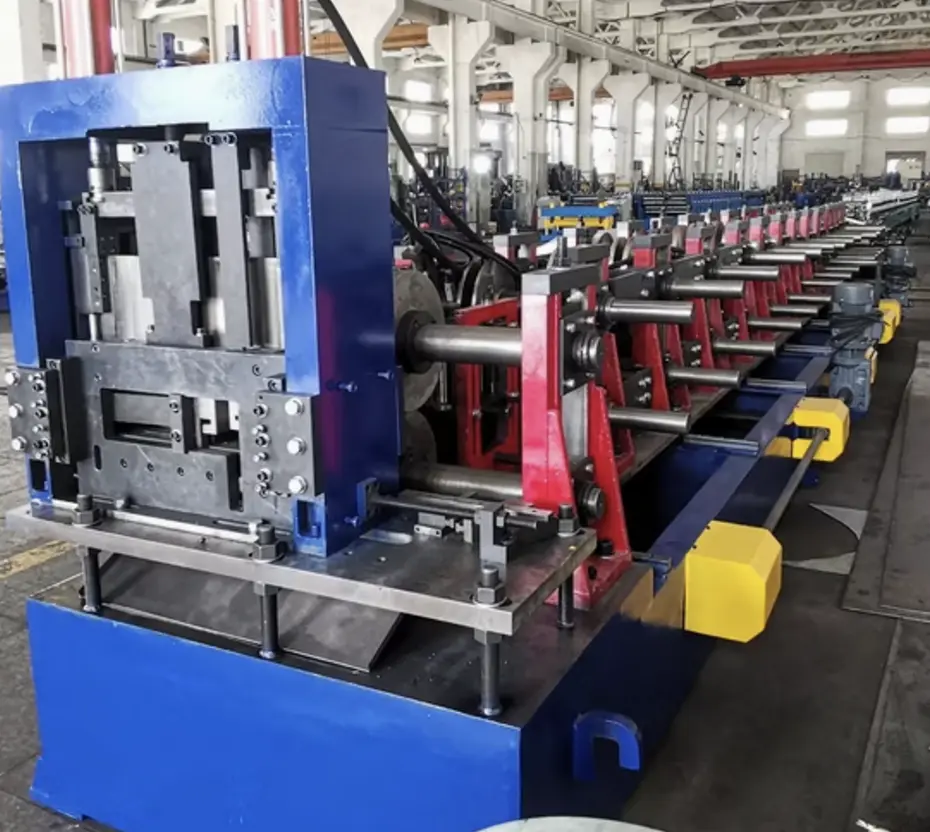

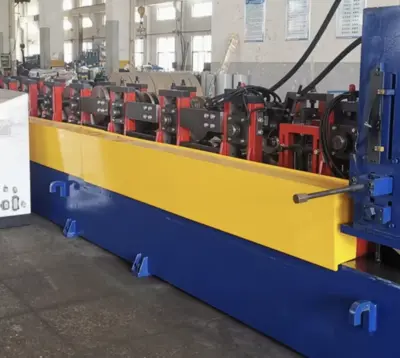

Z Purlin Roll Forming Machine Tunisia

The Z Purlin Roll Forming Machine is a specialized piece of equipment designed for manufacturing Z-shaped purlins, which are essential structural components used in building construction, particularly for roofing and wall support. The machine transforms metal coils into precise Z profiles, offering high efficiency, accuracy, and customization to meet the construction industry's diverse needs.
Z purlins are widely utilized in Tunisia due to their lightweight structure, durability, and cost-effectiveness in creating strong frameworks for warehouses, industrial facilities, and commercial buildings.
Advantages of Z Purlin Roll Forming Machines
Customization: Easily adjustable to produce different sizes of Z profiles.

High Precision: Ensures accurate dimensions and consistent quality.

Efficiency: High-speed operation reduces production time.

Cost-Effectiveness: Minimizes material waste with precise cutting and punching.

Durability: Built with robust materials for long-lasting performance.
Z Purlin Applications in Tunisia
Z purlins are extensively used in the following areas:
Warehouses and storage facilities
Industrial buildings and factories
Commercial buildings
Agricultural structures such as barns and greenhouses
Question and Answer Section
Q1. Can the Z Purlin Roll Forming Machine produce multiple sizes of Z profiles?
A: Yes, the machine is adjustable to produce various Z profile sizes, making it highly versatile for different construction needs.
Q2. What is the average production speed of the machine?
A: The machine can produce at a speed of 15–30 meters per minute, depending on material thickness and profile size.
Q3. Is the machine compatible with Tunisia’s power supply standards?
A: Yes, the machine’s voltage and frequency can be adapted to meet Tunisia’s power requirements (typically 380V/50Hz).
Q4. What materials can be used with this machine?
A: The Z Purlin Roll Forming Machine works with galvanized steel, hot-rolled steel, and cold-rolled steel, with thicknesses ranging from 1.5–3.0 mm.
Q5. Are there any additional accessories available?
A: Yes, optional accessories include automatic stackers, remote PLC monitoring systems, and hydraulic uncoilers for improved efficiency.
Q6. What maintenance is required for the Z Purlin Roll Forming Machine?
A: Regular maintenance includes lubricating moving parts, checking the rollers for wear, and ensuring the PLC system and electrical components are functioning properly.
Q7. How long does installation and setup take?
A: Installation and setup typically take 2–4 days, depending on the machine configuration and site conditions.
Q8. Is operator training available?
A: Yes, training can be provided to ensure operators are well-versed in machine operation and safety protocols.

Raw Material:Material Type: Galvanized steel, hot-rolled steel, or cold-rolled steelMaterial Thickness: 1.5–3.0 mmMaterial Width: Varies based on required profile
Material Type: Galvanized steel, hot-rolled steel, or cold-rolled steel
Material Thickness: 1.5–3.0 mm
Material Width: Varies based on required profile
Machine Components:Rollers: High-grade steel (usually GCr15), hardened and polished for longevityCutting System: Hydraulic cutting for clean and burr-free cutsPunching System: Hydraulic punching with customizable hole sizes and patternsMotor: Servo motor for high precision and energy efficiencyPLC System: User-friendly touchscreen control for operation and programming
Rollers: High-grade steel (usually GCr15), hardened and polished for longevity
Cutting System: Hydraulic cutting for clean and burr-free cuts
Punching System: Hydraulic punching with customizable hole sizes and patterns
Motor: Servo motor for high precision and energy efficiency
PLC System: User-friendly touchscreen control for operation and programming
Profile Specifications:Width: Customizable based on client requirementsHeight: Adjustable from 80–300 mmFlange Width: 40–80 mmLip Size: 10–20 mm
Width: Customizable based on client requirements
Height: Adjustable from 80–300 mm
Flange Width: 40–80 mm
Lip Size: 10–20 mm
Machine Speed:Production Speed: 15–30 meters per minute
Production Speed: 15–30 meters per minute
Power Requirements:Voltage: 380V/50Hz (can be adapted for Tunisia's power standards)Total Power: Approx. 15–25 kW
Voltage: 380V/50Hz (can be adapted for Tunisia's power standards)
Total Power: Approx. 15–25 kW
Dimensions:Length: 8–12 meters (varies based on configuration)Weight: Approx. 8–12 tons
Length: 8–12 meters (varies based on configuration)
Weight: Approx. 8–12 tons
Optional Features:Automatic stacker for collecting finished purlinsRemote PLC monitoring systemHydraulic uncoiler for efficient coil feeding
Automatic stacker for collecting finished purlins
Remote PLC monitoring system
Hydraulic uncoiler for efficient coil feeding
