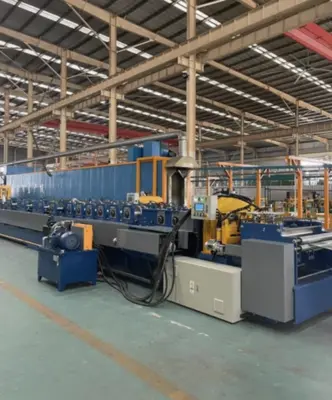

The Z purlin roll forming machine is a specialized equipment used to manufacture Z-shaped steel purlins, a critical component in modern construction and infrastructure projects. Z purlins provide support for roofs and walls in industrial, commercial, and residential buildings. This roll forming machine is designed for high-speed, precision production of Z purlins in various sizes and thicknesses, ensuring durability and conformity to industry standards.
Key Features:
Customizable Profiles: Adjustable to produce Z purlins of different widths, heights, and thicknesses.
Efficient Operation: High production speed with minimal manual intervention.
Durable Construction: Built with heavy-duty steel frames and rollers for long-term reliability.
Precision Engineering: Delivers consistent and accurate profiles with smooth finishes.
Automation Integration: Equipped with advanced PLC systems for streamlined operation and real-time monitoring.
Versatility: Can produce Z purlins in multiple material gauges and finishes.
Advantages of Z Purlin Roll Forming Machines
Cost-Effective: High production efficiency reduces labor and operational costs.
Customizable Design: Easily adjustable to meet specific project requirements.
Consistency: Ensures uniform Z purlin profiles with high dimensional accuracy.
Durable Output: Produces profiles with excellent mechanical strength and corrosion resistance.
Reduced Downtime: Robust construction minimizes maintenance needs.
Setup and Installation Process
Site Preparation: Ensure sufficient space and stable power supply.
Machine Placement: Position the machine on a level surface.
Power and Hydraulic Connections: Connect the machine to the designated power source and hydraulic unit.
Calibration: Adjust rollers and cutting systems for the desired Z purlin size.
Trial Run: Test the machine with a sample coil to ensure accuracy and smooth operation.
Full Production: Begin production after confirming all settings and adjustments.
Maintenance Requirements
Regular Cleaning: Remove debris and residual material after each production cycle.
Lubrication: Apply lubricant to moving parts and hydraulic systems periodically.
Roller Inspection: Check for wear and ensure rollers maintain their precision alignment.
Electrical Components: Inspect the PLC system and wiring for any faults.
Blade Sharpening: Maintain the sharpness of hydraulic cutting blades.
Question and Answer Section
Q1: What materials can the Z purlin roll forming machine handle?
A: The machine is designed to process galvanized steel, mild steel, stainless steel, and aluminum in thicknesses ranging from 1.5 mm to 3.0 mm.
Q2: How do I adjust the machine for different Z purlin sizes?
A: The machine features an adjustable roller system and PLC-controlled settings, allowing quick changes to width, height, and thickness.
Q3: Can this machine operate in regions with different power specifications?
A: Yes, the machine’s voltage can be customized to match the regional power supply (e.g., 380V, 50Hz or 440V, 60Hz).
Q4: What is the typical production speed of the machine?
A: The machine can produce Z purlins at a speed of up to 20–30 meters per minute, depending on the material and profile dimensions.
Q5: What safety features are included?
A: The machine is equipped with emergency stops, safety guards, and operational alarms to ensure safe operation.
Q6: How often should maintenance be performed?
A: Basic cleaning and lubrication should be done after every production run, while a detailed inspection should occur monthly.
Q7: Is it possible to integrate additional features like remote monitoring?
A: Yes, optional extras like remote PLC systems and automated stackers can be integrated for enhanced functionality.
Q8: What is the delivery time for a Z purlin roll forming machine?
A: Delivery time varies but typically ranges from 45 to 60 days after order confirmation, depending on customization requirements.

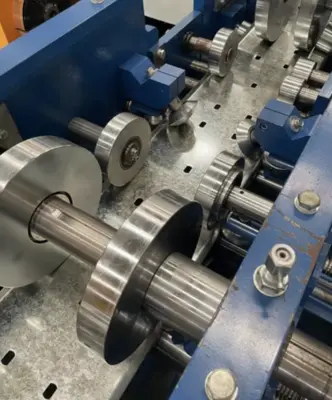

Roller Material: High-grade chromium steel (Cr12), heat-treated for durability.
Frame Structure: Heavy-duty steel frame for stability and vibration reduction.
Thickness Range: 1.5 mm to 3.0 mm (customizable for specific applications).
Profile Sizes: Width: 80–300 mm; Height: 40–100 mm (adjustable)
Material Type: Galvanized steel, mild steel, stainless steel, and aluminum.
Motor Power: 11–15 kW main motor, 5.5 kW hydraulic motor for cutting.
PLC Control System: Mitsubishi, Siemens, or Delta PLC with a touch screen interface.

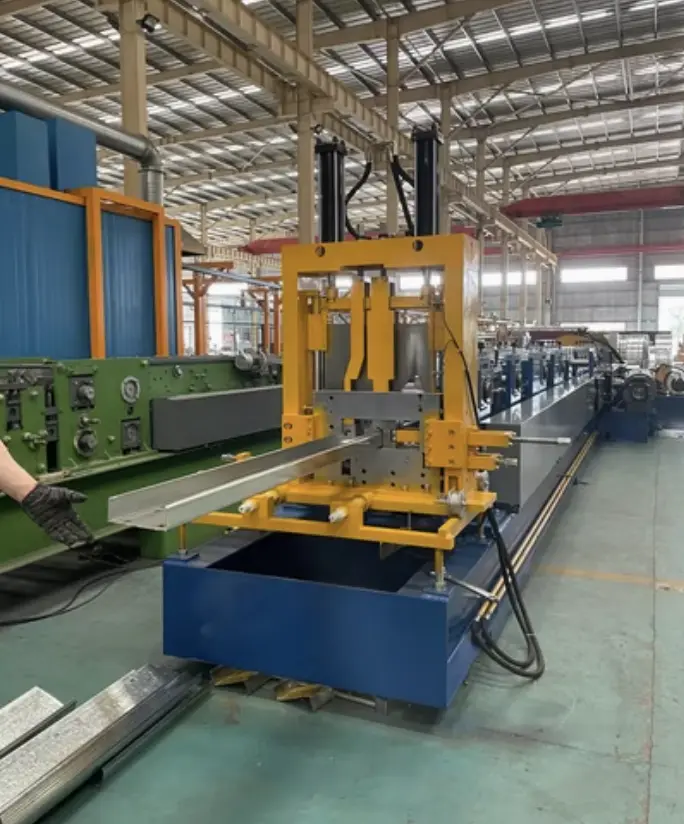

Cutting System: Hydraulic cutting with Cr12Mov steel blade for precise and burr-free cuts.
Machine Speed: Up to 20–30 meters per minute, depending on the profile size and material.
Voltage: Customizable (e.g., 380V, 50Hz; 440V, 60Hz) to match regional requirements.
Forming Stations: 14–20 forming stations for high precision.
Coil Width: 200–600 mm
Decoiler Capacity: 5–10 tons
Safety Features: Emergency stop, safety guards, and operational alarms.
