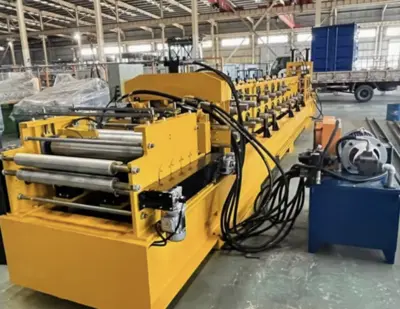

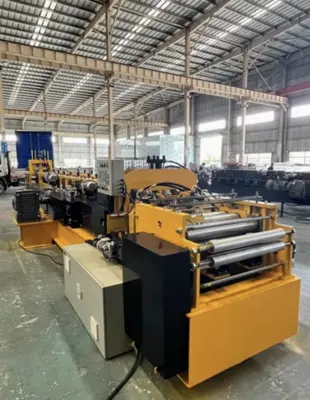

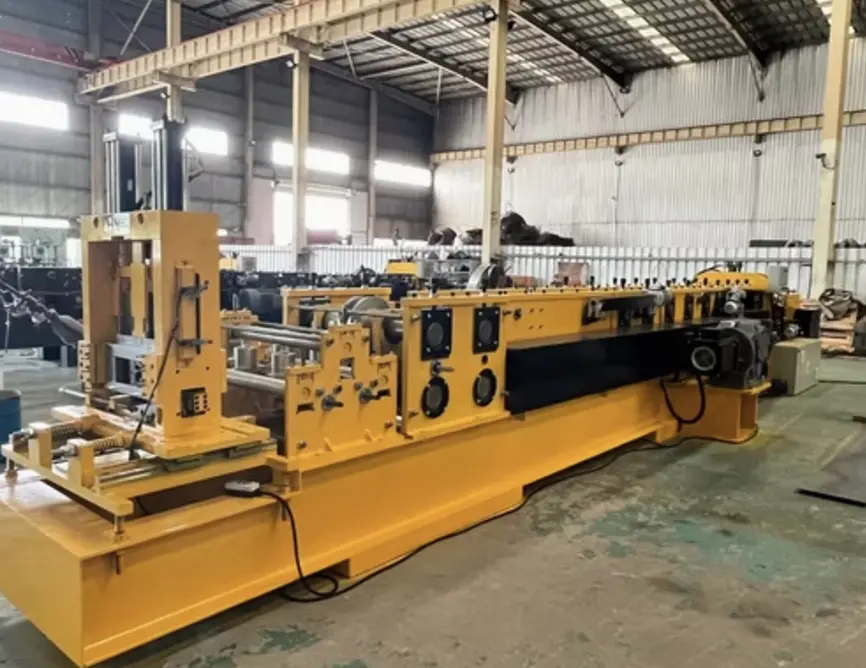

Z Purlin Roll Forming Machine in the USA

A Z Purlin Roll Forming Machine is a specialized industrial machine designed to produce Z-shaped purlins, a critical structural component used in building frameworks. These machines efficiently transform metal coils into precise Z-shaped profiles through a series of rollers and processes, ensuring uniformity, durability, and adherence to design standards.
The Z purlins manufactured by this machine are widely used in industrial, commercial, and residential construction to support roofs and walls. They offer versatility in applications due to their high strength-to-weight ratio and ease of installation.
Key Features
High Efficiency: Capable of continuous production with minimal downtime.

Customizable Profiles: Easily adjustable to produce various sizes of Z purlins without replacing rollers.

Durable Construction: Built with robust materials to ensure long operational life.

Automated Control System: Equipped with a PLC (Programmable Logic Controller) for precise operation and easy parameter adjustments.

Compatibility with US Standards: Designed to meet American industry standards, ensuring compatibility with local construction practices.
Applications
Roofing and Wall Frameworks: Used as support for roof panels and wall cladding.

Industrial Sheds and Warehouses: A key component in structural frameworks.

Solar Panel Mounts: Provides strong bases for solar installations.

Bridges and Highways: Used in smaller structures as support beams.
Question and Answer Section
Q1: What materials can a Z Purlin Roll Forming Machine handle?
A: The machine primarily works with galvanized steel, high-strength steel, and aluminum. It supports thicknesses ranging from 1.5 mm to 3.5 mm, making it versatile for various applications.
Q2: How customizable is the machine for different Z purlin sizes?
A: The machine is highly adjustable, allowing operators to change profile sizes and thicknesses without replacing the rollers. Adjustments can be made quickly using the PLC control system.
Q3: What is the production speed of a typical Z Purlin Roll Forming Machine?
A: The average production speed is 10-20 meters per minute, depending on the material and profile requirements.
Q4: Does the machine meet US electrical and safety standards?
A: Yes, the machine is designed to meet US industrial electrical standards (480V/60Hz) and includes safety guards and enclosures for operator protection.
Q5: Can this machine punch holes in the purlins?
A: Yes, the machine includes a servo-driven hydraulic punching system capable of creating pre-defined hole patterns.
Q6: What optional extras are available for this machine?
A: Options include automatic stackers for finished profiles, remote PLC systems for easier monitoring, coil tippers for loading, and leveling systems to ensure flat sheets before forming.
Q7: What is the expected maintenance for the machine?
A: Regular maintenance includes:
Cleaning and lubricating rollers.
Checking and tightening bolts and screws.
Inspecting the hydraulic system for leaks.
Calibrating the PLC system periodically.
Q8: Can this machine be integrated into an automated production line?
A: Yes, the machine can be integrated with uncoilers, leveling systems, and stackers to form a fully automated production line.

Material Thickness: 1.5 mm to 3.5 mm
Material Type: Galvanized Steel, High-Strength Steel, Aluminum
Profile Width: Adjustable to accommodate various Z purlin dimensions
Roller Material: High-quality GCr15 steel, hardened and chrome-coated for durability
Main Motor Power: 11-22 kW (depending on the machine's capacity and configuration)
Hydraulic Power: 5.5-7.5 kW
Machine Speed: 10-20 m/min
Cutting System: Hydraulic cutting with hardened steel blades for precise and burr-free edges
Punching System: Servo-driven punching unit with die sets for pre-punched holes
Frame Size: Heavy-duty steel frame, approximately 350-450 mm in thickness
Control System: PLC with a touchscreen interface (e.g., Siemens or Mitsubishi)
Dimensions: 10-12 meters long, 1.5 meters wide, and 1.5-2 meters high
Weight: Approximately 10-12 tons
Power Supply Requirements: 380V/50Hz or 480V/60Hz (customizable for US industrial standards)
Optional Extras: Automatic stackers, remote PLC systems, coil tippers, uncoilers, and leveling systems
