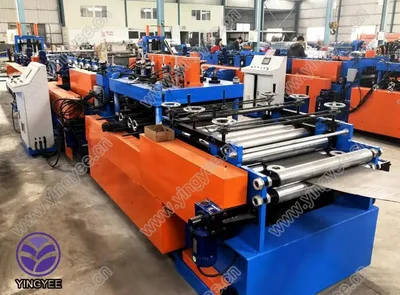

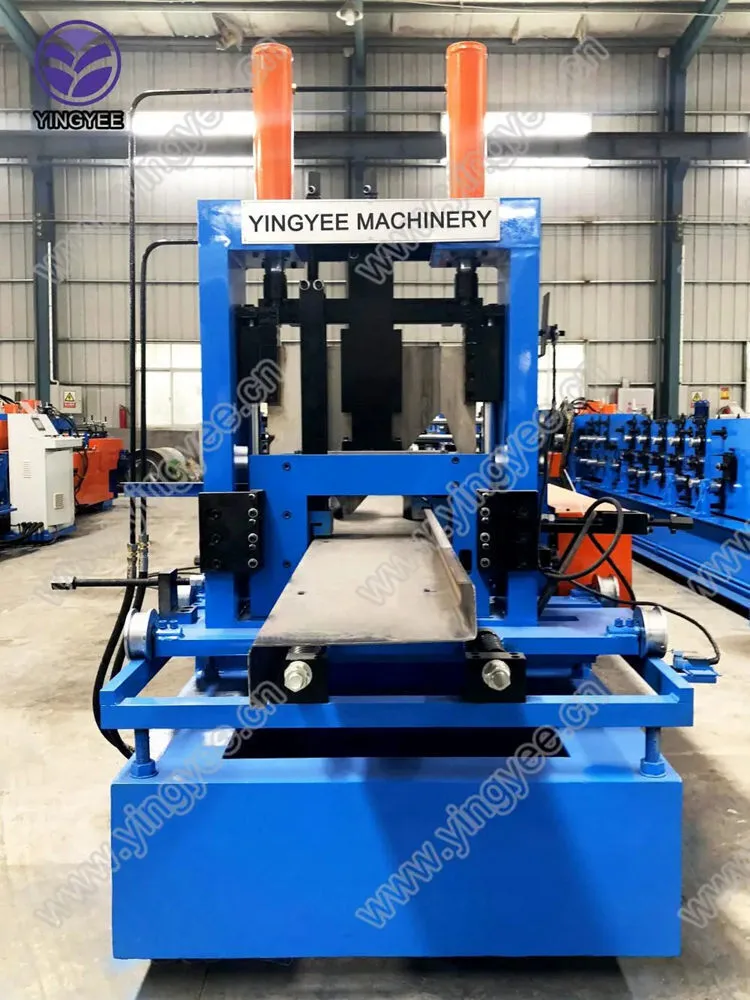

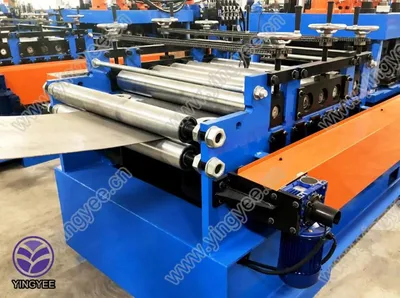

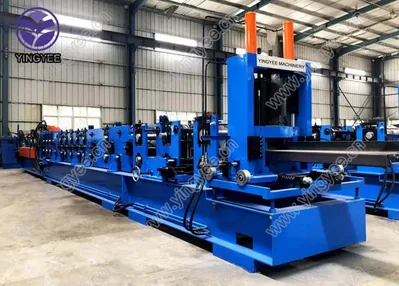

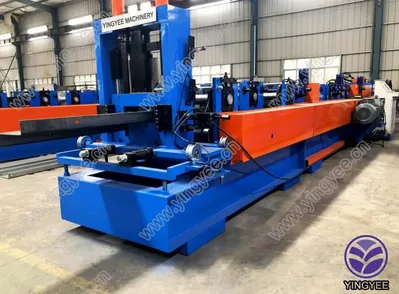

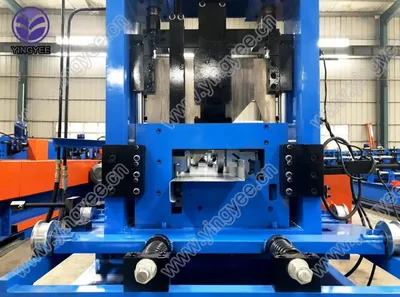

Z Shape Purlin Roll Forming Machine in China

Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Type:Roof Sheet Roll Forming Machine
Cutting Mode:Hydraulic
Voltage:At Customer’s Request
Way Of Driven:Chain Transmission
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
C/Z/U Purlin Roll Forming Machine
Manufacture as customers’ requirements, it is divided into fully automatic, semi-automatic and manual, suitable industrial and civil buildings, warehouses, special constructions, has light weight, high strength, convenient to operate, long working time advantages.
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table
Matching material
Steel coil, Galvanized, PPGI, Aluminum

Material thickness range
According to drawings

Main motor power
15KW

Forming speed
6-8m/min (include punching and cutting time)

Hydraulic power
5.5KW

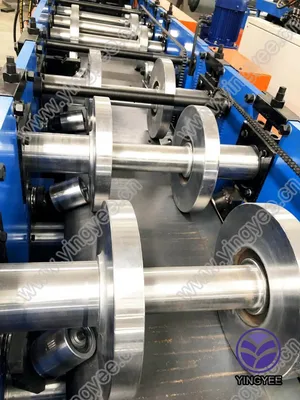

Quantity of rollers
About 18

Shaft diameter and material
70mm, material is 40Cr

Material of rollers
45# steel with chromed

Way of driven
chain transmission

Controlling system
PLC

Voltage
380V/30Phase/50Hz

Total weight
About 10 tons

Size of the machine
L*W*H 10m*1.2m*1.6m
