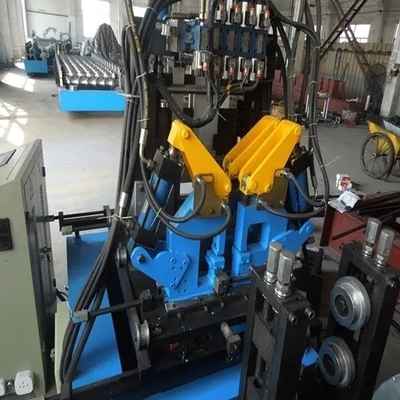

High Precision Z-Purlin Roll Forming Machine in China

Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Type:Roof Sheet Roll Forming Machine

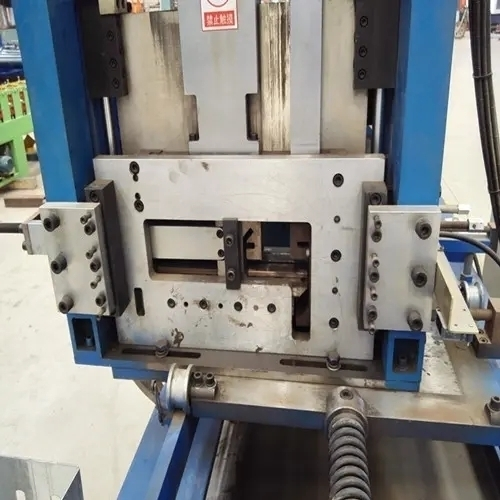

Cutting Mode:Hydraulic
Voltage:At Customer’s Request
Way Of Driven:Chain Transmission
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Matching material
Steel coil, Galvanized, PPGI, Aluminum

Material thickness range
According to drawings

Main motor power
15KW

Forming speed
6-8m/min (include punching and cutting time)

Hydraulic power
5.5KW

Quantity of rollers
About 18

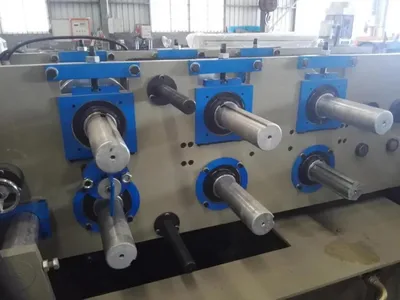

Shaft diameter and material
70mm, material is 40Cr

Material of rollers
45# steel with chromed

Way of driven
chain transmission

Controlling system
PLC

Voltage
380V/30Phase/50Hz

Total weight
About 10 tons

Size of the machine
L*W*H 10m*1.2m*1.6m
