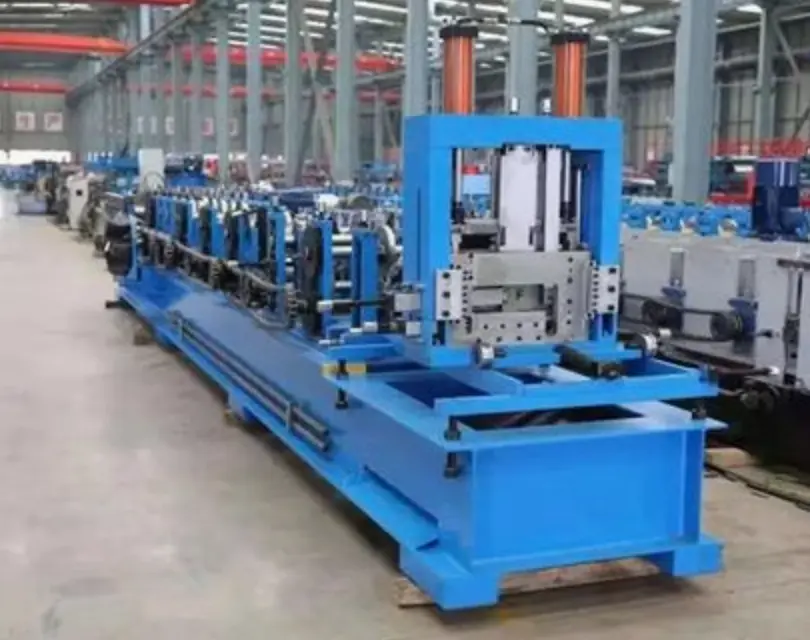

Cee Purlin Roll Forming Machine – United Arab Emirates

Cee Purlin Roll Forming Machine – United Arab Emirates
The Cee Purlin Roll Forming Machine is an advanced and fully automated solution for producing high-strength, precision-formed Cee (C) purlins used in steel structures across the construction, infrastructure, and industrial building sectors in the UAE. Engineered for speed, flexibility, and durability, this machine is custom-built to produce a wide range of C purlin profiles based on your specific requirements.
Whether you are based in Abu Dhabi, Dubai, Sharjah, or anywhere across the UAE, this machine offers unmatched value for companies manufacturing steel framing components, pre-engineered buildings (PEBs), warehouse and industrial building structures, solar mounting systems, and other metal building systems.
Location & Delivery
All machines are new, custom-built, and delivered directly across the UAE, including Abu Dhabi, Dubai, and Sharjah, from our trusted manufacturing partner. They are built to meet your specific profile size, gauge range, and capacity requirements, ensuring maximum production efficiency and compatibility.
Machine Technical Specifications
Specification
Detail

Machine Type
Cee Purlin Roll Forming Machine

Production Speed
10–20 meters/min (standard); up to 30 m/min with high-speed upgrades

Material Thickness Range
1.2 mm – 3.2 mm

Material Width Range
100 mm – 600 mm

Material Types
Galvanized steel, cold-rolled steel, black steel, HR/CR steel

Material Yield Strength
Up to 550 MPa

Roller Material
GCr15 (high-grade bearing steel)

Roller Surface Treatment
Hard chrome plated (for anti-wear and extended life)

Number of Forming Stations
12 – 20 (based on profile design)

Roller Shaft Diameter
75 mm

Shaft Material
40Cr (tempered and quenched for hardness and wear resistance)

Main Drive Type
Gearbox drive system

Power (UAE Specification)
380V / 50Hz / 3-Phase

Motor Power
15 kW (customizable based on profile size and speed)

Cutting Method
Hydraulic post-cut

Blade Material
Cr12MoV (heat-treated for precision and durability)

Control Type
PLC control with touch screen HMI (brands such as Siemens or Delta)

Operating Mode
Fully automatic with manual override

De-coiling System
Manual or hydraulic uncoiler (3T–10T options available)

Punching/Notching System
Optional hydraulic punching unit with custom tooling

Machine Frame
Welded steel frame, stress-relieved

Thickness of Frame Steel
18–25 mm

Profile Shape
Cee Purlin (C-shape)

Profile Width and Depth
Customizable: 80 mm – 300 mm web, 40 mm – 80 mm flange

Length Tolerance
±1.0 mm

Safety Features
Protective covers, emergency stop, overload protection system
Industries & Applications in the UAE
This Cee purlin roll forming machine is an essential piece of equipment in the steel frame building industry, supporting key sectors such as:
Pre-engineered building (PEB) construction

Industrial warehouses and logistic hubs

Carports, awnings, and shelters

Solar panel mounting frames

Cold storage buildings

Agricultural steel structures

Residential and commercial steel framing
Given the UAE's demand for fast-paced construction, infrastructure growth, and renewable energy development (particularly solar), this machine serves as a core asset for fabricators and general contractors.
Frequently Asked Questions
Q: Can the machine be customized for different profile sizes?

A: Yes, the machine is custom-built to your required Cee purlin profile sizes and gauges. Just send us your profile drawings and material specifications for an accurate quote.
Q: Is operator training included with the machine?

A: We provide full setup support, training, and remote assistance during commissioning. On-site support in the UAE is also available upon request.
Q: What is the delivery time to the UAE?

A: Standard production and shipping time is between 45–65 days depending on customization and optional extras.
Q: Can I produce both C and Z purlins on the same machine?

A: A combined C/Z purlin roll forming machine is available if needed. Please specify if dual-profile production is required.
Q: What optional extras are available?

A: Optional extras include automatic stackers, punching units, coil cars, hydraulic uncoilers, remote diagnostics systems, and inverter speed control systems.
Q: What after-sales support is offered in the UAE?

A: One-year warranty included. Machine Matcher also provides maintenance packages, spare parts support, and technical assistance from our regional service partners.
Pricing
Prices start from: Based on base configuration

Final pricing: Determined by profile complexity, thickness range, optional systems, and automation level
For a customized quotation, please send your profile drawing, material specs, and production requirements to:
 [email protected]
