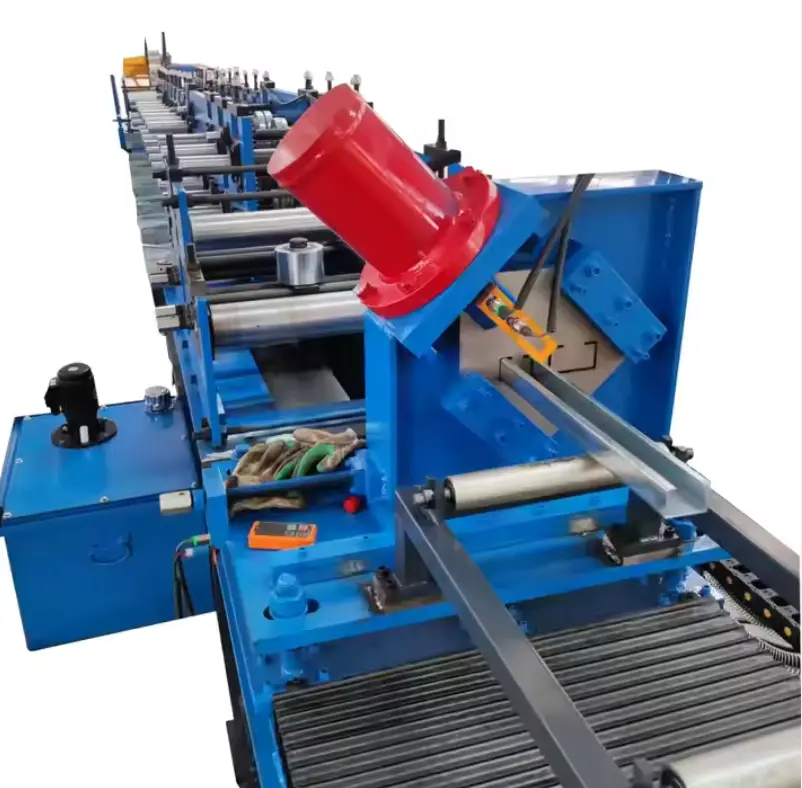

Lipped C-Channel Roll Forming Machine – UAE Supply
Precision Cold-Forming for Structural and Framing Applications
The Lipped C-Channel Roll Forming Machine is a high-precision, heavy-duty forming system engineered for the continuous production of cold-formed C-shaped steel sections with inward-turned edges (lips). Designed to meet the demands of UAE’s fast-paced construction and industrial sectors, this machine supports high-speed production with exceptional profile accuracy, stability, and repeatability.
Whether you're manufacturing steel framing systems, purlins, cable tray supports, rack components, or structural building sections, this roll forming machine delivers quality at scale. It's optimized for the United Arab Emirates market, ensuring compatibility with local power standards, materials, and industrial usage requirements.
Machine Technical Specifications
Machine Type: Lipped C-Channel Roll Forming Machine (Automatic Line)
Production Speed: 15–25 meters per minute (can vary based on material and profile complexity)
Material Thickness Range: 1.0 – 3.0 mm
Material Width Range: 100 – 600 mm (depends on profile design)
Material Types: Galvanized steel, cold rolled steel, mild steel, stainless steel
Material Yield Strength: Up to 350 MPa (customizable for higher KSI steels)
Roller Material: High-grade GCr15 (chromium steel), heat-treated
Roller Surface Treatment: Hard chrome plating for wear resistance
Number of Forming Stations: 16–24 stations (depending on profile depth and lip design)
Roller Shaft Diameter: 70 mm
Shaft Material: Solid 45# steel, precision ground and hardened
Main Drive Type: Gearbox or chain drive (based on load and customer preference)
Power (UAE compatible): 380V, 50Hz, 3-phase (customizable to local requirements)
Motor Power: 15–22 kW (depends on line speed and profile dimensions)
Cutting Method: Hydraulic shear
Blade Material: Cr12Mov, quenched and tempered for long-lasting sharpness
Control Type: PLC automatic control (typically Siemens, Delta, or Mitsubishi)
Operating Mode: Fully automatic with touch screen HMI
De-coiling System: 3–5 ton manual or hydraulic decoiler (optional motorized decoiler available)
Punching/Notching System (if included): Hydraulic pre-punching station with programmable dies
Machine Frame: Welded H-beam steel, stress-relieved for durability
Thickness of Frame Steel: 18–22 mm base plate
Profile Shape: Lipped C-Channel
Profile Width and Depth: Customizable — typical widths from 80mm–300mm, depths from 40mm–100mm, lips 15–25mm
Length Tolerance: ±1.0 mm
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Industries This Machine Is For
The Lipped C-Channel Roll Forming Machine is ideal for:
Pre-engineered building (PEB) manufacturers
Steel frame system producers
Rack and shelving system manufacturers
Cable tray and support frame fabricators
Solar mounting structure manufacturers
Construction and infrastructure firms
UAE’s demand for pre-fabricated construction, lightweight framing, and modular steel structures makes this machine a valuable asset across Dubai, Abu Dhabi, Sharjah, and other industrial zones.
Price & Delivery Information
Prices start from: $65,000 USD (standard configuration)
Final pricing depends on:
Profile dimensions and lip configurations
Thickness and material grade
Optional extras (automatic stackers, notching, coil cars, punching stations, hydraulic decoiler)
Line speed requirements and drive systems
All machines are new and custom-built to meet your specific profile needs. They can be delivered anywhere in the UAE, directly from our trusted manufacturing partners. Support, setup guidance, and one-year warranty coverage are included with every machine.
Get a Custom Quote
To ensure we deliver the most accurate quote for your project, please email your profile drawings, material details, and production goals to [email protected]. Our engineering team will respond with tailored options and pricing.
Frequently Asked Questions (FAQ)
Q: Can this machine produce multiple sizes of C-channels?
A: Yes, the machine can be designed with manual or automatic width/lip adjustment to accommodate multiple sizes.
Q: Is punching included in the machine?
A: Punching and notching can be included as optional hydraulic stations—customized based on your drawing.
Q: What’s the lead time for delivery to the UAE?
A: Standard lead time is 45–75 days depending on complexity and factory schedule. Delivery to UAE ports is arranged by our logistics team.
Q: Do you offer installation and training support in the UAE?
A: Yes. On-site or remote installation support, operator training, and long-term maintenance assistance are all available.
Q: What type of power supply is this machine compatible with?
A: The system is configured for 380V, 50Hz, 3-phase, which is standard in the UAE.
Q: Can the machine be used with high-strength steel (above 350 MPa)?
A: Yes, with proper roller design and upgraded drive systems, we can support steels up to 550 MPa yield strength.
For detailed information, additional drawings, or to start your order, contact the Machine Matcher team today. We are ready to assist customers across the UAE construction and industrial sectors with tailored solutions and full-service support.
