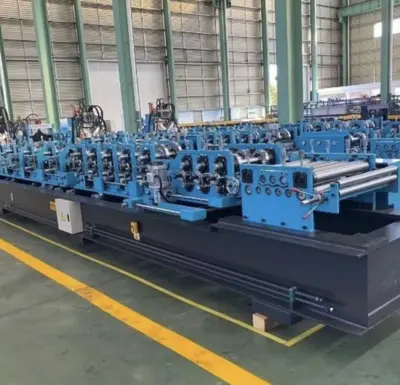

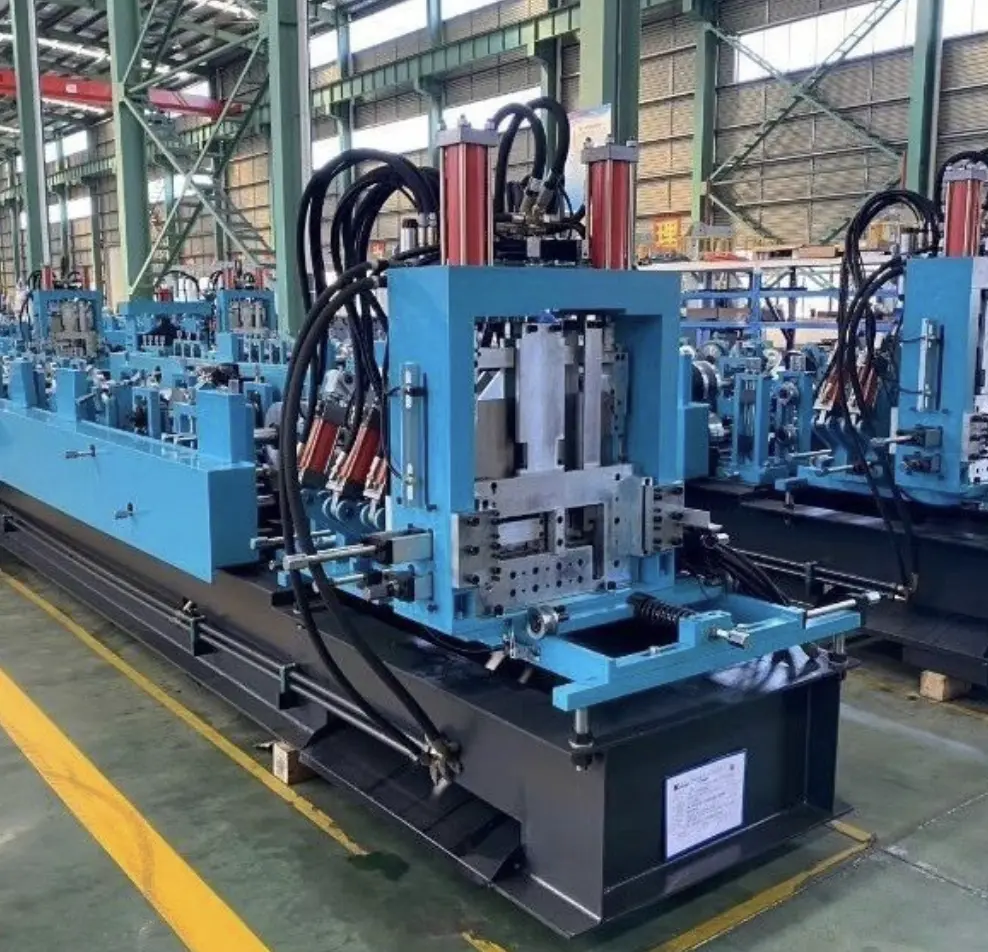

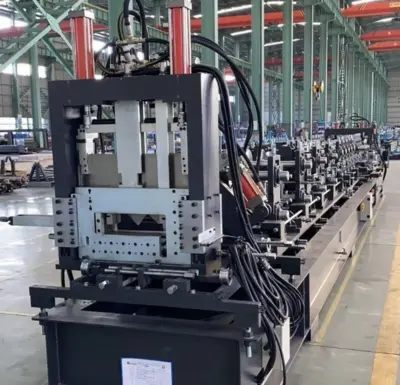

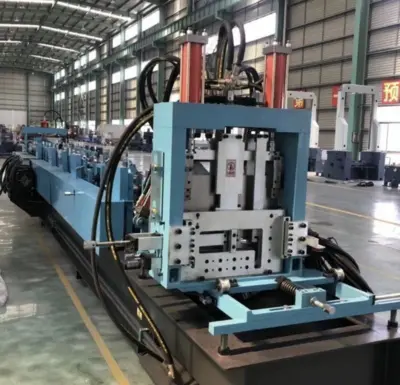

C Channel Roll Forming Machine Arizona USA

C channel roll forming machines are essential equipment for producing high-quality C-shaped channels used across various industries, including construction, automotive, and manufacturing. These machines offer precision, speed, and cost-efficiency, making them an ideal choice for businesses in Arizona that require reliable metal channel production.
Machine Description
A C channel roll forming machine is designed to produce metal channels with a C-shaped cross-section. These channels are widely used as structural components, supports, or framing elements due to their durability and load-bearing capacity. The machine processes metal coils, gradually shaping them through a series of rollers into the desired profile.
Features:
Automated operation for high production efficiency.
Customizable for various sizes and gauges.
Durable construction for long-term use in high-output environments.
Compatibility with different materials, such as steel, aluminum, and galvanized sheets.
Applications:
Roofing and framing systems.
Solar panel supports.
Automotive parts.
Cable trays and other industrial frameworks.
Why Target Arizona Market?
Arizona has a growing construction industry, fueled by residential, commercial, and infrastructure projects. The state's demand for durable and cost-efficient building materials, including C channels for framing and support systems, makes it a lucrative market for roll forming machines.
Benefits for Arizona Buyers:
High productivity to meet construction timelines.
Ability to customize profiles for solar panel supports, a growing sector in Arizona.
Local support for installation, maintenance, and parts.
Questions and Answers Section
Q1: What materials can the C channel roll forming machine handle?
A1: The machine can process galvanized steel, stainless steel, aluminum, and other metal sheets with thicknesses ranging from 0.5 mm to 3.0 mm.
Q2: Can I customize the C channel sizes?
A2: Yes, the machine can be customized to produce various channel sizes and thicknesses to meet specific project requirements.
Q3: Is the machine compatible with Arizona's power supply standards?
A3: Absolutely. The machine can be configured to operate with the U.S. standard power supply of 220V/60Hz or 480V/60Hz, depending on your facility.
Q4: How long does it take to set up the machine?
A4: Installation and setup typically take 3-5 days, depending on the complexity of your production needs and machine configuration.
Q5: What maintenance does the machine require?
A5: Regular maintenance includes lubrication of rollers, inspection of the hydraulic system, and calibration of the cutting mechanism to ensure consistent performance.
Q6: Can I add optional features later?
A6: Yes, optional features such as automatic stackers or remote PLC monitoring systems can be added later as your production scales up.

Roller Material: High-grade steel with hard chrome plating for durability.
Material Thickness: 0.5 mm to 3.0 mm
Material Width: 50 mm to 400 mm (customizable)
Frame Structure: Heavy-duty welded steel frame
Motor Power: 7.5 kW to 22 kW, depending on machine capacity
Hydraulic System Power: 4 kW to 7.5 kW
Cutting Mechanism: Hydraulic cutting with servo motor precision
Control System: PLC with touchscreen interface for easy operation
Machine Speed: 15-30 meters per minute
Profile Length Tolerance: ±1 mm
Safety Features: Enclosed guards, emergency stop button, overload alarms
Optional Features: Automatic stacker, remote PLC monitoring system
