1. Machine Dimensions
Length: 7-10 meters (adjustable based on customization needs)
Width: 1.2-1.5 meters
Height: 1.2-1.5 meters
Weight: 6-10 tons (depending on the steel frame and configuration)
2. Profile Specifications
Material: Cold-rolled steel, hot-dipped galvanized steel, or mild steel
Material Thickness: 1.5 - 4 mm (adjustable depending on market demands)
Width Range: 100-300 mm (adjustable to cover a range of C-channel sizes)
Height of Channel: 40-150 mm
Flange Width: 20-80 mm
Lip Size: 10-25 mm
3. Power Supply and Motor
Main Power Supply: 220V, 50Hz (standard for Egypt)
Main Motor Power: 11-15 kW
Hydraulic Power: 5.5-7.5 kW
Electric Control System: PLC control system with touch-screen interface
Emergency Stop Button: For immediate halting of operations for safety
4. Production Speed
Forming Speed: 8-12 meters per minute (may vary depending on material thickness and complexity of the profile)
Roller Stations: 10-16 forming stations, depending on the required channel complexity and strength
5. Forming and Cutting System
Roller Material: High-quality Cr12Mov or GCr15 steel, heat-treated for durability and rust resistance
Shaft Diameter: 65-85 mm (ensures stability and reduces vibration)

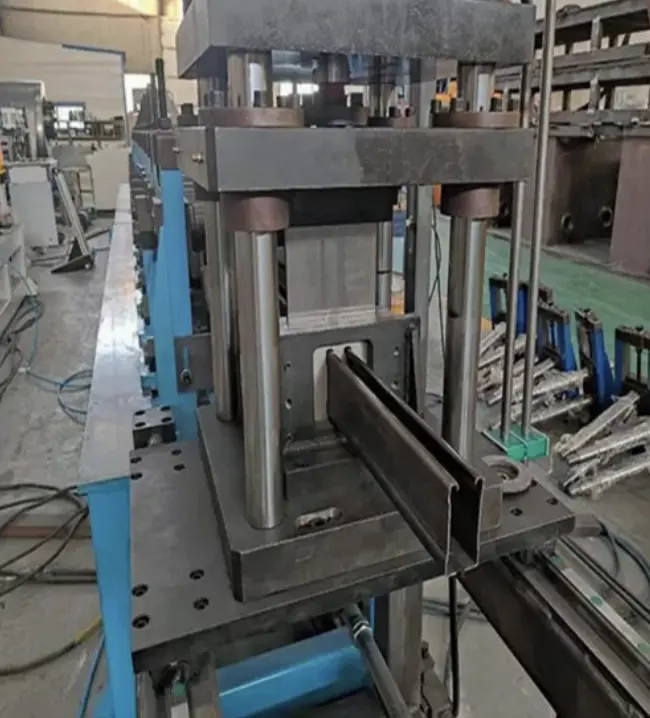

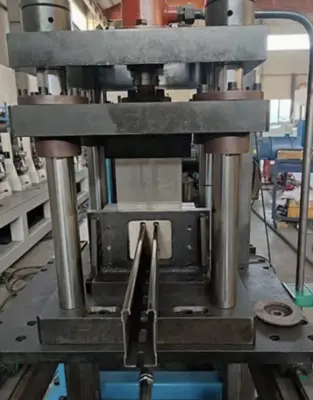

Cutting Mechanism: Hydraulic cutting with Cr12Mov steel blades for high precision and durability
Punching Mechanism: Optional hydraulic punching unit for specific holes, slots, or notches
6. Automation and Control
Control System: PLC (Programmable Logic Controller) with HMI (Human Machine Interface) for user-friendly operation
Software: Equipped with a simple, easy-to-navigate interface for profile adjustments and maintenance tracking
Automation: Automatic material feeding, forming, and cutting to reduce manual intervention
Sensors and Alarms: Safety sensors and alarms to prevent accidents and alert operators of malfunctions
7. Safety Features
Safety Guards: Around moving parts and rollers to prevent accidents
Emergency Stop: Located at accessible points around the machine
Overload Protection: Protects the machine from power surges or excessive load
8. Auxiliary Equipment
Decoiler: 5-10 tons capacity to handle various coil weights
Run-out Table: Adjustable length to support different channel lengths
Cooling System: High-capacity cooling fans for motors and hydraulics, especially useful in Egypt's warmer climate
This configuration provides a balance of durability, efficiency, and adaptability to the Egyptian market. Let me know if you’d like more information on each component or specific supplier recommendations
A C-channel roll forming machine designed for the Egyptian market would need to consider several factors to meet local requirements effectively. Here are some specifications and features that could be valuable:
Key Features and Customizations for Egypt:
Profile Specifications: Ensure that the machine can form C-channels in sizes and thicknesses that meet local construction and infrastructure standards. You might want to offer a range of C-channel sizes since the demand can vary based on different construction applications in Egypt.
Power Supply Compatibility: Egypt's standard power supply is 220V with a frequency of 50Hz. Ensuring the machine is compatible with these standards is crucial for seamless operation. However, some industrial zones may have access to different power configurations, so offering flexibility or customization here could be beneficial.
Robust and Climate-Resistant Design: The Egyptian climate includes high temperatures and can have high dust levels in certain regions. Machines that are dust-resistant, have enhanced cooling systems, and use durable materials will have a longer lifespan and lower maintenance costs.
Production Capacity: For the Egyptian market, a machine with moderate to high production capacity could cater to both large-scale construction projects and smaller applications. A machine that balances speed with precision will be ideal.
After-Sales Support and Training: Offering local support and training can make a big difference in customer satisfaction. You might consider partnering with a local Egyptian representative to provide installation, training, and support.
Automation and Safety Features: Machines with advanced safety features and easy-to-use automation systems will be beneficial, especially as these can appeal to both experienced operators and those newer to the equipment.
Marketing Considerations:
Localized Case Studies: Showcasing successful implementations in Egypt or similar regional markets can be compelling for potential buyers.
Cost-Efficiency: Highlight how your C-channel roll forming machine can reduce material waste, lower energy costs, and improve production efficiency, which is especially attractive in markets with tighter budgets or where energy costs are a concern.
