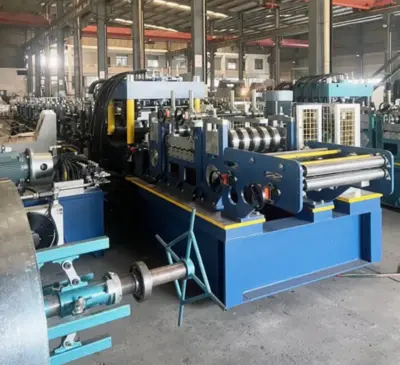

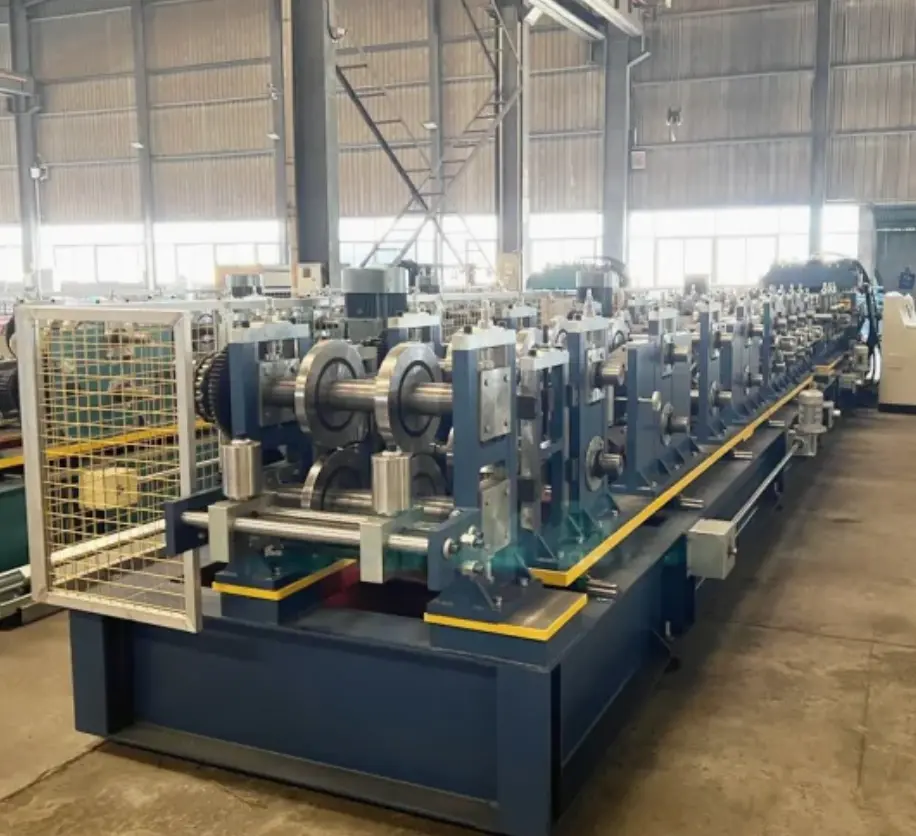

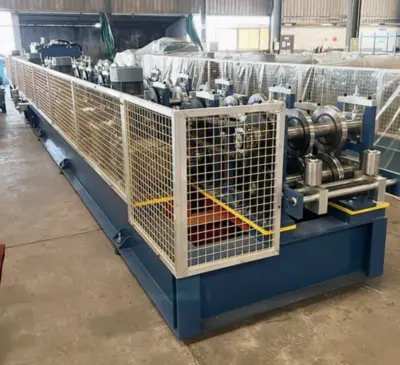

C Purlin Roll Forming Machine in Italy

Customized

Customized

Weight

About 20T

Suiting material

Galvanized coils

Main motor

7.5*3+5.5*1

Shafts diameter

82 or 90 mm

Machine frame

H450

Forming speed

25-30m/min.
Advantage

More 10 years life time

Material thickness

1.5-3.0 or 2.0-4.0mm

Cutting material

Cr12MOV.,Hardness 58-60HRC

Forming rollers qty.

15 stations

Roller Material

Cr12MOV.,Hardness 58-60HRC

Wall thickness

45mm

Transportation

In Containers,suiting for sea and road transmission.

A C purlin roll forming machine is used to manufacture C-shaped purlins, which are commonly used in the construction of steel structures for roofs, walls, and framing systems. These machines typically have the ability to automatically change sizes, making them versatile for various dimensions of C purlins. Here are some key features of a typical C purlin roll forming machine:
Key Features:
Material Input: Galvanized steel, mild steel, or other materials with specific thickness (usually between 1.5mm and 3mm).

Adjustable Size: Capable of producing C purlins of different sizes (width, height, and flange size) without changing the rollers.

High Efficiency: Machines often operate at speeds around 10-15 meters per minute, ensuring fast production.

Hydraulic Cutting System: For precise and smooth cuts of the purlin at the desired lengths.

PLC Control System: User-friendly control panel with programmable logic controller (PLC) for accurate settings and ease of operation.

Punching Options: Some machines are equipped with punching systems to create holes in the purlins for assembly.
Applications:
C purlins are widely used in structural applications, such as:
Roofing systems
Wall support systems
Framing of metal buildings
Industrial and commercial steel buildings
