Model No.:yingyee004
Type:Roof Sheet Roll Forming Machine
Warranty:12 Months
Delivery Time:30 Days
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Way Of Driven:Chain Transmission

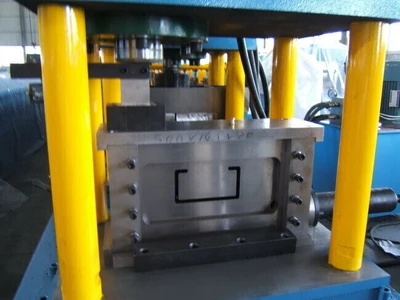

Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Voltage:At Customer’s Request
Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table
Matching material
Steel coil, Galvanized, PPGI, Aluminum
Material thickness range
According to drawings
Main motor power
15KW
Forming speed
6-8m/min (include punching and cutting time)
Hydraulic power
5.5KW

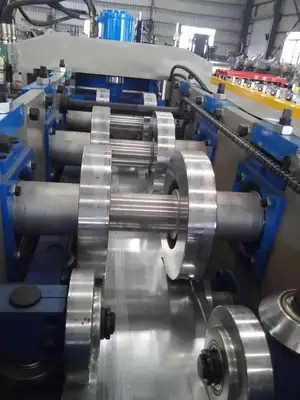

Quantity of rollers
About 18
Shaft diameter and material
70mm, material is 40Cr
Material of rollers
45# steel with chromed
Way of driven
chain transmission
Controlling system
PLC
Voltage
380V/30Phase/50Hz
Total weight
About 10 tons
Size of the machine
L*W*H 10m*1.2m*1.6m
