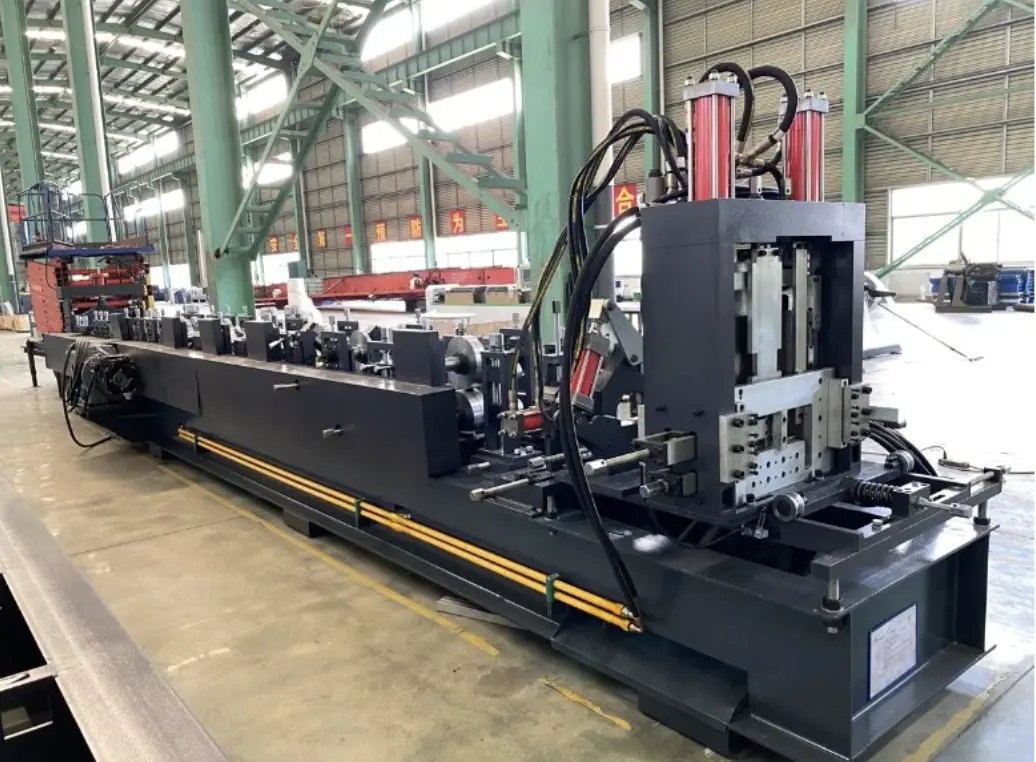

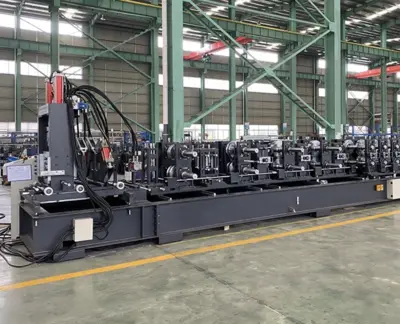

C Purlin Roll Forming Machine in Guatemala

1. Purlin size:80-300mm web, 3.0mm thickness
2. Core components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
3. Dimension(L*W*H): 10M*1M*2M
4. Forming group: 18
5. Control system: PLC
6. Drive: 22.5kw servo drive and reducer
7. Production Capacity: 30m/min
8. Weight: 10tons
9. Roller material: GCr15
10. Hydraulic decoiler: 6 tons capacity

Material
GCr15

Application
Purlin

Package
Product dimension & weight: 10M*1M*2M

Package dimension & weight: 12M*2.3M*2.6M
FCL 40HCX1
