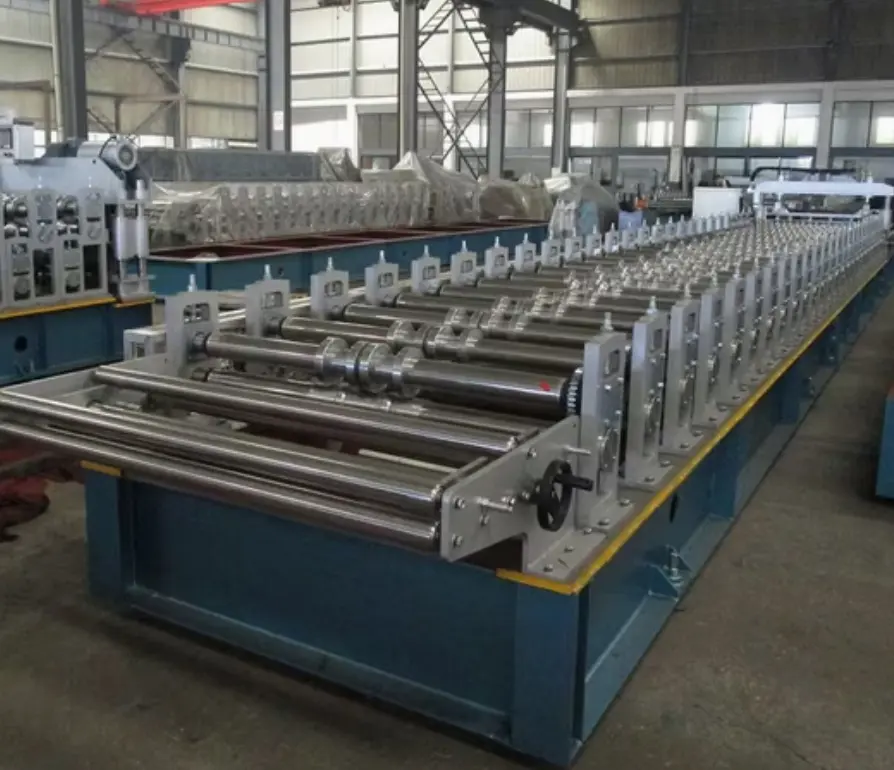

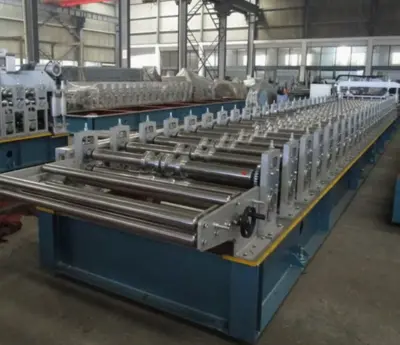

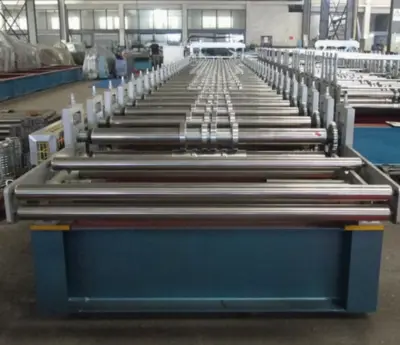

Metal Roof Profiling Roll Forming Machine – Armenia

The Metal Roof Profiling Roll Forming Machine in Armenia is a precision-engineered production line designed to manufacture corrugated, trapezoidal, and rib-type roofing panels from galvanized steel, galvalume, pre-painted coils, or aluminum sheets.
Built for long-term industrial use, this machine combines high-speed forming, durable roller systems, and advanced PLC automation to ensure uniform profiles and minimal material waste. Whether your business supplies roofing contractors, steel building manufacturers, or prefab structure companies, this system delivers the speed and accuracy you need.
At Machine Matcher, all machines are new, manufactured to your exact profile drawing, and configured to the Armenian power system (380V/50Hz/3 Phase). We supply complete turnkey lines, including uncoiler, roll forming stations, hydraulic cutting, PLC control, and stacker options.
Machine Matcher provides global delivery, installation, and 24/7 technical support, ensuring smooth setup and reliable operation across Armenia, Georgia, Azerbaijan, Turkey, and the Middle East.
Machine Technical Specifications
Specification
Details

Machine Type:
Metal Roof Profiling Roll Forming Machine

Production Speed:
15–45 m/min (depending on profile and material)

Material Thickness Range:
0.3–0.8 mm

Material Width Range:
914–1250 mm (customizable)

Material Types:
Galvanized Steel (GI), Galvalume (AZ), Pre-painted Steel (PPGI), Aluminum

Material Yield Strength:
235–550 MPa

Roller Material:
GCr15 bearing steel, heat-treated to HRC 58–62

Roller Surface Treatment:
Hard chrome plated for corrosion resistance

Number of Forming Stations:
16–24 stations (depending on profile depth and width)

Roller Shaft Diameter:
70–85 mm

Shaft Material:
45# precision-ground steel

Main Drive Type:
Chain or gearbox drive

Power (Armenia):
380 V / 50 Hz / 3 Phase

Motor Power:
7.5–15 kW (depending on speed)

Cutting Method:
Hydraulic post-cut system or flying shear

Blade Material:
Cr12MoV, heat-treated for long life

Control Type:
PLC control with HMI touchscreen (Delta, Siemens, or Mitsubishi)

Operating Mode:
Fully automatic with manual backup

De-coiling System:
3–10 ton manual or hydraulic uncoiler

Machine Frame:
350–400 H-beam structure, welded and stress-relieved

Thickness of Frame Steel:
16–20 mm

Profile Shape:
Corrugated, Trapezoidal, Rib, AG Panel, or Custom

Profile Width and Depth:
Width: 800–1100 mm; Depth: 15–35 mm

Length Tolerance:
±1 mm/m

Safety Features:
Emergency stop, overload protection, safety guards

Protective Covers/Guards:
Transparent polycarbonate guards for operator safety

Emergency Stop Button:
Installed on entry, exit, and control panel

Overload Protection System:
Integrated into main motor and hydraulic pump
Optional Add-ons and Upgrades
Hydraulic automatic stacker

Servo feeder and encoder synchronization

Hydraulic punching or notching unit

Remote PLC access and diagnostics (Ewon or PLCRemote)

Coil car and hydraulic coil tilter

Decoiler with pneumatic braking system

Safety enclosures and sound-dampening guards

Quick-change roller system for multiple profiles

Auto-lubrication and roller cleaning system
All machines are custom-built to your profile, fully tested before shipment, and delivered with operator training, maintenance manuals, and technical documentation.
Profile Description
Metal roofing panels are used worldwide for industrial, residential, and commercial roofing due to their strength, weather resistance, and long lifespan. Common profiles include:
Corrugated Panel: Classic wavy design used for roofs and walls.

Trapezoidal Panel: High-rib panel for industrial and commercial roofing.

Rib Panel / AG Panel: Agricultural and general-purpose roofing.

Standing Seam Panel: Architectural roofing systems with concealed fasteners.
Profile Dimensions
Width: 800–1100 mm (after forming)

Depth: 15–35 mm

Material gauge: 0.3–0.8 mm

Coil width: 914–1250 mm
Materials Used
Galvanized steel (GI): Ideal for cost-effective, durable roofing.

Pre-painted steel (PPGI): Provides aesthetic appeal and corrosion resistance.

Galvalume (AZ): Superior resistance in humid and coastal climates.

Aluminum: Lightweight option for specialized buildings.
Industries and Applications in Armenia
In Armenia, metal roof roll forming machines are crucial for projects in:
Residential housing (urban and rural roofing)

Industrial and agricultural buildings

Steel frame construction companies

Infrastructure and warehousing

Prefab housing and modular structures

Solar roofing systems
These machines are widely used by construction firms in Yerevan, Gyumri, and Vanadzor, where metal roofing demand continues to rise for both new developments and refurbishments.
Armenian roofing contractors increasingly prefer locally produced metal roof sheets, as roll forming machines enable on-site production, reducing logistics costs and delivery times.
Setup and Installation
Machine Matcher provides installation manuals, wiring diagrams, and training videos with every delivery. Setup involves:
Positioning the machine on a leveled base.

Connecting the electrical and hydraulic systems.

Running test coils to adjust the rollers and calibrate the PLC.

Conducting sample runs for quality inspection and fine-tuning.
Our engineers offer remote and on-site commissioning throughout Armenia, ensuring fast startup and consistent performance.
Maintenance and Service
To ensure long service life, follow our preventive maintenance plan:
Daily:
Inspect rollers and guides for dirt or metal shavings.

Verify coil feed alignment.
Weekly:
Check hydraulic oil levels and lubrication points.

Clean encoder sensors and photoelectric switches.
Monthly:
Tighten all frame bolts and inspect drive chains.

Test emergency stops and PLC alarms.
Annually:
Inspect and re-align roller stations.

Replace worn blades or hydraulic seals if needed.
Machine Matcher provides remote support, spare parts, and annual maintenance contracts through our 24-hour global technical support desk.
Machine Pricing
Prices vary based on configuration, profile, and automation level.
Machine Level
Features
Approx. Price (USD)

Basic Model
Manual uncoiler, post-cut, basic PLC
$40,000 – $65,000

Mid-Range Model
Hydraulic uncoiler, flying shear, upgraded PLC
$65,000 – $95,000

Advanced Model
Full servo line, automatic stacker, remote PLC
$95,000 – $140,000+
All machines include:
Custom design to your profile

Test video before shipment

Packaging and export documentation

Optional installation and operator training
Contact Machine Matcher for an accurate quotation based on your project requirements.
Countries & Markets Served
Machine Matcher supplies and supports metal roof profiling roll forming machines across:
Armenia

Georgia

Turkey

Azerbaijan

Iran

United Kingdom

United States

Europe, Africa, and Asia
Each system is certified and compliant with international quality and safety standards (CE, ISO) and can be adapted to local voltage and frequency requirements.
Why Choose Machine Matcher
Global machine supply and local service partners

24/7 technical support via PLC remote diagnostics

Machines built to your specific profile

CE and ISO certified manufacturing

Pre-shipment inspection and test reports

Comprehensive after-sales parts and maintenance service

Offices and support in UK, USA, and Middle East
Frequently Asked Questions
Q1: What is a metal roof profiling roll forming machine?

A: It’s a continuous production system that shapes metal coils into roofing panels using multiple roller stations, delivering accurate, repeatable panel designs.
Q2: Can I make different roof panel profiles with one machine?

A: Yes. With interchangeable roller sets or quick-change cassettes, one line can produce multiple panel profiles.
Q3: What materials are suitable for use in Armenia?

A: Galvanized or pre-painted coils are most common due to cost-effectiveness and corrosion resistance in Armenian climates.
Q4: How fast can the machine run?

A: Standard machines operate between 15 and 45 meters per minute, depending on material thickness and profile type.
Q5: How do I install the machine?

A: Machine Matcher provides installation drawings, leveling guides, and remote support. On-site setup assistance is available upon request.
Q6: What after-sales support is available?

A: We offer spare parts supply, remote troubleshooting, maintenance plans, and technician training.
