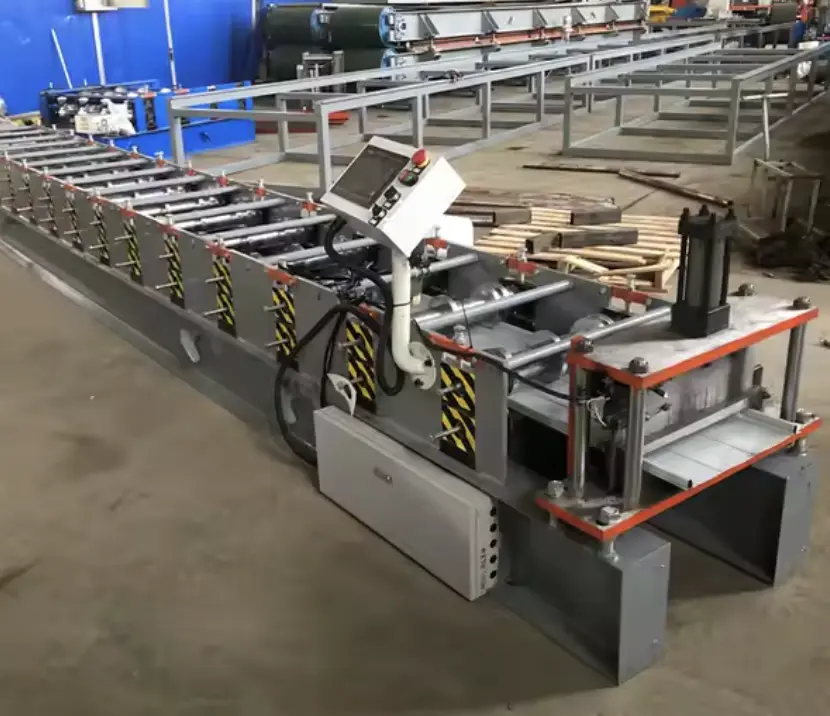

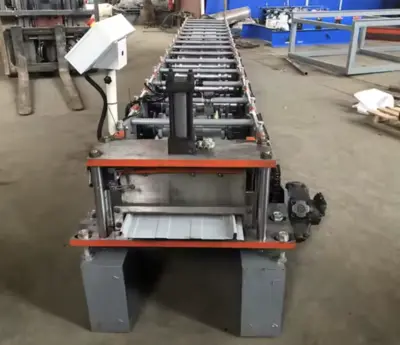

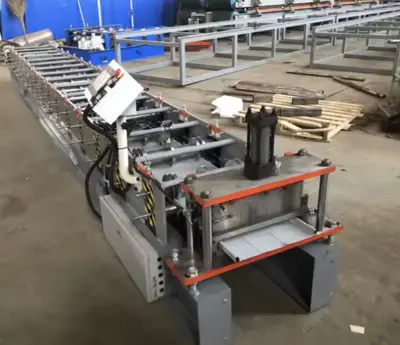

Metal Roof Cladding Sheet Roll Forming Machine – UAE
At Machine Matcher, we proudly supply high-quality Metal Roof Cladding Sheet Roll Forming Machines built to deliver exceptional performance for projects across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah. These machines are new, custom-built to meet your exact profile specifications, and are designed for maximum efficiency, durability, and ease of operation in the demanding building and construction industry.
Whether you’re working on residential, commercial, or industrial buildings, this machine is ideal for producing precise, uniform metal cladding panels used for roofing and wall systems — essential elements for weather protection, thermal insulation, and architectural design.
Machine Technical Specifications
Item
Specification
Machine Type
Metal Roof Cladding Sheet Roll Forming Machine
Production Speed
Up to 15–20 meters per minute
Material Thickness Range
0.3 mm – 0.8 mm
Material Width Range
600 mm – 1250 mm
Material Types
Galvanized Steel, Aluminum, Pre-painted Steel, Galvalume
Material Yield Strength
Up to 550 MPa
Roller Material
High-Grade Steel (Cr12 or GCr15)
Roller Surface Treatment
Hard Chrome Coated for corrosion resistance
Number of Forming Stations
16–24 stations (depending on profile)
Roller Shaft Diameter
70 mm
Shaft Material
Solid 45# Steel, heat-treated
Main Drive Type
Chain Drive or Gearbox Drive
Power for UAE
380V, 50Hz, 3 Phase (customizable)
Motor Power
7.5 kW – 11 kW (depending on requirements)
Cutting Method
Hydraulic Cutting (post-cut)
Blade Material
Cr12Mov (hardened steel)
Control Type
PLC Automatic Control System (brands like Siemens, Delta, or Mitsubishi)
Operating Mode
Full Automatic with touch screen HMI
De-coiling System
Manual or Hydraulic Decoiler (3–5 Ton)
Punching/Notching System
Optional hydraulic punching/notching station available
Machine Frame
Heavy-duty welded H-Beam steel frame
Thickness of Frame Steel
18–22 mm
Profile Shape
Customizable roof and wall cladding profiles
Profile Width and Depth
Based on customer-provided drawings
Length Tolerance
± 2 mm
Safety Features
Full suite of protective devices
- Protective Covers/Guards
Included around moving parts
- Emergency Stop Button
Installed at multiple accessible points
- Overload Protection System
Integrated into electrical system
Machine Usage and Industry Application
The Metal Roof Cladding Sheet Roll Forming Machine is extensively used in the building and construction industry across the UAE. These machines manufacture high-quality panels for:
Residential roofing and siding
Commercial and industrial roof and wall cladding
Warehouses and logistics centers
Agricultural storage facilities
Retail centers and malls
Airports, stadiums, and public infrastructure
Because the UAE experiences intense heat, humidity, and occasional sandstorms, the machine is designed to handle high-strength materials that offer long-lasting protection and aesthetic appeal for modern architecture.
Delivery and Support
Delivery Locations: Abu Dhabi, Dubai, Sharjah, Ajman, Fujairah, Ras Al Khaimah, Umm Al Quwain – and anywhere across the UAE.
Warranty: 1-Year Warranty from dispatch date.
After-Sales Support: Long-term maintenance, repair, and spare parts service available.
Customization: Machines are built to your profile drawings and project specifications.
Contact for Quotes: Email your drawings and requirements to [email protected] for a fast, tailored quotation.
Frequently Asked Questions (FAQs)
Q: Can this machine produce custom roof cladding profiles for UAE building codes?
A: Yes, absolutely. We custom-build each machine according to the specific roof and wall cladding profile you need, based on UAE construction standards or your project-specific requirements.
Q: How fast can the machine operate?
A: The machine can produce panels at speeds of up to 15–20 meters per minute, depending on the material thickness and profile complexity.
Q: What kind of materials can be processed on this machine?
A: This machine can process galvanized steel, galvalume, aluminum, and pre-painted steel — all commonly used materials for roofing and cladding panels in the UAE.
Q: How accurate is the panel length control?
A: Thanks to the PLC control system, the machine maintains a ±2 mm length tolerance, ensuring precise panel lengths every cycle.
Q: Can I get a hydraulic decoiler with this machine?
A: Yes. We offer manual or hydraulic decoilers ranging from 3 to 5 tons capacity, depending on your production needs.
Q: Is installation and training available in the UAE?
A: Yes, installation guidance, remote support, and operator training are available to customers throughout the UAE.
Q: How is the machine protected during operation?
A: The machine includes full protective guards, emergency stop buttons, and an overload protection system to ensure safe operation at all times.
Get a Tailored Offer
If you have specific profile drawings, material types, or special features required, please send all relevant details to [email protected]. Our team will review your needs and provide a customized quotation designed to suit your project.
Note: Pricing varies depending on customization options, motor sizes, decoilers, stackers, punching stations, and other features selected.
