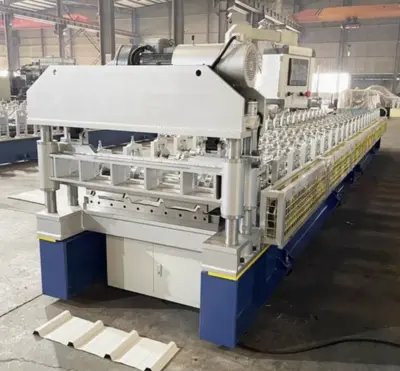

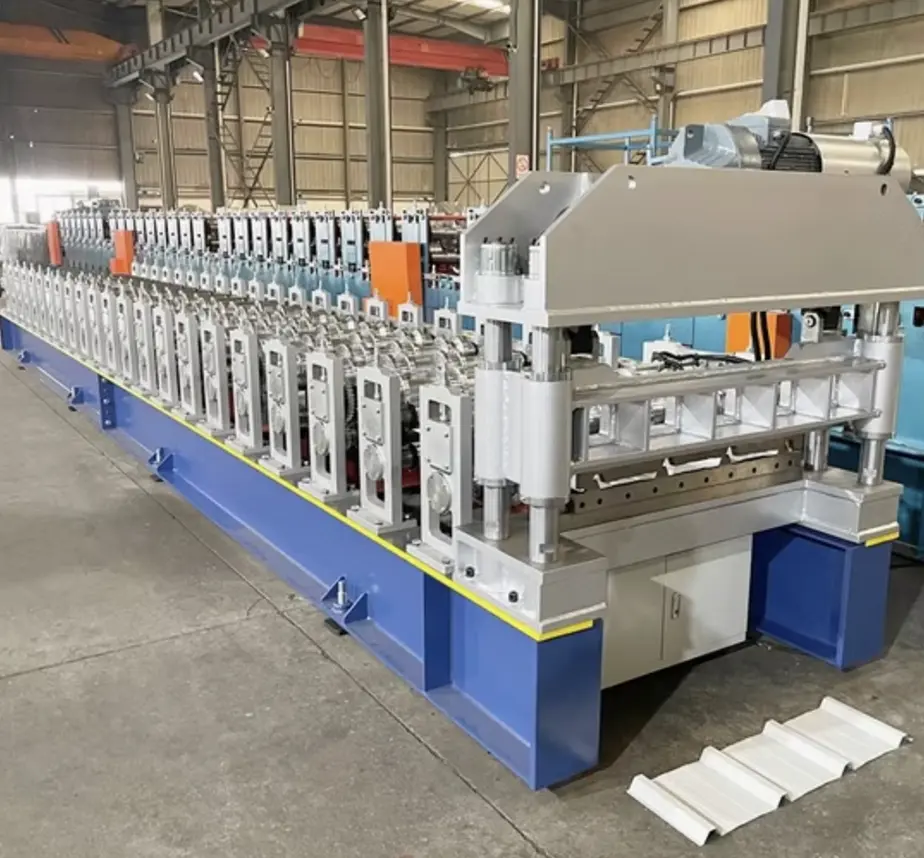

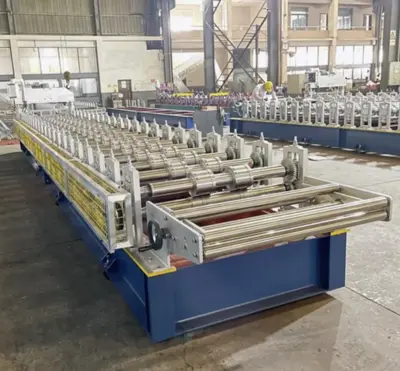

A Roofing Sheet Roll Forming Machine is a specialized industrial equipment designed to manufacture metal roofing sheets of various profiles, sizes, and gauges. The machine transforms coiled steel into roofing sheets through a series of precisely engineered rollers that gradually shape the material without altering its integrity. These machines are essential in the roofing industry, providing durable and weather-resistant sheets for residential, commercial, and industrial buildings.
In Mexico, the demand for high-quality roofing sheets has grown due to the construction boom in urban and rural areas. This roll forming machine is ideal for businesses looking to produce roofing sheets quickly and cost-effectively, meeting local and export needs.
Applications in Mexico
Residential: Roofing for houses and small structures
Commercial: Warehouses, factories, and retail buildings
Industrial: Industrial sheds, agricultural buildings, and storage facilities
Export: Neighboring countries in Latin America
Question and Answer Section
Q1: What materials can be used in a roofing sheet roll forming machine in Mexico?
A: Common materials include galvanized steel, pre-painted steel, aluminum, and other metal alloys that comply with local construction standards.
Q2: Can the machine profiles be customized for Mexican market demands?
A: Yes, the machine can produce various profiles like trapezoidal, corrugated, and ribbed sheets, catering to Mexico's diverse roofing needs.
Q3: How does the power supply work for Mexican standards?
A: The machine is adjustable to local power requirements, typically 380V/50Hz, but it can be customized for other voltages.
Q4: Is training provided for installation and operation?
A: Many manufacturers offer training, either in-person or remotely, to ensure operators understand installation, operation, and maintenance.
Q5: What is the average production speed?
A: Standard machines produce 10–15 meters per minute. High-speed models can achieve up to 25 meters per minute.
Q6: Are spare parts and servicing available in Mexico?
A: Reliable suppliers ensure that spare parts and after-sales services are accessible within Mexico or nearby regions.
Q7: How is quality ensured during production?
A: The machine uses a PLC control system for precise operation, while high-quality rollers and blades maintain consistency.
Q8: What is the cost of a roofing sheet roll forming machine in Mexico?
A: The price varies based on specifications and features, typically ranging from $20,000 to $100,000 or more for advanced models.
Machine Dimensions
Length: 10–15 metersWidth: 1.5–2.5 metersHeight: 1.2–1.8 meters
Length: 10–15 meters
Width: 1.5–2.5 meters
Height: 1.2–1.8 meters
Material Specifications
Material: Galvanized steel, pre-painted steel, aluminum, or other metal alloysCoil Width: 1000–1250 mmCoil Thickness: 0.3–1.2 mmMaterial Strength: 235–550 MPa
Material: Galvanized steel, pre-painted steel, aluminum, or other metal alloys
Coil Width: 1000–1250 mm
Coil Thickness: 0.3–1.2 mm
Material Strength: 235–550 MPa
Roller Materials
Material: High-grade steel (GCr15 or Cr12)Surface Treatment: Chrome plating (hardness HRC 58-62)
Material: High-grade steel (GCr15 or Cr12)
Surface Treatment: Chrome plating (hardness HRC 58-62)
Machine Components
Decoiler: Hydraulic or manual, capacity of 5–10 tonsRoll Forming Stations: 16–22 stations (varies by profile)Drive System: Chain or gear-drivenCutting System: Hydraulic cutting with high precision (blade material: Cr12Mov)Control System: PLC system with touch-screen interface (Siemens, Mitsubishi, or Delta)
Decoiler: Hydraulic or manual, capacity of 5–10 tons
Roll Forming Stations: 16–22 stations (varies by profile)
Drive System: Chain or gear-driven
Cutting System: Hydraulic cutting with high precision (blade material: Cr12Mov)
Control System: PLC system with touch-screen interface (Siemens, Mitsubishi, or Delta)
Performance Parameters
Machine Speed: 10–15 meters/min (standard) or up to 25 meters/min (optional high-speed)Power Supply: 380V/50Hz (adjustable for Mexican standards)Motor Power: 5.5–11 kW (main motor) + 3 kW (hydraulic motor)Tolerance: ±0.5 mm
Machine Speed: 10–15 meters/min (standard) or up to 25 meters/min (optional high-speed)
Power Supply: 380V/50Hz (adjustable for Mexican standards)
Motor Power: 5.5–11 kW (main motor) + 3 kW (hydraulic motor)
Tolerance: ±0.5 mm
Optional Features
Automatic stackerCoil car for easy loadingRemote control and monitoringProfile customization (e.g., trapezoidal, corrugated, ribbed sheets)
Automatic stacker
Coil car for easy loading
Remote control and monitoring
Profile customization (e.g., trapezoidal, corrugated, ribbed sheets)
