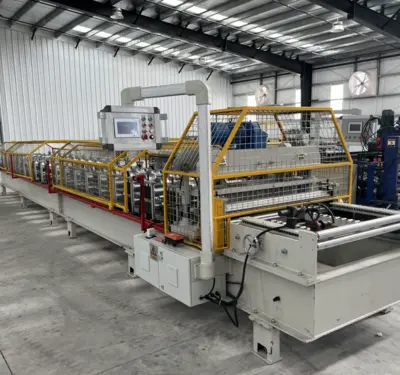

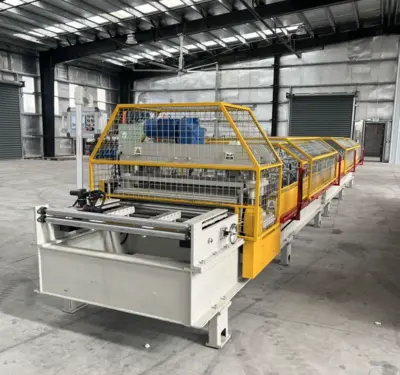

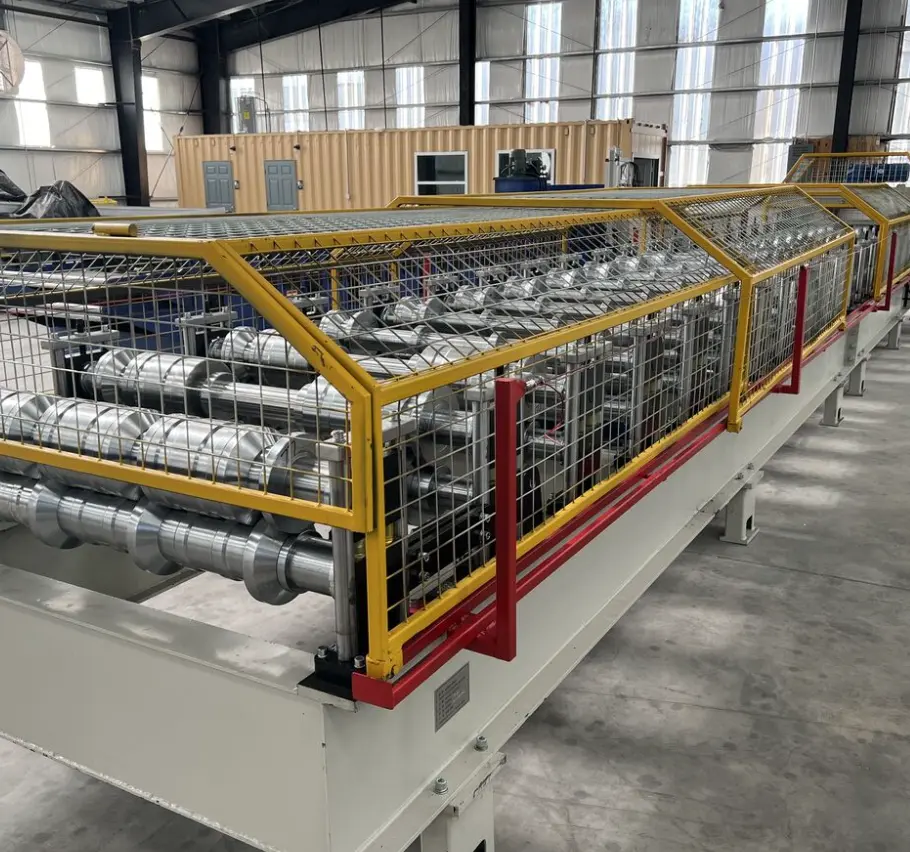

Roofing Sheet Roll Forming Machine in Michigan, United States

Roofing sheet roll forming machines are essential for producing high-quality, durable roofing sheets used in residential, commercial, and industrial buildings. These machines transform metal coils into precise roofing profiles through a series of rollers, ensuring consistency, efficiency, and minimal material wastage.
For the Michigan market, these machines cater to a wide range of applications, from robust roofing systems that withstand harsh winters to lightweight solutions for commercial projects.
Full Description
Roofing sheet roll forming machines are designed to produce a variety of roofing profiles, including:
Corrugated Sheets
Trapezoidal Sheets
Standing Seam Panels
Tile Roofing Sheets
The machines operate by feeding pre-cut or continuous metal coils into the system, where the material passes through multiple roller stations. Each station incrementally bends the metal into the desired profile, ensuring smooth and accurate shaping. The final product is cut to the desired length using a hydraulic or servo-driven cutting system.
Benefits of Roofing Sheet Roll Forming Machines in Michigan
Weather Resistance: Produces profiles ideal for Michigan's heavy snowfall and rain.

Customization: Wide range of roofing profiles for residential and commercial needs.

Durability: High-strength materials suitable for long-term installations.

Cost-Efficiency: Low material wastage and high production speeds reduce operational costs.

Energy Efficiency: Machines are optimized for low power consumption.
FAQs (Questions and Answers)
Q1: What roofing profiles are most popular in Michigan?
A1: In Michigan, corrugated and standing seam panels are the most popular due to their durability and ability to withstand harsh weather conditions.
Q2: How much space is required to set up the machine?
A2: The machine requires a minimum space of 15m x 5m for operation and material handling.
Q3: What is the typical production capacity of the machine?
A3: Depending on the model, it can produce 300–500 meters of roofing sheets per hour.
Q4: What type of maintenance is required?
A4: Regular lubrication of rollers, chain drives, and hydraulic systems is essential. It is also recommended to inspect the cutting blades and PLC system monthly.
Q5: Can this machine handle different materials?
A5: Yes, the machine can handle galvanized steel, aluminum, and pre-painted sheets, depending on the configuration.
Q6: Are there specific power requirements for Michigan?
A6: Yes, machines are configured to work with the 220V/440V, 60Hz standard used in Michigan.
Q7: What is the average price of a roofing sheet roll forming machine?
A7: Pricing ranges from $40,000 to $120,000, depending on the model, capacity, and added features like automatic stackers or recoilers.

Material: Galvanized Steel, Aluminum, Pre-Painted Steel, Stainless Steel
Material Thickness: 0.3 mm – 1.2 mm
Width of Material: 1000 mm – 1250 mm
Rollers Material: High-Grade Steel with Chrome Coating for Durability
Forming Stations: 12–20 (Varies by Profile)
Machine Frame: Heavy-Duty Steel Frame
Drive Type: Chain Drive or Gear Drive
Cutting System: Hydraulic Cutting with High-Speed Blades
Production Speed: 10–25 meters per minute (Customizable to 30–40 meters per minute)
Control System: PLC with HMI Touchscreen Interface
Power Supply: 220V/380V/440V, 50Hz/60Hz (Adaptable to Michigan’s 60Hz standard)
Length Tolerance: ±1 mm
Extras: Automatic Stacker, Decoiler, Recoiler, and Pre-Cutting Options
Dimensions (Approx.): Length: 8-10 meters, Width: 1.5-2 meters, Height: 1.5-2 meters
Weight: 5–10 Tons (Depending on Model and Configuration)
