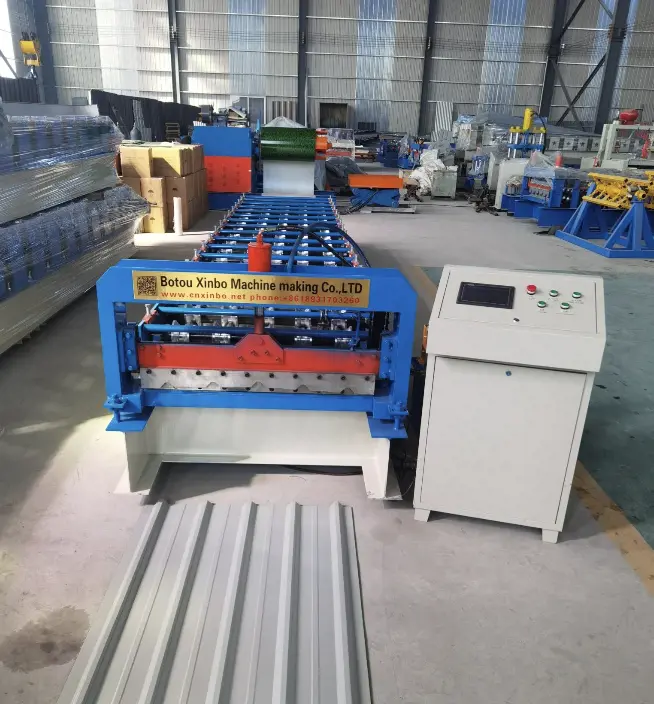

roof panel roll forming machine is a specialized piece of equipment used in the manufacturing process of roofing sheets
Suitable material
Color steel sheet , galvanized steel sheet
Main motor power
4KW with Cycloidal reducer
Hydraulic station power
4kw
Hydraulic oil
40#
Thickness
0.3-0.8mm
Diameter
Φ95mm
Electric tension
380V 3phase 50HZ
Material of roller
High grade 45# forged steel
Rolling galvanization thickness
0.05mm
Processing speed
10-15m/min
Processing precision within
10m+/-1.00mm
Material of cutting blade
Cr12 quenched
