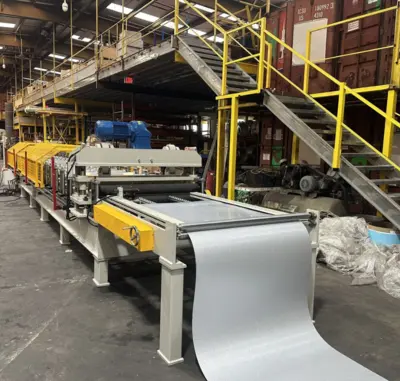

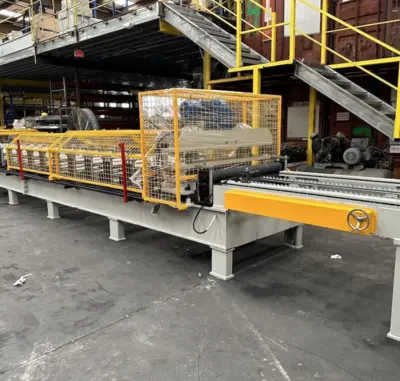

Galvalume Metal Roof Roll Forming Machine in USA

The Galvalume metal roof roll forming machine is designed to produce high-quality, durable roofing panels using Galvalume-coated steel. This advanced machine is tailored for industrial applications, residential roofing, and commercial structures, meeting the growing demand for corrosion-resistant and energy-efficient metal roofing solutions in the USA.
Machine Description
The Galvalume metal roof roll forming machine is a robust, high-performance system engineered to produce panels with precision and consistency. It features cutting-edge automation, durable construction, and versatility to create various roofing profiles.
Key features include:
Compatibility with Galvalume steel and other coated materials.
Ability to produce a range of roofing profiles, including standing seam, ribbed panels, and corrugated sheets.
High-speed production to meet the needs of large-scale projects.
Built-in quality control systems to ensure uniformity in every panel.
This machine is a preferred choice in the USA due to its adherence to strict safety standards and customization options for unique project requirements.
General Specifications
Material Compatibility: Galvalume steel, pre-painted steel, aluminum-zinc alloy steel.

Material Thickness: 0.3mm–0.8mm (customizable based on requirements).

Coil Width: 1000mm–1250mm.

Machine Dimensions: Approx. 8m × 1.5m × 1.2m (varies by model).

Weight: 8–12 tons.
Roller and Frame

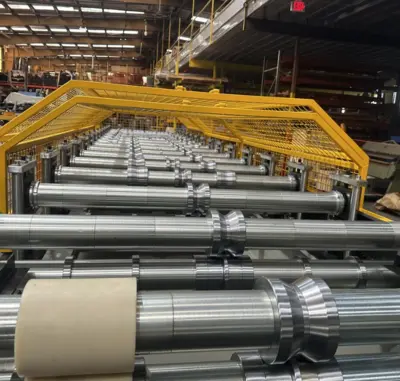

Roller Material: GCr15 steel with hard chrome plating for wear resistance.

Number of Rollers: 12–20 stages (depends on profile complexity).

Frame Structure: High-strength steel, H-beam welded design for stability.
Drive and Power System
Main Motor: 7.5kW–11kW.

Hydraulic Cutting Motor: 4kW.

Drive System: Chain or gear-driven, as per user preference.

Power Supply: 380V, 50Hz, 3-phase (customizable for USA power standards).
Control System

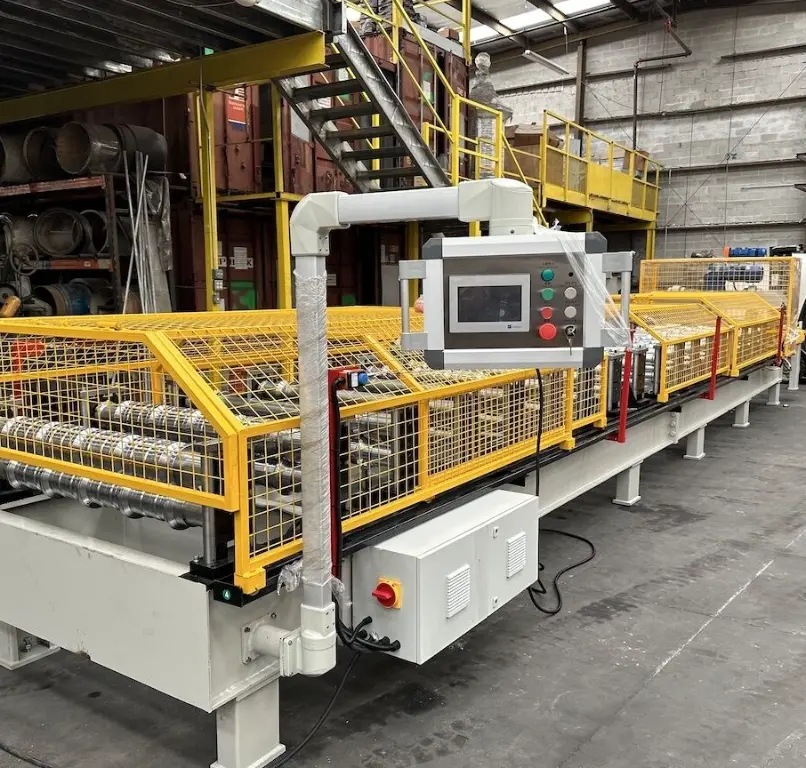

PLC System: Siemens or Mitsubishi for automation and accuracy.

Operation Mode: Touchscreen with user-friendly interface.

Precision: ±0.5mm for cutting length and profile dimensions.
Production Capacity
Speed: 10–15m/min (standard); up to 25m/min with servo motor upgrades.

Panel Length: Fully adjustable, based on customer needs.

Profile Options: Customizable for standing seam, corrugated, or ribbed panels.
Safety Features
Enclosed safety guards for operator protection.
Emergency stop buttons.
Overload protection system.
Question and Answer Section
Q1: What is Galvalume steel, and why is it used for roofing?
A: Galvalume steel is a zinc-aluminum coated material known for its superior corrosion resistance and heat reflectivity. It is ideal for roofing because it withstands harsh weather conditions, resists rust, and provides energy efficiency.
Q2: Can the machine be customized for different roofing profiles?
A: Yes, the Galvalume metal roof roll forming machine can be customized to produce various profiles, including standing seam, ribbed, and corrugated panels.
Q3: Is the machine compatible with USA power standards?
A: Absolutely. The machine can be configured to work with the USA's 240V/60Hz or 480V/60Hz power supply standards.
Q4: What is the typical production speed?
A: The standard production speed is 10–15m/min. However, with servo motor and advanced PLC upgrades, the speed can reach up to 25m/min.
Q5: How long does it take to install the machine?
A: Installation typically takes 5–7 days, depending on the complexity of the setup and the availability of facilities at the installation site.
Q6: What maintenance does the machine require?
A: Regular maintenance includes cleaning the rollers, lubricating moving parts, inspecting the PLC system, and ensuring hydraulic oil levels are adequate. Periodic checks should also be done on electrical components.
Q7: Is technical support available in the USA?
A: Yes, many manufacturers and distributors provide technical support, including installation guidance, training, and after-sales service in the USA.
