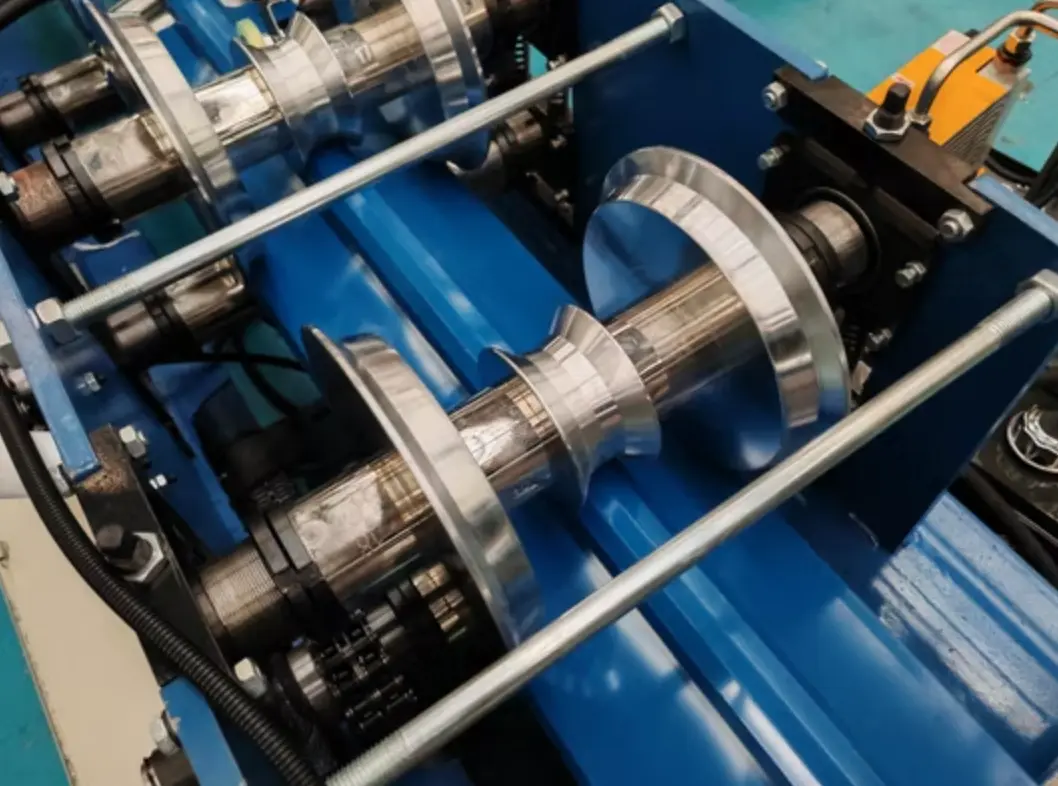

Metal Flashing Roll Forming Machine – Algeria

The Metal Flashing Roll Forming Machine – Algeria is a precision-engineered production line designed for manufacturing roof flashings, drip edges, trims, and wall cappings used in roofing and cladding systems. These components are vital for waterproofing, edge protection, and aesthetic finishing across residential, commercial, and industrial buildings.
At Machine Matcher, we supply new, fully automatic flashing roll forming machines custom-built to your profile drawings, coil specifications, and production goals. Each machine integrates PLC control, hydraulic cutting, and precision-ground rollers, ensuring smooth forming and consistent output across long production runs.
With Algeria’s rapid growth in construction, steel fabrication, and prefabricated building projects—particularly in Algiers, Oran, Blida, and Constantine—the need for locally manufactured roof flashings is growing. Our machines help Algerian producers achieve international quality standards while reducing material waste, downtime, and import costs.
Machine Matcher provides turnkey systems with global delivery, full setup, and 24/7 technical support—backed by service teams across Europe and the Middle East.
Machine Technical Specifications
Specification
Details

Machine Type:
Metal Flashing Roll Forming Machine

Production Speed:
15–40 m/min (adjustable)

Material Thickness Range:
0.3–1.0 mm

Material Width Range:
100–600 mm (customizable)

Material Types:
Galvanized Steel (GI), Pre-painted Steel (PPGI), Aluminum, Stainless Steel, Copper

Material Yield Strength:
235–550 MPa

Roller Material:
GCr15 bearing steel, hardened and hard-chromed

Roller Surface Treatment:
Precision-polished and plated to prevent scratching

Number of Forming Stations:
10–22 stations (depending on profile complexity)

Roller Shaft Diameter:
50–70 mm

Shaft Material:
45# steel, precision-ground and heat-treated

Main Drive Type:
Gearbox or chain drive

Power (Algeria):
380 V / 50 Hz / 3 Phase

Motor Power:
7.5–15 kW

Cutting Method:
Hydraulic post-cut or flying shear

Blade Material:
Cr12MoV high-strength tool steel

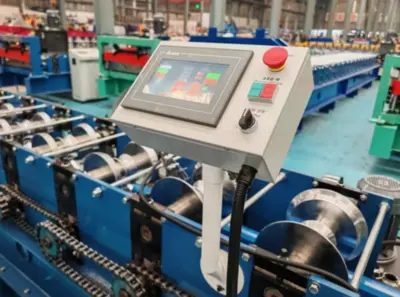

Control Type:
PLC with HMI touchscreen (Siemens / Delta / Mitsubishi)

Operating Mode:
Fully automatic with manual override

De-coiling System:
3–10 ton manual or hydraulic uncoiler

Machine Frame:
300–400 H-beam welded steel

Thickness of Frame Steel:
16–20 mm

Profile Shape:
Drip edge, ridge cap, J-trim, corner flashing, or custom

Profile Width & Depth:
Width 100–600 mm; Depth 10–60 mm

Length Tolerance:
±1 mm / m

Safety Features:
Emergency stop, overload protection, safety guards

Protective Covers:
Transparent or steel covers for operator safety

Overload Protection System:
Integrated within main motor and hydraulics
Optional Add-ons and Upgrades
Servo feeding and encoder synchronization

Hydraulic punching and notching units

Dual-decoiler for continuous operation

Remote PLC diagnostic system (Ewon / PLCRemote)

Coil car and hydraulic coil tilter

Automatic stacker and counting system

Safety sound-insulated enclosure

Auto-lubrication and cleaning system

Quick-change roller setup for multiple flashing designs
All systems are factory-tested and certified before shipping, supplied with test videos, installation manuals, and wiring diagrams.
Flashing Profile Description
Metal flashings are thin, folded steel or aluminum strips used to seal and protect joints, roof edges, and wall intersections. They prevent water ingress and enhance the finished look of roofing systems.
Common Types Produced
Drip Edge Flashing: Directs water away from roof fascia.

Ridge Cap Flashing: Seals the roof peak and overlaps panels.

Sidewall / Endwall Flashing: Protects roof-to-wall intersections.

Corner and J-Trim Flashings: Finishes vertical or horizontal edges.

Valley Flashing: Directs runoff between roof slopes.

Base Flashing: Installed along roof perimeters and foundations.
Typical Sizes
Width: 100–600 mm

Depth (fold height): 10–60 mm

Material Gauge: 0.3–1.0 mm

Length: Programmable up to 6 m
Materials Used
Pre-painted Steel (PPGI): Aesthetic and corrosion-resistant

Galvanized Steel (GI): Economical, durable for standard roofs

Aluminum: Lightweight and non-corrosive

Copper / Stainless Steel: Premium flashing for architectural projects
Industries and Applications in Algeria
Flashings are essential for:
Metal roofing manufacturers

Cladding and façade installers

Steel structure and prefab builders

Residential roofing contractors

Commercial and industrial construction

Agricultural and warehouse roofing projects
In Algeria’s coastal and semi-arid climates, flashings provide vital protection against rain, sand, and heat. The demand for locally produced roof accessories has increased with major housing and infrastructure programs supported by national and private developers.
Machine Matcher enables Algerian producers to deliver international-quality roofing components for both domestic and export markets.
Setup and Installation
Every machine is delivered pre-assembled, calibrated, and tested before shipment.
Setup Steps
Position machine on a leveled concrete base.

Connect hydraulic and electrical systems.

Load coil and adjust feeding guides.

Calibrate roller pressure and length encoder.

Produce test runs and verify bending angles.
Machine Matcher provides:
Remote installation support via video or PLC link

On-site commissioning and training (available in Algeria & North Africa)

Comprehensive manuals and video tutorials
Maintenance and Support
Proper maintenance ensures longevity and precision.
Daily
Clean rollers, guides, and cutting area.

Inspect oil level and remove debris.
Weekly
Lubricate bearings and chains.

Check encoder and sensor accuracy.
Monthly
Inspect hydraulic seals and hoses.

Tighten all bolts and electrical connections.
Annually
Re-align roller stations.

Replace hydraulic oil and filters.

Perform a complete PLC diagnostic test.
Machine Matcher offers:
OEM spare parts kits

Preventive maintenance plans

Remote troubleshooting and PLC updates

24/7 worldwide support
Machine Pricing
Pricing depends on automation level, profile complexity, and material thickness.
Model Type
Configuration
Approx. Price (USD)

Basic Model
Manual uncoiler, post-cut, basic PLC
$40,000 – $60,000

Mid-Range Model
Hydraulic uncoiler, servo feeding, auto cutting
$60,000 – $85,000

High-End Model
Full servo system, dual-decoiler, auto stacker
$85,000 – $120,000 +
All quotes include:
Custom profile design confirmation

Test videos before dispatch

Export packaging and documentation

Optional on-site installation and training
Countries & Markets Served
Machine Matcher supplies metal flashing roll forming machines to:
Algeria

Tunisia

Morocco

Egypt

Mauritania

France

Italy

Middle East and Europe
All machines are CE and ISO certified, compatible with 380 V / 50 Hz / 3-phase power systems used in North Africa.
Why Choose Machine Matcher
Machines custom-engineered for your flashing profiles

CE & ISO-certified design and manufacturing

24/7 technical and PLC remote support

Local service and installation teams in North Africa

OEM spare parts and fast global delivery

Detailed inspection and pre-shipment testing

Offices in UK, USA, and Middle East for global coverage
Machine Matcher delivers complete roll forming solutions that combine precision engineering, automation, and long-term reliability for Algerian manufacturers.
Frequently Asked Questions
Q1: What is a metal flashing roll forming machine?

A: It’s an automated line that forms flat metal coils into various roof flashing and trim profiles used for sealing and finishing metal roofs and walls.
Q2: Can one machine produce multiple flashing types?

A: Yes. With adjustable roller tooling or interchangeable cassettes, one machine can form several flashing designs.
Q3: What materials are ideal for Algeria’s environment?

A: Pre-painted and galvanized steel are preferred for inland areas, while aluminum or stainless steel is best for coastal zones due to humidity and salt air.
Q4: What production speed can be achieved?

A: Standard speed ranges from 15 – 40 m/min, depending on profile and thickness.
Q5: How long does installation take?

A: Typically 3–5 working days, including calibration and operator training.
Q6: What support does Machine Matcher provide after purchase?

A: We offer remote PLC diagnostics, on-site service, spare parts supply, and preventive maintenance plans.
