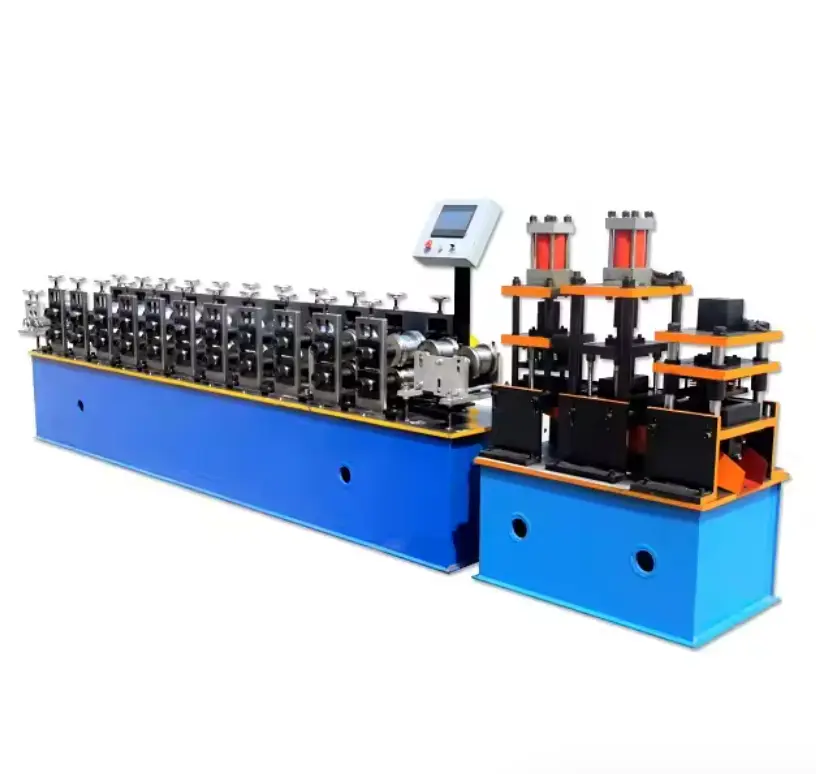

Nosing Profile Roll Forming Machine – UAE
Machine Matcher proudly offers the high-performance Nosing Profile Roll Forming Machine, now available for customers across the United Arab Emirates, including Abu Dhabi, Dubai, and Sharjah. This specialized forming system is designed for precision shaping of nosing profiles used in stair treads, safety grating, and industrial flooring systems. Engineered with premium components, high efficiency, and robust safety features, this machine delivers exceptional value for manufacturers looking to elevate their production capabilities.
Machine Type & Capabilities
This roll forming system is custom-built for the continuous, high-speed production of nosing profiles, which feature ribbed or grooved surfaces to provide slip resistance and structural integrity. The machine can process a wide range of metal coils and shape them accurately into customer-specific nosing designs.
Industries Served
Construction & Building Materials
Used for stair nosing, anti-slip steps, metal flooring systems in public infrastructure, commercial complexes, and industrial facilities.
Industrial Safety Equipment
Nosing profiles enhance safety in factories, warehouses, and production lines.
Transportation Infrastructure
Applied in steps and floors of railway cars, buses, airports, and pedestrian bridges.
OEM and Custom Fabrication
Fabricators serving large infrastructure or custom stair assemblies frequently require specialized nosing profile solutions.
Example Use Case:
A Dubai-based construction supplier integrates this machine to fabricate custom aluminum stair nosings used in public transit stations, enabling faster delivery and tighter quality control on projects.
Machine Technical Specifications
Machine Type: Nosing Profile Roll Forming Machine
Production Speed: 10–15 meters per minute
Material Thickness Range: 0.8–1.5 mm
Material Width Range: 100–300 mm
Material Types: Galvanized Steel, Stainless Steel, Aluminum
Material Yield Strength: Up to 550 MPa (80 ksi)
Roller Material: High-grade GCr15 steel
Roller Surface Treatment: Hard chrome coating
Number of Forming Stations: 12–16 stations (based on profile)
Roller Shaft Diameter: 60 mm
Shaft Material: High-strength steel (quenched and tempered)
Main Drive Type: Gearbox-driven with chain transmission
Power (UAE Compatible): 380V / 3 Phase / 50Hz
Motor Power: 7.5 kW
Cutting Method: Hydraulic post-cutting system
Blade Material: Cr12MoV, heat-treated
Control Type: PLC with touch screen HMI
Operating Mode: Semi-automatic and fully automatic modes
De-coiling System: Manual or automatic de-coiler (optional)
Punching/Notching System (if included): Hydraulic punching unit (optional)
Machine Frame: Welded steel frame with reinforcement
Thickness of Frame Steel: 18–20 mm
Profile Shape: Custom ribbed/grooved nosing profile
Q: Can the machine be customized for our profile?
A: Yes, Machine Matcher offers fully customized solutions. Just send us your profile drawings.
Profile Width and Depth: Based on customer specification
Length Tolerance: ±1.0 mm per 3 meters
Safety Features:
Protective Covers/Guards
Emergency Stop Button
Overload Protection System
Remote Installation Support: Yes, remote video guidance available. On-site installation available on request.
Lead Time for Manufacturing & Shipping:
A: Production takes approximately 30–60 days. Shipping time depends on your nearest UAE port.
Material Specifications
This machine typically processes the following material types:
Galvanized Steel (1.0–1.5 mm, 40–80 ksi)
Aluminum (1.2–1.5 mm, 30–60 ksi)
Stainless Steel (0.8–1.2 mm, 60–80 ksi)
These materials are widely used in building stairs and platforms requiring durable, anti-slip surfaces.
Pricing & Customization
Prices Start From: $35,000 (standard model)
What Affects Final Price?
Required profile complexity
Optional punching or notching system
Automated de-coiler system
Profile width and material capability
Power configuration for UAE standards
Extended automation features
For an accurate quote, email your profile drawing and production requirements to: [email protected]
Unique Selling Propositions (USPs)
Custom-Built to Order
Machine Matcher builds each machine based on your profile and material specs — no off-the-shelf mismatches.
Heavy-Duty Frame and Long-Life Rollers
Built with industrial-grade components for 24/7 production environments.
Advanced Safety Systems
All machines feature built-in overload protection, guards, and emergency stops for safe operation.
Precise Forming + Hydraulic Cutting
Achieves tight tolerances for professional finishes and zero post-processing.
Remote + On-Site Installation Support
Start production faster with setup guidance available via video or at your factory.
Flexible Operation
Switch between semi-auto and full-auto production to suit your workload and team.
UAE-Specific Power & Compliance
All machines are configured for local UAE voltage, phase, and safety standards.
Result: Reduced scrap rate, faster setup time, and more consistent nosing profile output — giving buyers a faster return on investment.
Customization Options Available
Profile shape and size
Material type and thickness range
Number of forming stations
Punching/notching system integration
Cutting type (pre-cut/post-cut)
Motor power adjustments
Touch screen interface language (English/Arabic)
Location & Delivery
All nosing profile roll forming machines are supplied by Machine Matcher and are built brand-new to your custom requirements. Machines are available for delivery throughout the United Arab Emirates, including:
Abu Dhabi
Dubai
Sharjah
And all surrounding regions
Every machine is shipped directly from our manufacturing partner with full Machine Matcher support.
Warranty & Support
Warranty: One-year full warranty from dispatch
Support: Durable maintenance and repair support included
For customers who wish to get the most accurate quote, please share your profile drawings, material specs, and volume expectations via email to [email protected].
All machines described are supplied exclusively by Machine Matcher. No other suppliers or brands are involved.
