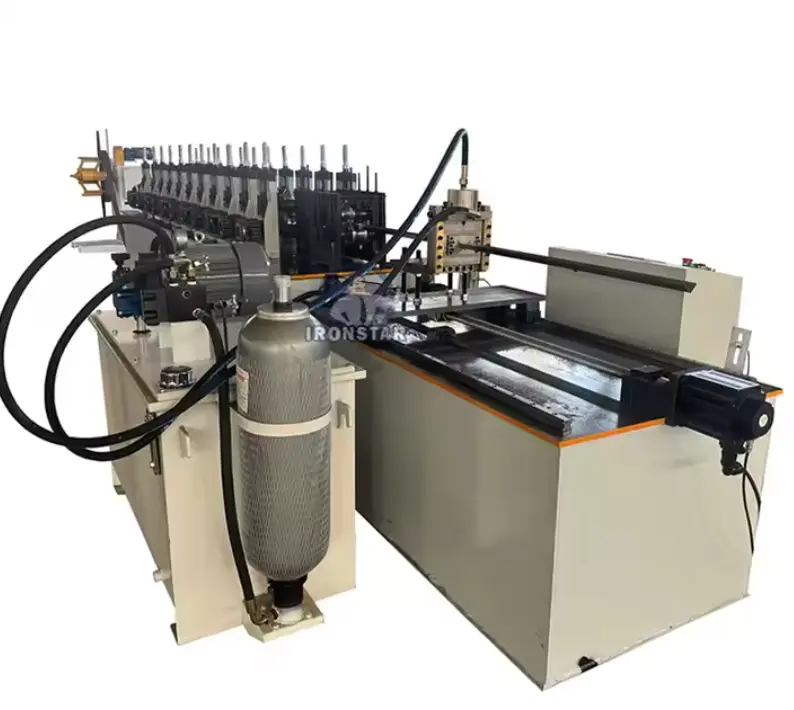

Triangle Angle Bead Channel Roll Forming Machine – UAE Market Specification & Overview
Product Overview:
The Triangle Angle Bead Channel Roll Forming Machine is a precision-engineered solution tailored for the production of reinforced angle beads and corner protection profiles widely used in drywall systems, plastering work, and interior wall edge protection. Designed specifically for customers in the United Arab Emirates, this machine combines high-speed forming technology with robust construction to deliver consistently accurate profiles, even at high volumes.
Engineered for reliability and long-term operation in demanding UAE construction environments, the machine is built with a solid frame structure, advanced control systems, and premium roller components to ensure continuous and maintenance-efficient output.
Industries Served:
This roll forming machine is essential for the following sectors in the UAE:
Construction & Drywall Contractors
Used to manufacture drywall and plaster corner beads for interior finishing.
Architectural & Interior Design Fit-Out Companies
For production of custom metal trim angles to match design-specific requirements.
Building Material Manufacturers & Distributors
To produce and supply large quantities of angle beads for resale or project supply.
Industrial Building Contractors
For use in wall finishing, edge protection, and partition systems.
Machine Type & Capabilities:
Machine Type: Triangle Angle Bead Channel Roll Forming Machine
Primary Function: Produces precise triangle-shaped metal profiles with perforation options for enhanced plaster bonding.
Utilization Example: Manufacturers use this machine to produce lightweight corner beads that improve durability and reduce cracking in gypsum and plasterboard corners.
Machine Technical Specifications:
Production Speed: 25–40 meters per minute
Material Thickness Range: 0.3 – 0.6 mm
Material Width Range: 40 – 150 mm
Material Types: Galvanized steel, Stainless steel, Aluminum
Material Yield Strength: Up to 280–350 MPa (40–50 KSI)

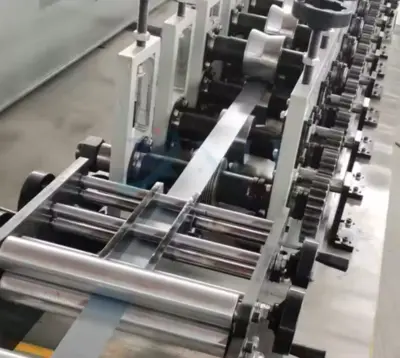

Roll Forming Assembly:
Roller Material: GCr15 hardened steel with 58–62 HRC hardness
Roller Surface Treatment: Hard chrome-plated for wear resistance
Number of Forming Stations: 10–14 stations depending on profile complexity
Roller Shaft Diameter: 50 mm
Shaft Material: Solid 45# steel, precision ground
Drive & Power System:
Main Drive Type: Gearbox-driven chain or direct coupling system
Motor Power (UAE): 4–5.5 kW (380V / 50Hz / 3 Phase as per UAE industrial standard)

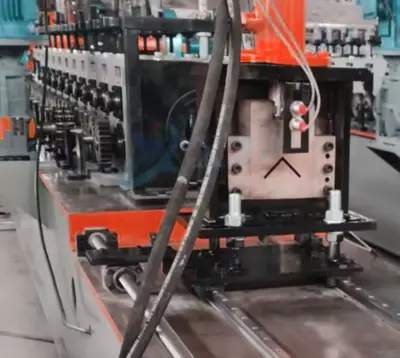

Cutting System:
Cutting Method: Hydraulic post-cutting
Blade Material: Cr12Mov with heat treatment for extended life
Control System:
Control Type: PLC automatic control system with touch screen HMI
Operating Mode: Fully automatic with length, quantity, and speed control
Coil Handling & Additional Systems:
De-coiling System: Manual or automatic hydraulic uncoiler (3–5 Ton capacity)
Punching/Notching System: Optional servo punching with multiple hole shapes
Machine Frame: Welded steel plate with stress-relieving treatment
Thickness of Frame Steel: 16–20 mm
Profile Information:
Profile Shape: Triangle angle with perforated or solid edge options
Profile Width and Depth: Width: 30–60 mm | Depth: 10–20 mm
Length Tolerance: ±1.0 mm per 3 meters
Safety Features:
Protective metal guards and transparent viewing covers
Emergency stop button on both entry and exit sections
Overload protection for motor and hydraulic systems
Material Compatibility:
Typical Materials Used:
Galvanized Steel – most common
Stainless Steel – corrosion-resistant option
Aluminum – lightweight and flexible
Gauge Range:
0.3 mm to 0.6 mm (30–24 gauge)
Yield Strength:
Commonly 40–50 KSI depending on material type
Pricing:
Starting Price: From USD $35,000
(Ex-factory; depending on configuration and options)
What Affects Final Price:
Number of forming stations
Perforation or punching modules
Servo vs. mechanical systems
Degree of automation and output capacity
Type and capacity of uncoiler
Optional stackers, punching units, embossing tools
Customization Options:
Servo punching unit for pre-defined perforation patterns
Dual profile tooling (switch between different angle sizes)
Remote PLC diagnostics and software integration
Custom branding and logo embossing on profile
Auto-stacker for end-of-line packaging
Coil car & hydraulic de-coiler integration
Unique Selling Propositions (USPs):
Built for UAE Standards – 380V/50Hz electrical configuration ready for the UAE grid
Perforated Angle Profile Precision – Enables clean plaster adhesion for architectural durability
Quick Setup & Fast Tool Change – Reduces downtime for profile changes
High Output with Low Scrap Rate – Ideal for high-volume production with consistent edge and shape accuracy
Energy Efficient Motors – Reduce electricity costs over long production hours
All Machines Covered by One-Year Warranty – With lifetime support and spare parts availability
Delivery & Location Coverage:
All machines are new and custom-built to order, based on the customer’s profile requirements and production needs.
Delivery is available anywhere in the United Arab Emirates, including:
Abu Dhabi, Dubai, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.
Quote Requests & Contact:
If you have profile drawings, material requirements, or special customization needs, please send your project details to:
[email protected]
Our technical team will provide a tailored quotation and profile analysis to help you select the best machine configuration for your production line.
Frequently Asked Questions (FAQs):
Q1: What material is best for triangle angle bead production in UAE?
A1: Galvanized steel (0.4–0.5 mm) is most commonly used due to its corrosion resistance and plaster bonding properties.
Q2: Can this machine produce different bead sizes?
A2: Yes, with modular tooling or dual-profile setups, you can produce different sizes and shapes with the same machine.
Q3: What is the machine delivery time?
A3: Standard production lead time is 45–60 days from order confirmation, including testing and packaging.
Q4: Can the machine be operated by one person?
A4: Yes, the PLC system allows a single operator to manage production with minimal supervision.
Q5: Is training included?
A5: Yes. On-site or remote training and installation support can be arranged with every machine order.
Let Machine Matcher help you streamline your drywall angle bead production with cutting-edge, cost-efficient roll forming solutions custom-built for your UAE projects.
