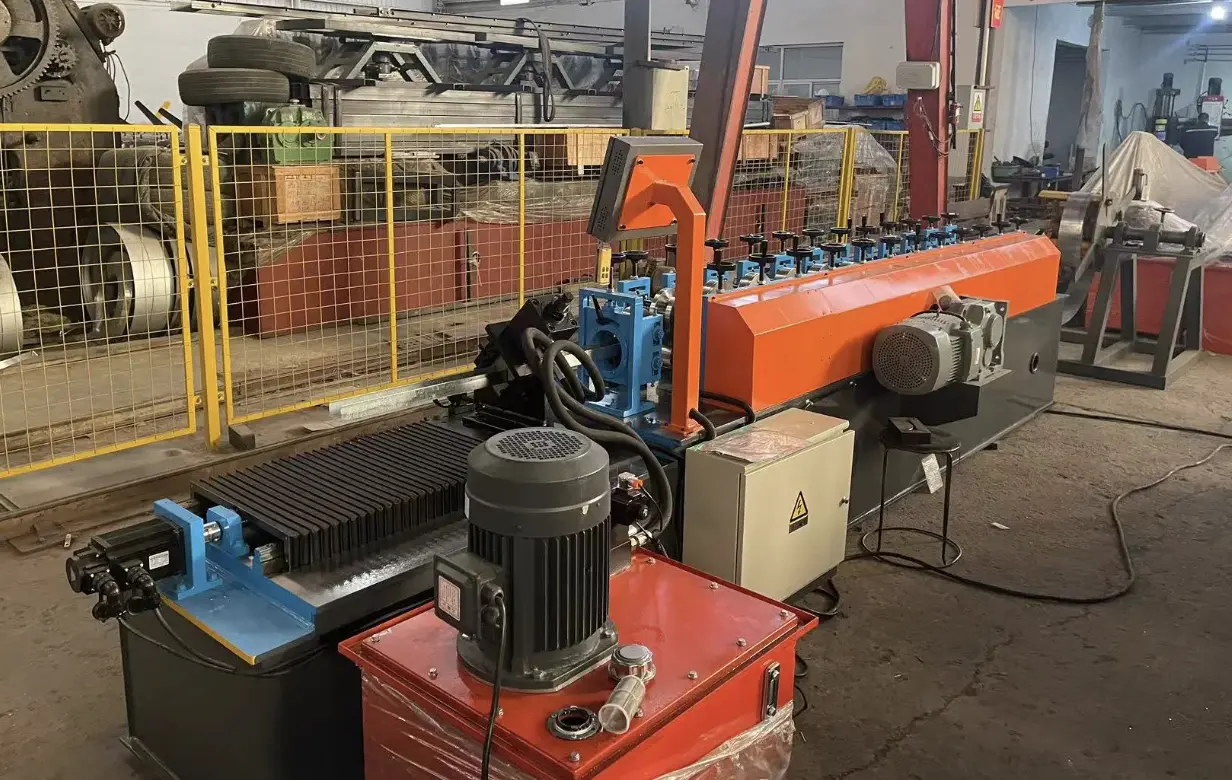

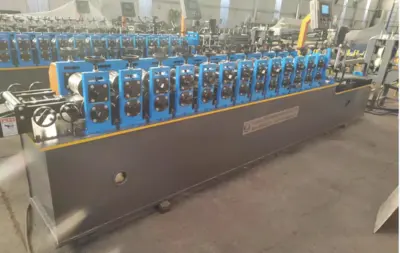

Furring Purlin Roll Forming Machine
Suitable material
PPGI GI AL
Coil Width
as custom
Thickness
0.3-0.5mm as custom
Power
380V 50Hz 3Phase as custom
Main motor
5.5KW Siemens
Hydraulic motor
4KW Siemens
Speed
45m/min
Forming stations
12 rows
Roller material
Cr12 steel with vacuum heat treatment HRC57°-60°
Shaft material
45# steel quenched and tempered
Shaft diameter
50mm
Drive
Gear
Screem HMI
Delta , Touch Screen
PLC
Delta , Siemens
Processing precision
Within 1mm
Size
4.6m×1.5m×1.2m
Weight
2.5T
