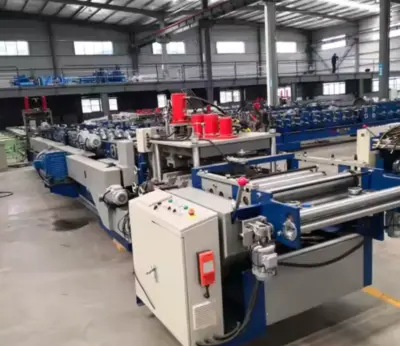

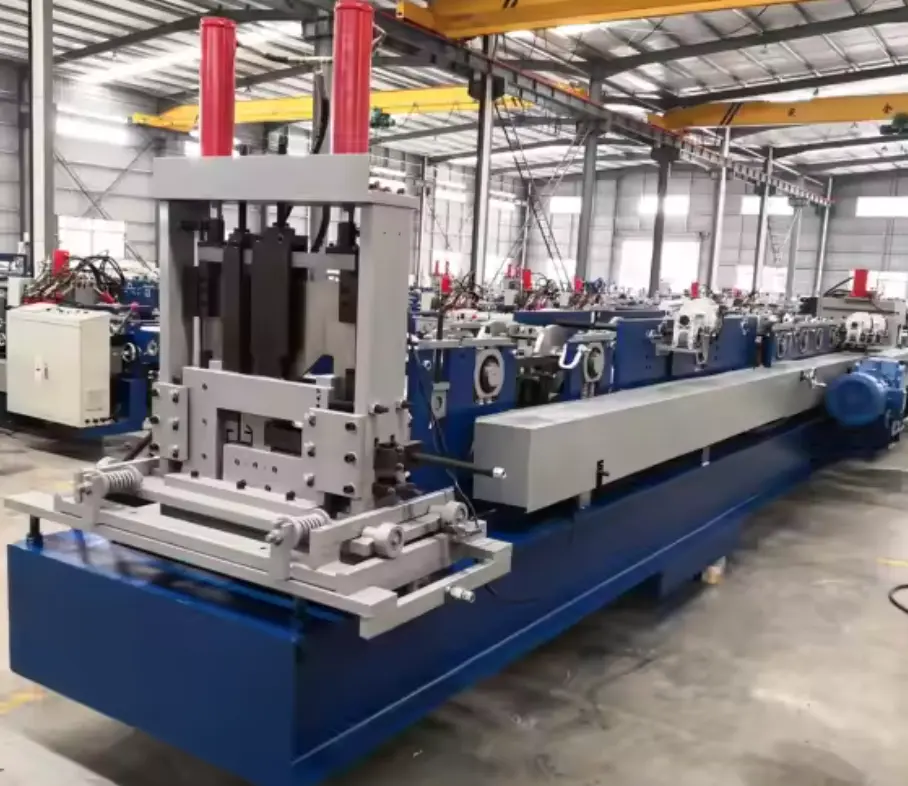

Metal Channel Profile Roll Forming Machine – UAE
The Metal Channel Profile Roll Forming Machine is engineered for precision manufacturing of C-channels, U-channels, and other custom metal channels used across construction, infrastructure, industrial framing, and support systems. Built for the unique demands of the UAE market—including climate durability, industrial project scale, and voltage compatibility—this machine delivers consistent output and versatility across varying profile sizes and gauges.
Ideal for metal fabrication businesses in Abu Dhabi, Dubai, Sharjah, and other emirates, the machine is a long-term asset designed to produce high-quality, straight, and dimensionally consistent metal channel profiles for steel framing systems, ceilings and partitions, solar structure supports, and cable tray manufacturing.
Machine Technical Specifications
Specification
Details
Machine Type
Metal Channel Profile Roll Forming Machine
Production Speed
15–30 meters/min (depending on profile & gauge)
Material Thickness Range
0.5 – 2.5 mm
Material Width Range
100 mm – 600 mm
Material Types
Galvanized Steel, Mild Steel, Aluminum, Stainless Steel
Material Yield Strength
Up to 550 MPa
Roller Material
GCr15 (hardened chrome steel)
Roller Surface Treatment
Hard chrome-plated for anti-wear & corrosion resistance
Number of Forming Stations
12 – 20 stations (customizable)
Roller Shaft Diameter
60 mm – 75 mm
Shaft Material
High-grade 45# steel with heat treatment
Main Drive Type
Gearbox-driven or chain drive
Power
380V / 50Hz / 3 Phase (UAE Standard)
Motor Power
11 – 22 kW (based on design capacity)
Cutting Method
Hydraulic Post-cutting System
Blade Material
Cr12Mov with heat treatment
Control Type
PLC with HMI Touch Screen
Operating Mode
Fully Automatic with Manual Override
De-coiling System
Manual or Hydraulic Uncoiler (3–5 Ton options)
Punching/Notching System
Optional inline hydraulic unit
Machine Frame
Welded steel structure
Thickness of Frame Steel
20 mm – 25 mm
Profile Shape
U Channel, C Channel, Z Channel, or Custom
Profile Width and Depth
Width: 40–300 mm / Depth: 20–100 mm (adjustable)
Length Tolerance
±1.0 mm
Safety Features
Protective Covers, Emergency Stop, Overload Protection
Industries That Use This Machine in the UAE
Construction & Infrastructure: For framing, partitioning, support bracing
HVAC & Electrical Contracting: Cable trays, support channels
Solar Mounting & Energy: Mounting rails and brackets
Industrial Equipment Fabrication
Steel Trading & Fabrication Workshops
Pricing and Customization
Prices start from: USD $65,000
(Standard line with manual decoiler, no punching)
What affects the final price?
Profile complexity (shape, size, material)
Automation level (manual vs. fully automatic)
Punching, embossing, and notching system requirements
Decoiler and stacker type (manual, hydraulic, or motorized)
Quantity of forming stations
Speed and motor power upgrades
For a tailored quotation, send your profile drawing, required gauge range, power supply details, and any additional preferences to [email protected].
Location & Delivery
All machines are new and custom-built to meet specific profile requirements. We offer delivery and setup across the United Arab Emirates, including Abu Dhabi, Dubai, Sharjah, and surrounding areas, directly from our certified manufacturing partners.
Machines are covered by a 1-year warranty from dispatch and supported with maintenance and repair services.
Frequently Asked Questions (FAQ)
Q1: What types of metal can be used in this machine?
A1: This machine is designed to work with galvanized steel, mild steel, stainless steel, and aluminum with up to 550 MPa yield strength.
Q2: Can the machine produce multiple sizes of channel?
A2: Yes, the machine can be configured as manual-adjustable, semi-auto, or fully automatic size-changing, allowing for multiple sizes without roll replacement.
Q3: How long does it take to install the machine after delivery?
A3: Installation usually takes 3–5 days, depending on the machine’s complexity and site readiness. Remote or on-site training is included.
Q4: Is inline punching included?
A4: Inline hydraulic punching can be added as an optional system based on your profile needs.
Q5: What maintenance does the machine require?
A5: Routine maintenance includes lubrication of rollers and drive systems, checking control units, and cleaning the rollers. Full service support is available in the UAE.
Q6: What kind of operator training is provided?
A6: We offer operator manuals, video tutorials, and remote or in-person training during setup and commissioning.
For more details or to request a quote, email your requirements to [email protected]. Our team is ready to help you find the right metal channel roll forming machine for your project in the UAE.
