Purlin roll forming machines are essential equipment in the construction industry, enabling the production of C, Z, and U-shaped metal profiles used in roofing and wall structures. These machines are designed to produce high-quality, consistent purlins efficiently and are widely used in Spain due to the country's growing demand for prefabricated and modular building structures.
Machine Description

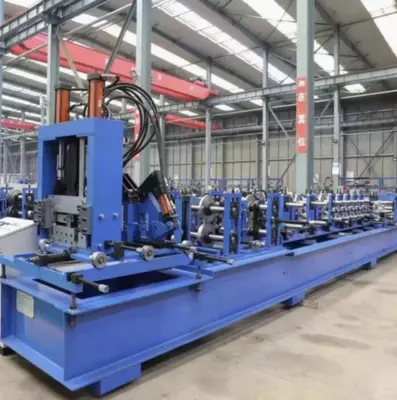

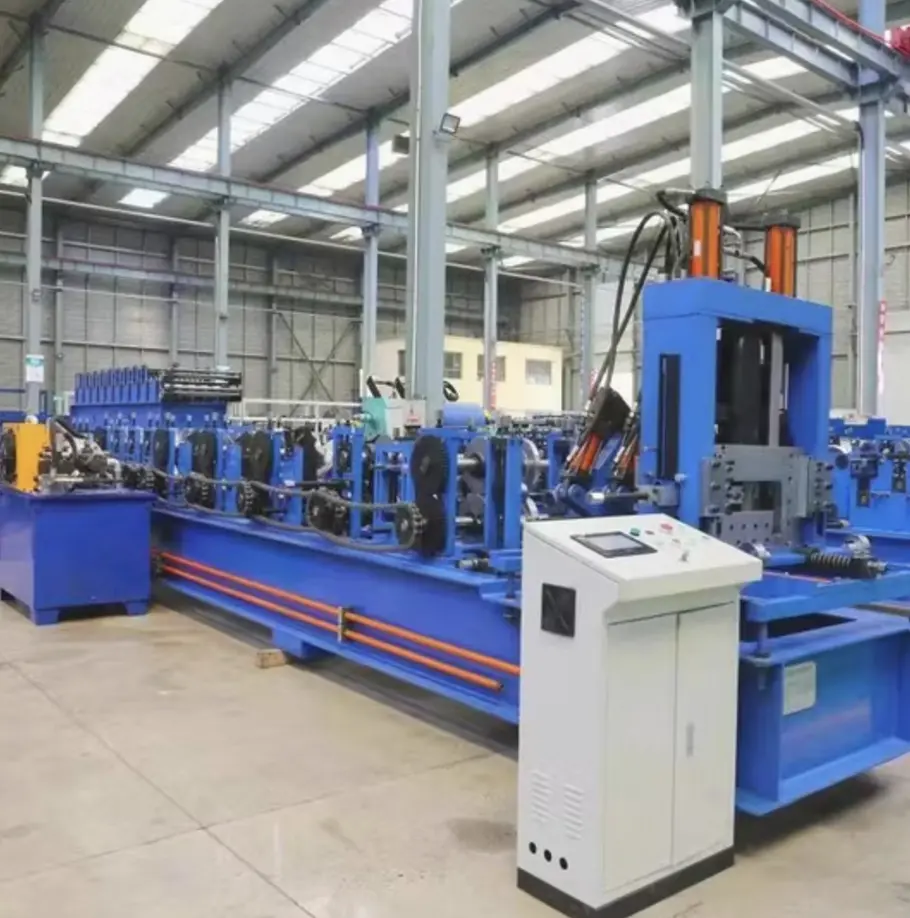

The Purlin Roll Forming Machine is a versatile and high-performance system capable of manufacturing purlins in various shapes and sizes. It features advanced automation technology, ensuring precision and minimal material waste. The machine can produce profiles from galvanized steel, stainless steel, or aluminum, making it suitable for various applications in construction and engineering.
Key features of the Purlin Roll Forming Machine include:
Fully Automated Control System: PLC systems for easy operation.
Adjustable Settings: Quick-change technology for different profile sizes and shapes.
High Speed and Efficiency: Ensures fast production to meet industrial demands.
Robust Construction: Built with high-quality materials to withstand heavy-duty operations.
Applications in Spain
The Purlin Roll Forming Machine is extensively used in Spain's construction projects, including:
Industrial warehouses
Agricultural buildings
Commercial complexes
Residential structures
Prefabricated homes and modular buildings
Setup and Installation Process
Preparation: Ensure the site has adequate space and power supply compatibility.
Machine Placement: Install the machine on a leveled surface to avoid vibration during operation.
Electrical Connections: Set up the PLC system and motors.
Testing: Run a few test profiles to calibrate settings.
Operator Training: Provide training on machine usage and safety protocols.
Maintenance Requirements
Regular Lubrication: Keep all moving parts well-lubricated to reduce wear and tear.
Periodic Cleaning: Remove debris from rollers and cutters.
Alignment Checks: Ensure rollers are aligned to avoid profile deformities.
Electrical Inspections: Check wiring and PLC connections periodically.
Replace Worn Parts: Monitor for signs of wear on rollers and blades and replace as needed.
Question and Answer Section
Q1: What materials can the Purlin Roll Forming Machine handle?
A1: The machine can process galvanized steel, stainless steel, and aluminum with thicknesses ranging from 1.5 mm to 3.5 mm.
Q2: How long does it take to switch between different profile sizes?
A2: With the quick-change system, switching between profiles typically takes 10-15 minutes.
Q3: What is the average production speed?
A3: The machine operates at speeds of up to 20-30 meters per minute, depending on the material and profile complexity.
Q4: Is the machine compatible with Spain’s power supply?
A4: Yes, the machine can be customized to meet Spain’s standard power requirements (380V, 50Hz).
Q5: Are optional extras like punching systems and stackers available?
A5: Yes, optional extras such as stackers, remote PLC systems, and punching units can be integrated into the machine.
Q6: How does the machine ensure profile precision?
A6: The machine uses heat-treated GCr15 rollers and a PLC system to maintain precise control over profile dimensions.
Q7: What is the warranty period?
A7: Most manufacturers offer a warranty period of 1-2 years, covering parts and service.
Q8: Can the machine be used for custom profiles?
A8: Yes, the machine can be configured to produce custom profiles with specific dimensions.
Material: Galvanized steel, aluminum, or stainless steel
Material Thickness: 1.5 mm to 3.5 mm
Profile Types: C, Z, U-shaped purlins
Profile Width: Adjustable: 80 mm to 300 mm
Machine Speed: Up to 20-30 meters per minute
Rollers: High-quality GCr15 steel, heat-treated
Frame Size: Heavy-duty welded steel
Motor Power: 15 kW to 25 kW (varies by model)
Cutting System: Hydraulic cutting with high precision
Control System: PLC with touch-screen interface
Dimensions: Approx. 10 m x 1.5 m x 1.8 m
Weight: 8-12 tons (varies by model)
Power Supply: 380V, 50Hz (customizable for Spain’s power standards)
Optional Extras: Uncoilers, stackers, punching systems, remote control
