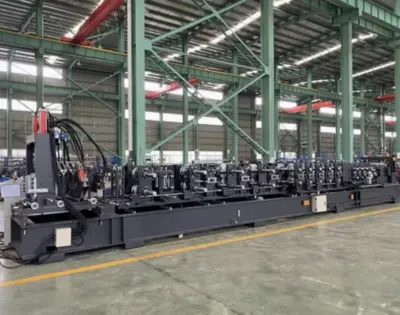

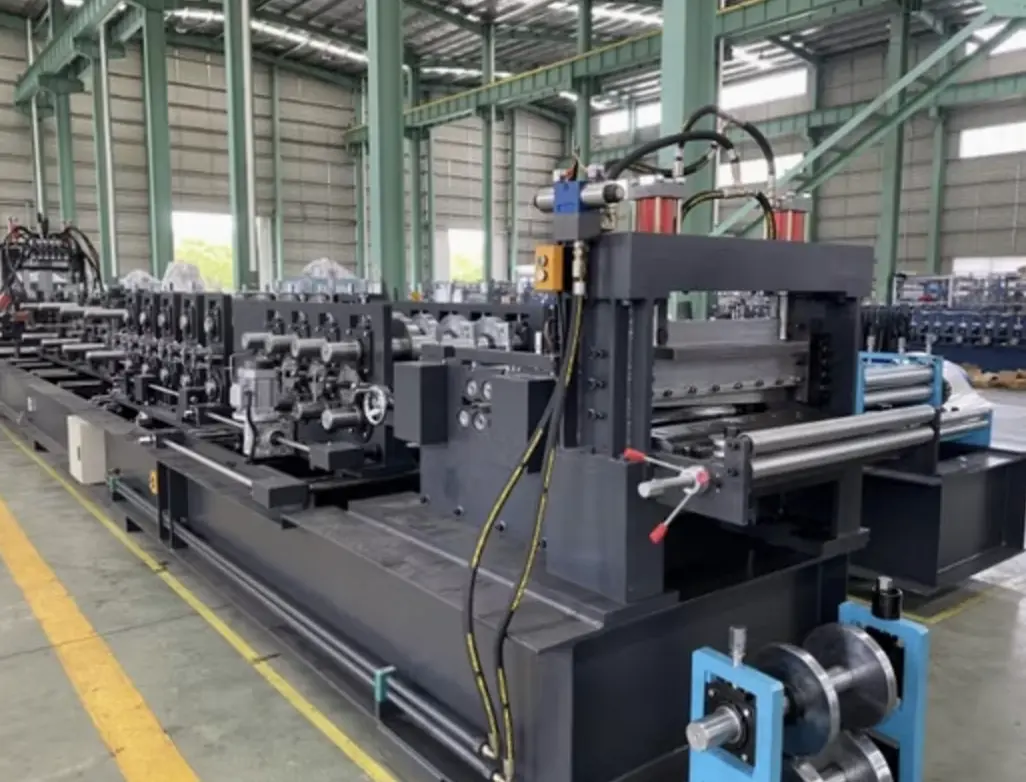

A Purlin Roll Forming Machine is a highly specialized and automated equipment designed to manufacture purlins—key structural components used in construction, especially for roofing and wall support systems. This machine can produce C, Z, and U-shaped purlins, depending on the die setup and material specifications. Purlins are commonly used in pre-engineered buildings, warehouses, and other industrial or commercial structures in Mexico due to their durability, strength, and adaptability.
Key Features
Automatic Size Adjustment: Modern machines allow switching between C, Z, and U purlins with minimal manual intervention.
High Speed: Speeds range from 20 to 40 meters per minute, ensuring efficient production.
Versatility: Supports a variety of materials such as galvanized steel, stainless steel, and aluminum.
Durable Construction: Built with heavy-duty steel for longevity and precision.
Why Purlin Roll Forming Machines Are Popular in Mexico
Growing Construction Industry: Mexico's expanding infrastructure and real estate projects demand high-quality purlins.
Cost Efficiency: Reduces material waste and labor costs, essential for competitive markets.
Customizability: Adaptable for specific project needs, such as lightweight structures for seismic areas.
Question and Answer Section
Q1. What are the most commonly used profiles for purlins in Mexico?
A1. The most common profiles are C and Z purlins, used for industrial buildings, warehouses, and roofing systems. U-shaped purlins are also used in specific projects.
Q2. What factors should I consider when buying a Purlin Roll Forming Machine in Mexico?
A2. Key factors include:
Material compatibility (thickness and type)
Voltage requirements for your area
Production speed and capacity
After-sales support and spare parts availability
Q3. Can this machine handle Mexico’s standard construction materials?
A3. Yes, Purlin Roll Forming Machines are designed to process materials commonly used in Mexico, such as galvanized steel and aluminum with appropriate yield strengths.
Q4. How does the machine adjust for different purlin sizes?
A4. Many machines feature automatic or semi-automatic size adjustment systems, reducing downtime when switching between profiles or dimensions.
Q5. Is training required to operate the machine?
A5. While the machine is user-friendly, basic training is recommended to ensure proper operation and maintenance. Most manufacturers offer training sessions.
Q6. How is maintenance handled?
A6. Regular maintenance includes lubricating moving parts, checking hydraulic oil levels, and ensuring that the rollers and shafts are clean and free of debris.
Q7. What is the lead time for purchasing and delivery in Mexico?
A7. The lead time typically ranges from 8–12 weeks, depending on the machine’s specifications and the manufacturer’s location.
Q8. Can this machine be customized for specific projects?
A8. Yes, most manufacturers offer customization options, including specific punching patterns, profile dimensions, and additional features like stackers or uncoilers.
Material Input
Material Type: Galvanized steel, stainless steel, aluminumThickness: 1.5 mm to 3.5 mmWidth: 80 mm to 300 mmYield Strength: Up to 345 MPa
Material Type: Galvanized steel, stainless steel, aluminum
Thickness: 1.5 mm to 3.5 mm
Width: 80 mm to 300 mm
Yield Strength: Up to 345 MPa

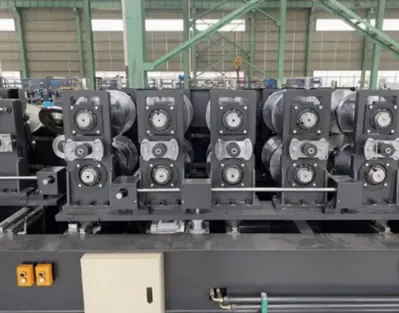

Forming System
Rollers Material: Chromium-coated steel for durabilityNumber of Rollers: 16–20 stations, depending on the profileRoller Shaft Diameter: 70 mm
Rollers Material: Chromium-coated steel for durability
Number of Rollers: 16–20 stations, depending on the profile
Roller Shaft Diameter: 70 mm
Punching and Cutting
Punching: Hydraulic punching system with servo controlCutting Type: Hydraulic or flying cut-off systemMaterial for Cutting Blade: Cr12MoV (heat-treated)
Punching: Hydraulic punching system with servo control
Cutting Type: Hydraulic or flying cut-off system
Material for Cutting Blade: Cr12MoV (heat-treated)
Drive and Power
Main Motor Power: 15–30 kW, depending on capacityHydraulic Station Power: 5.5–11 kWVoltage: 220V/380V/440V, adaptable for Mexico’s power grid
Main Motor Power: 15–30 kW, depending on capacity
Hydraulic Station Power: 5.5–11 kW
Voltage: 220V/380V/440V, adaptable for Mexico’s power grid
Control System
PLC: Fully automated control with user-friendly touchscreenAccuracy: ±1.0 mm for cutting and punchingBrands: Siemens, Delta, or Mitsubishi
PLC: Fully automated control with user-friendly touchscreen
Accuracy: ±1.0 mm for cutting and punching
Brands: Siemens, Delta, or Mitsubishi
Machine Speed
Production Speed: 20–40 meters per minute (profile dependent)
Production Speed: 20–40 meters per minute (profile dependent)
Dimensions and Weight
Machine Dimensions: 8 m x 1.5 m x 1.6 mWeight: Approximately 7–12 tons
Machine Dimensions: 8 m x 1.5 m x 1.6 m
Weight: Approximately 7–12 tons
