C Channel Roll Forming Machine Georgia USA

The C channel roll forming machine is a specialized industrial tool designed for the production of high-precision C channel profiles. These channels are widely used in construction, infrastructure, and industrial applications, offering structural support, framing, and reinforcement. The machine transforms metal coils into durable C channels with consistent dimensions, using advanced roll forming technology.
Ideal for industries in Georgia, USA, this machine supports local demands for construction materials, particularly in sectors like residential, commercial, and industrial building projects. Its ability to produce uniform profiles ensures quality and compliance with stringent U.S. standards.
Applications
Structural frameworks in residential and commercial buildings
Industrial racking and shelving systems
Solar panel mounting structures
Fencing and enclosure systems
Utility infrastructure support
Benefits for the Georgia Market
Local Manufacturing Support: Meets construction demands for cities like Atlanta, Savannah, and Augusta.

Cost-Effective: Reduces dependency on imported materials, minimizing costs.

Customization: Tailored profiles to match Georgia's architectural and structural needs.

Ease of Operation: User-friendly controls for skilled and semi-skilled operators.

Regulatory Compliance: Ensures profiles meet U.S. building codes and standards.
Setup and Installation
Site Requirements: Adequate space for machine placement, power connections, and safety enclosures.

Training: Comprehensive on-site operator training is provided.

Timeframe: Typically operational within 5-7 days after installation.
Maintenance
Daily: Inspect rollers and clean debris.

Weekly: Lubricate moving parts.

Monthly: Check alignment and calibrate settings.

Yearly: Replace hydraulic oil and inspect electrical connections.
Pricing
Basic Model: $50,000 - $60,000

Mid-Range Model with Extras: $70,000 - $90,000

High-End Model: $100,000+ (includes advanced automation and customization features)
Question and Answer Section
Q1: What industries commonly use C channels in Georgia?
A1: Industries such as construction, solar power, industrial shelving, and transportation use C channels for their durability and structural strength.
Q2: Can the machine produce custom sizes for specific projects?
A2: Yes, the machine can be programmed to produce custom sizes to meet project-specific requirements.
Q3: What is the production capacity of the machine?
A3: Depending on the material thickness and profile size, the machine can produce up to 15-30 meters of C channel per minute.
Q4: Does the machine comply with U.S. safety standards?
A4: Yes, the machine is designed to meet OSHA safety standards and includes safety guards, emergency stops, and enclosures.
Q5: Is financing available for buyers in Georgia?
A5: Financing options are often available through third-party providers or distributors, depending on the machine supplier.
Q6: What is the delivery time for the machine?
A6: Standard delivery time ranges from 4-6 weeks, depending on customization requirements.
Q7: Can the machine handle recycled materials?
A7: Yes, as long as the recycled material meets the specified thickness and strength requirements.
Conclusion
Investing in a C channel roll forming machine for the Georgia market offers businesses an efficient solution for high-quality production. Its robust design, user-friendly operation, and adaptability to local demands make it a vital asset for industries. With customization options, compliance with U.S. standards, and reliable support, this machine stands as a cornerstone for infrastructure development across Georgia.

Material Specifications
Material Types: Galvanized steel, carbon steel, stainless steel, aluminumMaterial Thickness: 0.5 mm to 3.0 mmMaterial Width: Up to 500 mmYield Strength: 235-550 MPa
Material Types: Galvanized steel, carbon steel, stainless steel, aluminum
Material Thickness: 0.5 mm to 3.0 mm
Material Width: Up to 500 mm
Yield Strength: 235-550 MPa
Machine Components
Rollers: High-grade chromium-coated steel (for durability and precision)Frame: Heavy-duty steel frame for vibration-free operationMotor: 7.5 kW - 15 kW, variable speedHydraulic Cutting System: Heat-treated blades for burr-free cutsPLC Control System: Touchscreen interface with automated settingsDecoiler: Manual or hydraulic, capacity up to 5 tonsLeveling Unit: Ensures material flatness for uniform profile production

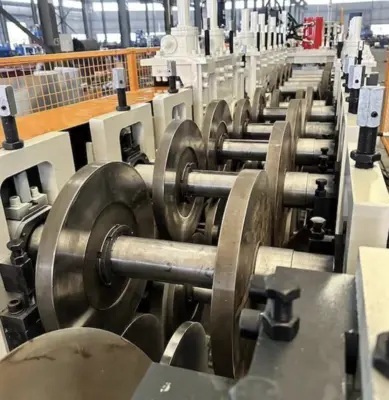

Rollers: High-grade chromium-coated steel (for durability and precision)
Frame: Heavy-duty steel frame for vibration-free operation
Motor: 7.5 kW - 15 kW, variable speed

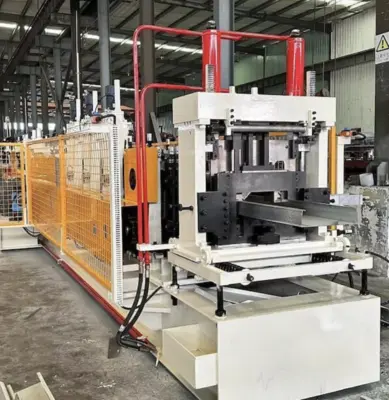

Hydraulic Cutting System: Heat-treated blades for burr-free cuts
PLC Control System: Touchscreen interface with automated settings
Decoiler: Manual or hydraulic, capacity up to 5 tons
Leveling Unit: Ensures material flatness for uniform profile production
Production Specifications
Profile Size: Customizable to meet local requirementsMachine Speed: 15-30 meters per minute (variable speed)Tolerance: ±0.5 mm for precise outputCutting Type: Hydraulic cutting with punch options
Profile Size: Customizable to meet local requirements
Machine Speed: 15-30 meters per minute (variable speed)
Tolerance: ±0.5 mm for precise output
Cutting Type: Hydraulic cutting with punch options
Optional Features
Automatic stackersCoil car for loading convenienceRemote monitoring through PLC systemEmbossing or logo printing units
Automatic stackers
Coil car for loading convenience
Remote monitoring through PLC system
Embossing or logo printing units
Power Requirements
Voltage: 220V/60Hz or 480V/60Hz, three-phase (customizable for the Georgia market)Total Power Consumption: 18-25 kW
Voltage: 220V/60Hz or 480V/60Hz, three-phase (customizable for the Georgia market)
Total Power Consumption: 18-25 kW
