Tube Z Purlin Roll Forming Machine India

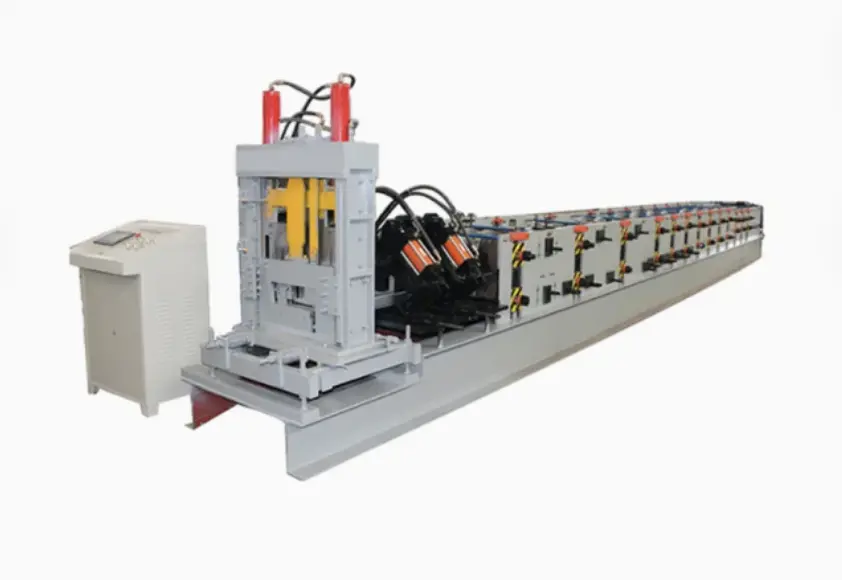

A Tube Z Purlin Roll Forming Machine is designed to produce Z-shaped purlins, commonly used as structural support elements in steel buildings, warehouses, and other industrial structures. Here's a detailed specification and description overview:
Machine Description
This Tube Z Purlin Roll Forming Machine efficiently produces Z-shaped profiles, with options for adjustable sizes if the machine has a size adjustment feature. The formed Z profiles have high structural strength and are designed for quick assembly in construction, reducing labor costs and time. The PLC control system provides easy operation with the ability to set the desired length, quantity, and batch processing, while the hydraulic cutting system ensures high precision and smooth finishing.
Features and Advantages
Precision and Durability: High-quality rollers ensure precision and reduce wear, leading to durable purlins.

Flexibility: Adjustable for different Z profile sizes with interchangeable rollers (if equipped).

Ease of Use: PLC and HMI-based control, suitable for both experienced operators and beginners.

High Production Efficiency: Consistent production speed and accuracy optimize production lines for large-scale projects.
This machine is ideal for manufacturers and contractors focused on steel construction and prefabricated building components, meeting high demands with consistent quality.

Material Specifications
Material Type: Galvanized steel, stainless steel, or other metal alloysMaterial Thickness: Typically 1.5-3.0 mm, depending on structural requirementsCoil Width: Ranges from 100 mm to 300 mm based on the profile requirementsYield Strength: 235-345 MPa for most construction standards
Material Type: Galvanized steel, stainless steel, or other metal alloys
Material Thickness: Typically 1.5-3.0 mm, depending on structural requirements
Coil Width: Ranges from 100 mm to 300 mm based on the profile requirements
Yield Strength: 235-345 MPa for most construction standards
Machine Components
Decoiler: Holds and unrolls metal coils; may be manual or hydraulic with a capacity of up to 5 tonsFeeding Guide: Ensures the material is fed accurately into the rollers for precisionRoll Forming System: Composed of multiple rolling stations, typically 12-18 stationsHydraulic Cutting System: Cuts the Z profile to length with high accuracy, powered by hydraulic pressure, with PLC controlControl System: PLC-based with an HMI (Human Machine Interface) touchscreen for easy control and adjustmentsHydraulic Station: Powers the cutting system and other hydraulic components, generally 5.5-7.5 kWOutput Table: Collects finished Z purlins, typically with a 6-meter capacity
Decoiler: Holds and unrolls metal coils; may be manual or hydraulic with a capacity of up to 5 tons
Feeding Guide: Ensures the material is fed accurately into the rollers for precision
Roll Forming System: Composed of multiple rolling stations, typically 12-18 stations
Hydraulic Cutting System: Cuts the Z profile to length with high accuracy, powered by hydraulic pressure, with PLC control
Control System: PLC-based with an HMI (Human Machine Interface) touchscreen for easy control and adjustments
Hydraulic Station: Powers the cutting system and other hydraulic components, generally 5.5-7.5 kW
Output Table: Collects finished Z purlins, typically with a 6-meter capacity
Performance Specifications
Forming Speed: Approximately 10-15 meters per minute (may vary with profile size and thickness)Cutting Tolerance: ± 1.5 mmPower Supply: 380V, 3-phase, 50Hz (configurable for other power supplies on request)
Forming Speed: Approximately 10-15 meters per minute (may vary with profile size and thickness)
Cutting Tolerance: ± 1.5 mm
Power Supply: 380V, 3-phase, 50Hz (configurable for other power supplies on request)
Machine Dimensions
Length: Approx. 9-12 metersWidth: Approx. 1.5-2 metersHeight: Approx. 1.5 metersWeight: Around 7-10 tons
Length: Approx. 9-12 meters
Width: Approx. 1.5-2 meters
Height: Approx. 1.5 meters
Weight: Around 7-10 tons
