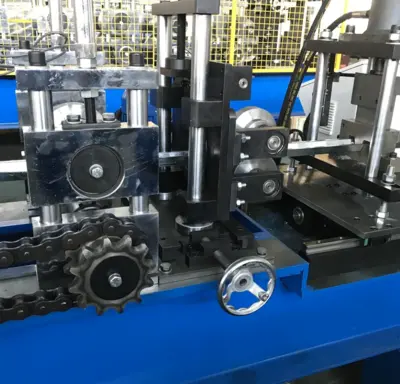

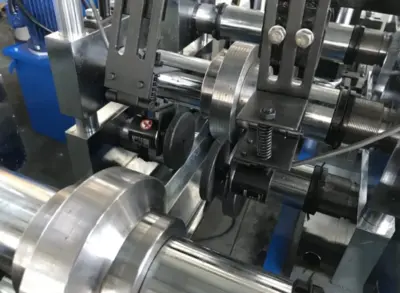

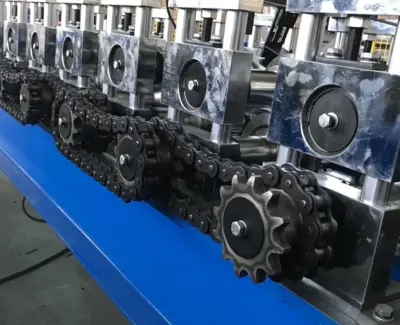

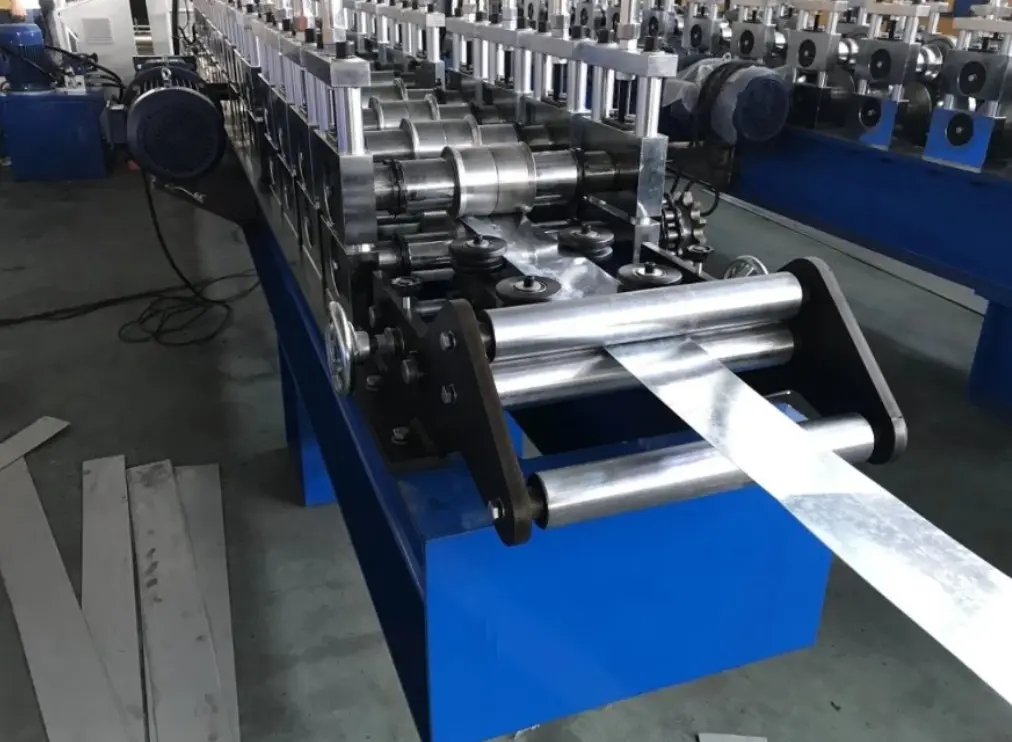

Cee Purlin Roll Forming Machine in Texas, USA

1
Suitable material
Color steel sheet ,galvanized steel sheet, aluminium sheet

2
Width of material
1000mm or as need

3
Thickness of material
1-3mm or as your needs

4
Working speed
0-25m/min

5
Electrical control system
PLC control system

6
Shaft diameter
90mm

7
Dimension
7500x1500x1910mm

8
Weight
About 6 T

9
Voltage
380V 3phase 50HZ or as the customer's requirements

10
Material of roller
High grade 45# forged steel plated with hard chrome plating

11
Material of cutting
Cr12 mould steel with quenched treatment
