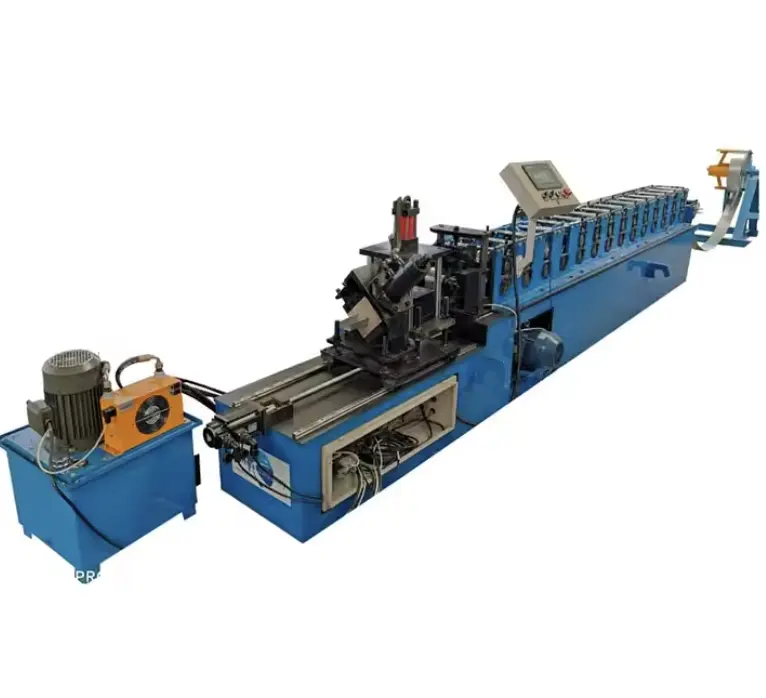

Channel Roll Forming Machine in the USA

No
TYPE
SPECIFICATION

1

Raw material

material
PPGI GI

Feeding width
as drawing

thickness

0.3-1.0mm

2

Decoiler
operate
manual

weight capacity
3ton

3

Roll forming machine

roller station
20

Diameter of shaft
55mm

Roller material
45# with 0.05mm chrome

Frame
steel sheet welding

Frame thickness
16mm

Cutting Material
Cr 12

Operation
automatic cutting

Working speed
15-20m/minute

4

Power
Driving way

chain

Main motor
4kw

Voltage
380v 50hz

5

Control systerm
Electric box
PLC control system, inventer

PLC brand
delta

Inverter brand
delta
