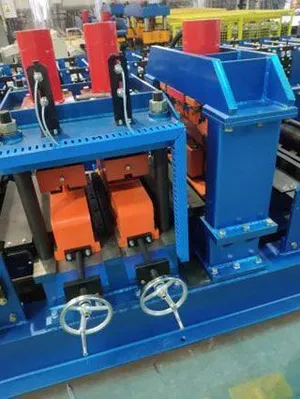

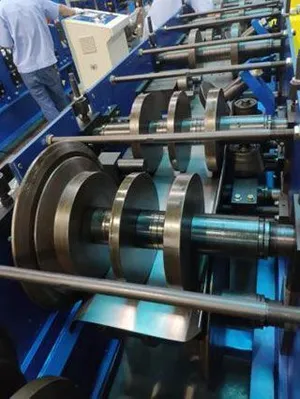

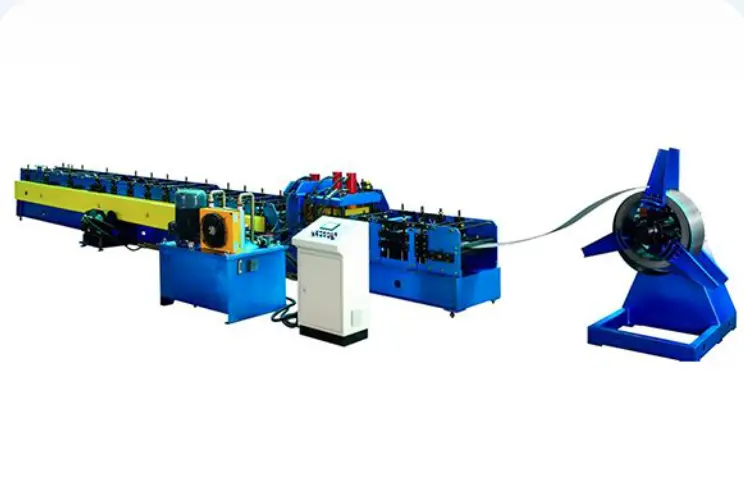

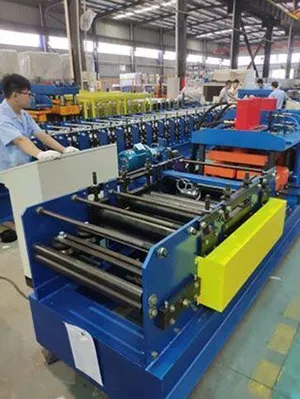

Purlin Roll Forming Machine in Shaoxing City, China

Our purlin forming machine is produced by using advanced cold bending, cold stamping, and automatic control technologies. The type of purlins you desire can be formed using this machine through the process of leveling, punching, cold forming, and cutting off. Featuring a wide application range, simple operation, high level of automation and low labor intensity, this forming equipment is very popular among our global customers. We can offer purlin machines of different specifications, models and configurations to meet your specific requirements.
Profile
C purlin

Purlin specification
80-300

Material
Type
Steel strip

Thickness(mm)
2.0-3.0

Yield strength(Mpa)
230-345

Forming speed(m/min)
10-15

Roller material
Bearing steel

Roller driven method
Chain transmission

Controller
PLC

Operation
Touch screen and button

Hydraulic system pressure(Mpa)
20

Hydraulic station motor power(KW)
5.5

Main motor power(KW)
18.5

Total power(KW)
24

Total weight(KG)
About 13000
