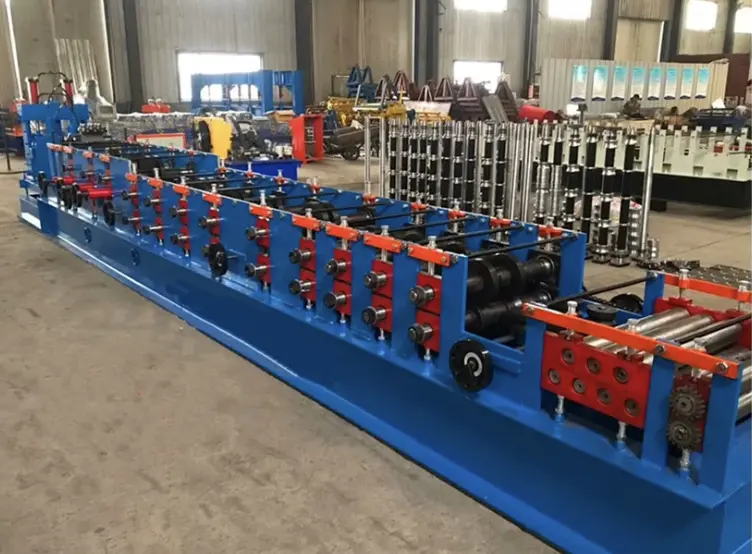

Purlin Roll Forming Machine in Mauritania

Suitable to process
Galvanized steel strips

2
Roller
16-18Rows

3
Dimensions
10500*1500*1600mm

4
Motor Power
22Kw

5
Pump Station Motor
5.5Kw.Lichao Brand

6
Thickness of the plate
1.0mm-3.0mm

7
Productivity
10-15m/min

8
Material of the cutting blade
Cr12MoV,Quenched treatment 58ºC-60ºC

9
Diameter of the roller
Φ85mm

10
Weight
About 8500kgs

11
Main structure of the machine
450H beams

12
Processing precision
Within 1.0mm

13
Side panel of machine
20 mm

14
Chain Wheel and Cycle Chain
2 Inch

15
Voltage
380V 50Hz 3phases or as customer's need

16
Control system
PLC control (Delta)

17
Frequency system
Delta

18
Drive mode
Motor driver

19
Touch screen
Delta

20
Rolling materials
45# forging steel with chromium plate

21
Length Tolerance
±2mm
