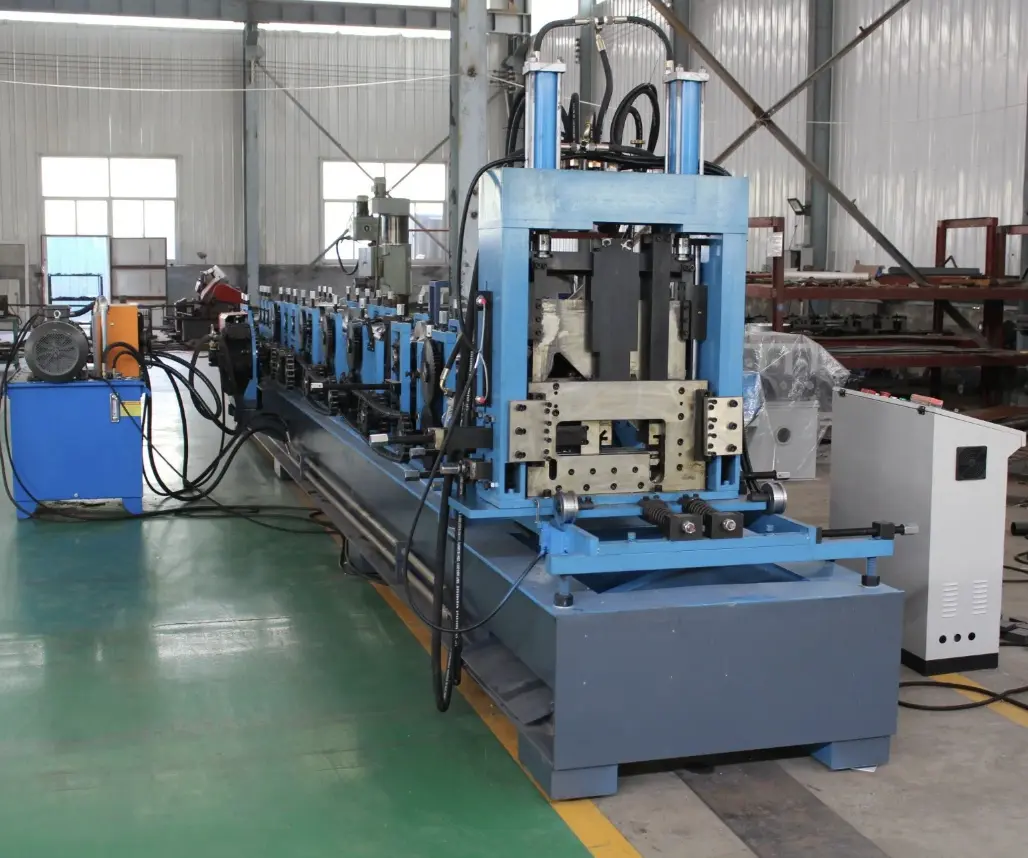

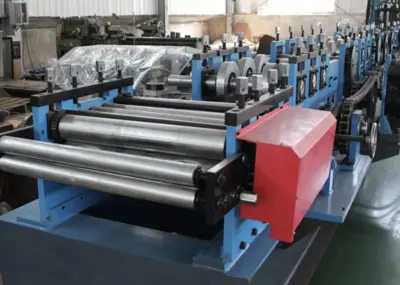

Purlin Roll Forming Machine in Nicaragua

Model Number
C purlin, 80-300 Z purlin 140-300

Suitable Material
hot rolled strip steel, Q235 or equivalent, 1.5-3.0 mm thickness

Material Width
175-465 mm

Dimension
about 9.9*1.20*1.5 m

Working Space
about 19.9*3.2 m

Length Of Sheet
You can set the length according to your need, such as 1.5m, 3.2m or 6.7m. It is controlled by PLC, and can ensure the accuracy of ±2mm.

Cutting
Automatically stop and cutting when it comes to the set length

Forming Speed
0-15 m/min

b. Components Details

Material
Gr15.

Main Frame
400 H steel. More stable, no shaking

Middle Plate
20 mm. we use bigger plates, to ensure stability

Chain
2 inch thickness

Shaft Material
Φ80 mm, high grade 45# steel.

Forming Steps
13

Detailed Forming Process
3 steps for leveling- 12 steps for roll forming-5 steps for adjusting height and width-1 step on the coil-output part for adjusting deviation-1 leveling step to make it straight.

Mold Cutting
Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting

Control System
Suitable power: 380V, 50 Hz, 3 phase or according to your need.

Screen: Delta 7 inch touch screen, easy to operate
PLC: Delta DVP24ES, well-adapted to various conditions, such as moisture, electromagnetic disturbance.
Frequency converter, Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy
Length measurement device: Omron, made in Japan. It features with high accuracy and stability
