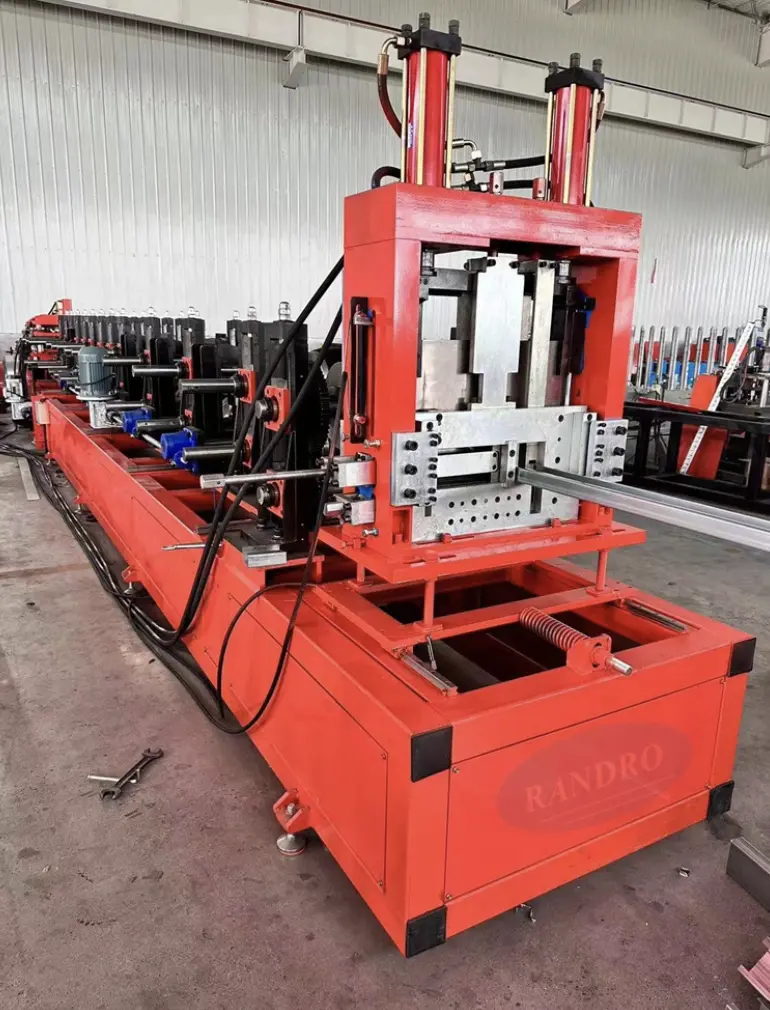

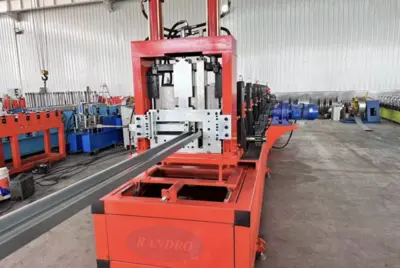

Galvanized Cold Rolled Steel CZ Profile Steel Channels Z Shape Purlin Roll Forming Machine
Part details
Item name
C & Z Purlin Roll Forming MachineCZ Shape Roll Forming MachineC and Z Size Interchangable Purlin Roll Forming Machine
Material
Row material
Galvanized,Steel etc
Size
80-305mm
Thickness
1-3mm
Machine
Roller material
Bearing steel heat treatment
Shaft material
Bearing steel heat treatment
Shaft diameter
80mm
Rack midplane
Cast iron archway-50mm
Color
Customized
Working speed
1-15m/min
Power
Driving way
Double row chain/Gear Box drive
Main power
15KW
Pump power
7.5KW
Inverter
17.5KW
Voltage
380V/50Hz 3P/Customized
Cutter
Material
Cr12
Operate
Hydraulic cutting
Control system
PLC brand
Delta
Screen
Touchable screen
Language
Chinese/English/Customized
Leveling part
Feeding
Guide shaft and guide wheel
Leveing
Two rows of rollers in the upper,
three rows of rollers in the down, two conveyors
Punching system
Size
Customized
Decoiler
Operation
Manual/electric/hydraulic
Weight capicatity
5T/8T/10T
Receiving table
Operation
Manual/electric
Length
3m
