Delivery Time:30 Days
Warranty:12 Months
Material Of Cutting Blade:Cr12
Type:Roof Sheet Roll Forming Machine
Cutting Mode:Hydraulic
Voltage:At Customer’s Request
Way Of Driven:Chain Transmission
Material:Steel Coil, Galvanized, PPGI, Aluminum
Speed:6-8m/min(including Punching And Cutting Time)
Control System:Panasonic/Mitsubishi PLC
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
We manufacture the machines as per clients` specific needs and provide insights about the machine and its working process. We also apply hydraulic transmission system in order to achieve stable running or production state. We supply purlin roll forming machine at competitive prices comparing to our counterparts throughout the world. We are honored to receive such great feedbacks from our previous customer and we further want to retain the quality for years to come.

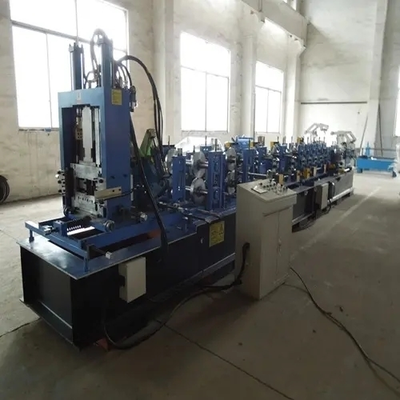

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table
Matching material
Steel coil, Galvanized, PPGI, Aluminum
Material thickness range
According to drawings
Main motor power
15KW
Forming speed
6-8m/min (include punching and cutting time)
Hydraulic power
5.5KW

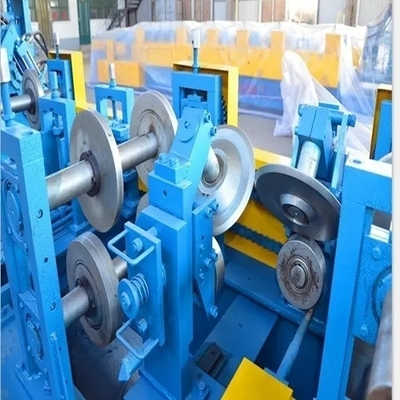

Quantity of rollers
About 18
Shaft diameter and material
70mm, material is 40Cr
Material of rollers
45# steel with chromed
Way of driven
chain transmission
Controlling system
PLC
Voltage
380V/30Phase/50Hz
Total weight
About 10 tons
Size of the machine
L*W*H 10m*1.2m*1.6m
