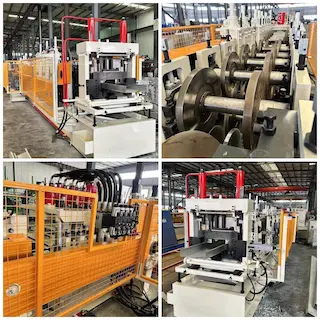

Steel Truss Purlin Roll Forming Machine in USA

The Steel Truss Purlin Roll Forming Machine is an advanced metalworking solution designed for producing truss and purlin profiles for the construction and industrial sectors in the USA. With its high speed, precision, and robust design, this machine is optimized to meet the growing demand for customized structural profiles in roofing, wall framing, and truss systems.
The machine operates efficiently under the rigorous power requirements prevalent in the USA, utilizing a 32Hp, 480v, 3-phase main power supply, ensuring seamless and reliable performance.
Key Features
Profile Range: Adjustable to produce profiles from 5" to 12".

Variable Coil Width: Adaptable to a range of input coil sizes.

High-Speed Production: Operates at 50–60 feet per minute, suitable for high-volume production.

Material Versatility: Handles variable material thicknesses for diverse structural applications.

Hydraulic Cutting: Equipped with a hydraulic shear system for precise, clean cuts.

Control System: Integrated Delta control system for accurate and automated operation.

Safety Covers: Full safety enclosures to ensure operator protection during operation.

Compact Design: Occupies a 60ft x 12ft footprint, making it suitable for medium to large manufacturing facilities.
Profiles Related to the Machine
Truss Profiles: Designed for structural framing in roofs and industrial buildings.

Sizes: Adjustable from 5" to 12".
Materials: Steel coils with variable thickness.
Applications: Roofing systems, bridges, and industrial facilities.

Purlin Profiles:

Used as structural components in wall and roof support systems.
Variable material thickness for flexibility in design.
Applications in the USA
This machine is ideal for:
Commercial and Residential Construction: High demand for durable roofing and wall systems.

Industrial Infrastructure: Manufacturing trusses and purlins for factories, warehouses, and steel structures.

Bridges and Highway Projects: Customized steel profiles for heavy-duty applications.
Question and Answer Section
Q1: What types of materials can the machine handle?
The machine can process a variety of steel materials with variable thicknesses, depending on the structural requirements.
Q2: Is the machine suitable for high-volume production?
Yes, with a forming speed of 50–60 feet per minute, the machine is designed for high-output manufacturing.
Q3: What is the power requirement for the machine in the USA?
The machine operates on 32Hp, 480V, 3-phase power, meeting the standard industrial power configurations in the USA.
Q4: How many stations does the machine have?
The machine is equipped with 21 forming stations for precise shaping and profiling.
Q5: What kind of cutting system is included?
The machine uses a hydraulic shear cutting system for clean and accurate cuts.
Q6: Are safety features included in the design?
Yes, the machine comes with safety covers to protect operators and reduce risks during operation.
Q7: What is the typical machine weight and footprint?
The machine weighs approximately 15 tons and has a footprint of 60ft x 12ft, suitable for most industrial facilities in the USA.

Profile Size: 5" to 12"
Coil Width: Variable
Forming Speed: 50–60 ft/min
Material Thickness: Variable
Machine Weight: 15 tons
Machine Footprint: 60ft x 12ft
Main Power: 32Hp - 480V - 3ph
Stations: 21
Cutting Type: Hydraulic shear
Control System: Delta
Safety Covers: Yes
