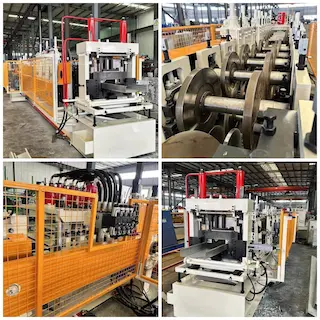

Structural Purlin Roll Forming Machine in Indiana, USA

The Structural Purlin Roll Forming Machine is a highly efficient and versatile industrial equipment designed for producing structural purlins used in various construction projects. Tailored to meet the demands of Indiana’s dynamic construction and manufacturing sector, this machine delivers precision, speed, and durability. The machine is capable of forming profiles from 5" to 12" with variable coil widths and material thicknesses, making it suitable for diverse applications such as commercial buildings, warehouses, and agricultural facilities.
Profiles for Structural Purlin Roll Forming Machine
Structural purlins are integral to the strength and stability of metal buildings. This machine can produce the following profile specifications:
Profile Width: 5" to 12"

Coil Width: Adjustable to accommodate various profile dimensions.

Forming Speed: High-speed production ranging between 50 to 60 feet per minute.

Material Thickness: Variable to suit lightweight to heavy-duty applications.
The flexibility of the profile dimensions allows for the production of both Z and C-shaped purlins, which are commonly used in roof and wall framing systems.
Machine Features
Hydraulic Shear Cutting: Provides clean and accurate cuts with minimal material waste.

21 Stations: Ensure precise forming and shaping of profiles.

Delta PLC Control System: Facilitates easy operation and enhanced automation.

Safety Covers: Protect operators and ensure compliance with safety regulations.

Variable Coil Width: Allows versatility in material input for diverse production needs.
Applications
Commercial construction (warehouses, malls)
Agricultural buildings
Industrial facilities
Residential projects requiring structural framing
Setup and Maintenance
Installation: Requires a stable foundation and sufficient space due to its 60ft x 12ft footprint. Power supply should match the 480V, 3-phase specification.

Maintenance: Includes regular lubrication of moving parts, inspection of hydraulic components, and software updates for the PLC system.
Question and Answer Section
Q1: What materials can this machine process?
A: The machine is designed to handle various materials, including galvanized steel, high-tensile steel, and aluminum, depending on thickness and coil width.
Q2: What is the average production capacity?
A: The machine produces profiles at a speed of 50 to 60 feet per minute, making it suitable for high-volume production.
Q3: Is it suitable for both Z and C purlins?
A: Yes, this machine is versatile and can produce both Z and C purlins with quick adjustments.
Q4: How is the machine powered?
A: The machine operates on a 32 HP motor with a power requirement of 480V, 3-phase, which is standard for industrial applications in Indiana.
Q5: Are safety features included?
A: Yes, the machine comes equipped with safety covers to protect operators and comply with safety regulations.
Q6: Can this machine handle heavy-duty applications?
A: Absolutely, with its robust build and variable material thickness capability, it is ideal for heavy-duty structural applications.
This Structural Purlin Roll Forming Machine is an excellent choice for Indiana-based manufacturers and contractors looking to produce high-quality purlins for diverse structural applications. With its state-of-the-art features and adaptability, it meets the evolving demands of the construction industry while ensuring reliability and safety.

Profiles: 5" to 12"
Coil Width: Variable
Forming Speed: 50 - 60 feet per minute
Material Thickness: Variable
Machine Weight: 15 tons
Machine Footprint: 60 feet x 12 feet
Main Power: 32 HP, 480V, 3-phase
Stations: 21
Cutting Type: Hydraulic shear
Control System: Delta PLC
Safety Covers: Yes
