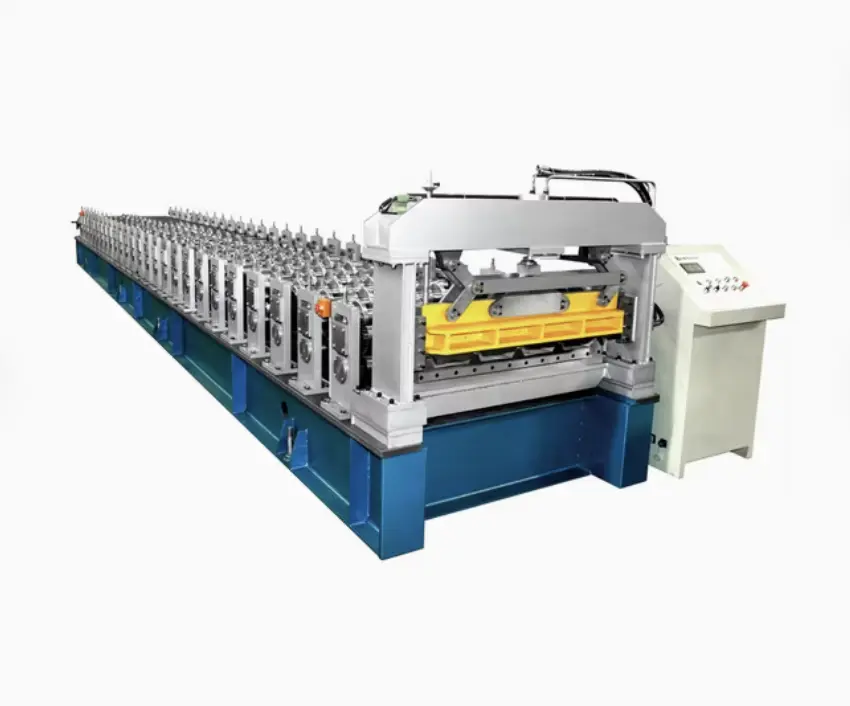

A Roofing Sheet Roll Forming Machine is a specialized industrial equipment used to manufacture high-quality metal roofing sheets in various profiles. These machines are designed for efficiency, precision, and reliability, making them ideal for the growing construction industry in Lithuania, where durable roofing solutions are in high demand due to varying weather conditions.
The machine processes metal coils into roofing sheets through continuous bending and shaping. It supports multiple roofing profiles such as trapezoidal, corrugated, and standing seam panels, making it versatile for residential, commercial, and industrial applications.
Applications in Lithuania
Residential Construction: Durable metal roofing solutions for houses.
Commercial Buildings: Roofing for warehouses, shopping centers, and offices.
Industrial Projects: Factories and workshops requiring robust roofing systems.
Questions and Answers
Q1: What types of roofing profiles can the machine produce?
A: The machine can produce profiles such as trapezoidal sheets, corrugated sheets, standing seam panels, and custom designs as per your requirements.
Q2: How do I customize the machine for Lithuania’s power supply?
A: The machine is customizable to operate on Lithuania’s standard 230V/50Hz power supply. During the order, specify your local power requirements, and the manufacturer will adjust the motor and PLC accordingly.
Q3: Is the machine easy to operate?
A: Yes, the machine comes with a user-friendly PLC touchscreen system, which allows operators to adjust settings, view production data, and troubleshoot issues.
Q4: What is the delivery time for the machine to Lithuania?
A: Depending on the configuration and manufacturer, delivery typically takes 45–60 days, including shipping and customs clearance in Lithuania.
Q5: How do I ensure the machine meets Lithuanian quality standards?
A: Reputable manufacturers adhere to international standards such as ISO and CE. Request certification documents before purchase to ensure compliance.
Q6: What maintenance does the machine require?
A: Regular lubrication of moving parts, cleaning of rollers, and inspection of the hydraulic and electrical systems are essential. Follow the manufacturer’s maintenance guide for optimal performance.
Q7: Can the machine produce sheets for export?
A: Yes, the machine can produce roofing sheets that meet international quality standards, making them suitable for export to neighboring countries like Latvia, Estonia, and Poland.
Q8: What is the warranty period?
A: Most manufacturers offer a 1–2 year warranty on mechanical components and 6–12 months on electrical systems. Confirm with your supplier for specific terms.
Material Input:
Coil Material: Galvanized steel, Pre-painted galvanized steel (PPGI), Aluminum, CopperCoil Width: 914mm–1250mm (customizable)Thickness: 0.3mm–1.2mm
Coil Material: Galvanized steel, Pre-painted galvanized steel (PPGI), Aluminum, Copper
Coil Width: 914mm–1250mm (customizable)
Thickness: 0.3mm–1.2mm
Rollers:
Material: High-grade steel (Cr12 or 45# steel) with hard chrome platingNumber of Stations: 14–24 (varies by profile)
Material: High-grade steel (Cr12 or 45# steel) with hard chrome plating
Number of Stations: 14–24 (varies by profile)
Machine Frame:
Material: Welded steel with heavy-duty constructionFrame Thickness: 18–22mm
Material: Welded steel with heavy-duty construction
Frame Thickness: 18–22mm
Forming Speed:
10–20 meters per minute (adjustable based on production needs)
10–20 meters per minute (adjustable based on production needs)
Cutting System:
Type: Hydraulic cutting systemBlade Material: Cr12 steel with heat treatmentCutting Tolerance: ±1mm
Type: Hydraulic cutting system
Blade Material: Cr12 steel with heat treatment
Cutting Tolerance: ±1mm
Drive System:
Motor: Servo motor or AC motor (3-phase, customizable for Lithuania’s 230V/50Hz power supply)Transmission: Chain or gear drive
Motor: Servo motor or AC motor (3-phase, customizable for Lithuania’s 230V/50Hz power supply)
Transmission: Chain or gear drive
Control System:
PLC System: Panasonic, Siemens, or DeltaInterface: Touchscreen with multiple language options (Lithuanian can be included)
PLC System: Panasonic, Siemens, or Delta
Interface: Touchscreen with multiple language options (Lithuanian can be included)
Dimensions and Weight:
Machine Size: 8m–12m (L) x 1.5m (W) x 1.5m (H)Weight: 6–10 tons (varies by configuration)
Machine Size: 8m–12m (L) x 1.5m (W) x 1.5m (H)
Weight: 6–10 tons (varies by configuration)
Extras:
Automatic uncoiler (5T or 10T capacity)Hydraulic pre-cutting systemRoll-forming stackers for easy sheet collectionRemote PLC control for troubleshooting
Automatic uncoiler (5T or 10T capacity)
Hydraulic pre-cutting system
Roll-forming stackers for easy sheet collection
Remote PLC control for troubleshooting
