Insulated Metal Roof Panel Cold Roll Forming Machine Florida

Insulated metal roof panels are essential in construction projects requiring energy efficiency, durability, and aesthetic appeal. A Cold Roll Forming Machine for producing these panels is designed to manufacture high-quality insulated panels with precision and efficiency, making it suitable for the Florida market's construction and climate requirements.
Machine Description

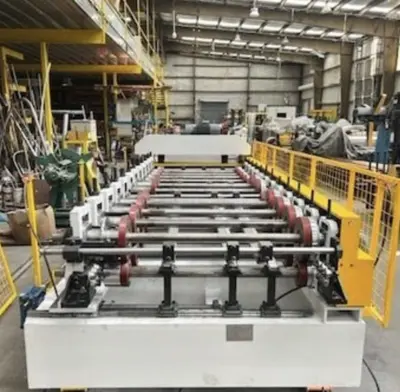

The Insulated Metal Roof Panel Cold Roll Forming Machine is engineered to create panels with an insulated core (often polyurethane, polystyrene, or mineral wool) sandwiched between two metal sheets. These panels provide superior thermal insulation, weather resistance, and structural strength, ideal for both residential and commercial applications in Florida.
Key features of the machine include advanced control systems, high-speed operation, and compatibility with various material thicknesses and insulation types. It ensures uniform panel dimensions, meeting industry standards for quality and performance.
Benefits for Florida Market
Energy Efficiency: Insulated panels reduce cooling and heating costs, ideal for Florida's climate.

Corrosion Resistance: High-quality steel and coatings withstand Florida’s humid environment and coastal salt exposure.

Customization: Supports various panel designs for residential, commercial, and industrial buildings.

High-Speed Production: Keeps up with large-scale construction demands.
Extras and Optional Features

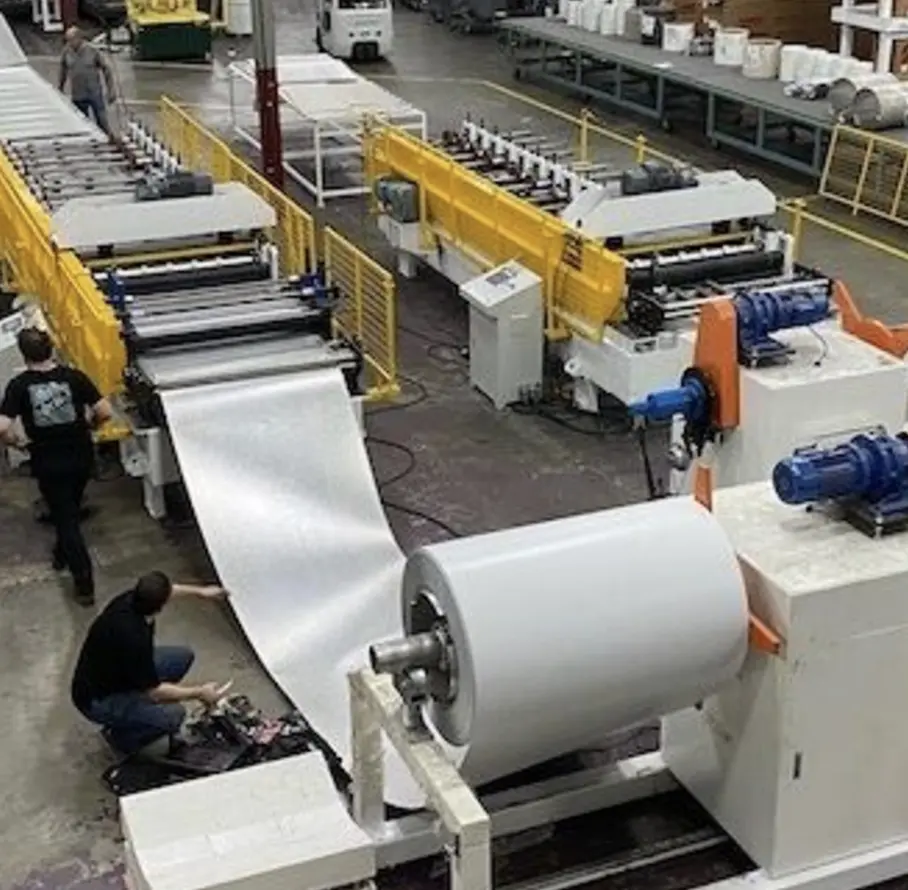

Coil Car and Decoilers: For efficient material feeding.

Automatic Stacking System: Stacks panels neatly after production.

Embossing and Perforation Units: Adds texture or ventilation to panels.

Insulation Injection System: Integrates insulation directly during production.
Setup and Installation
The machine is delivered with comprehensive installation guides and remote support. On-site training is provided to ensure proper operation and maintenance.
Maintenance Requirements
Regular Cleaning: Prevent dust and debris from accumulating in rollers and tracks.

Lubrication: Monthly lubrication of bearings, chains, and gears.

Inspection: Periodic checks on cutting blades and PLC functionality.

Replacement: Timely replacement of worn-out rollers or blades.
Question and Answer Section
Q1: What materials are compatible with this machine?
A: The machine supports various metals like galvanized steel, aluminum, and stainless steel. The insulation materials can include PU, EPS, and mineral wool.
Q2: How long does it take to produce one panel?
A: The production speed ranges from 5 to 15 meters per minute, depending on the panel type and material thickness.
Q3: Is this machine suitable for Florida’s coastal environment?
A: Yes, the machine produces panels with corrosion-resistant materials, ideal for humid and coastal climates.
Q4: Can the machine handle custom panel profiles?
A: Absolutely! The machine can be tailored to create custom profiles based on project specifications.
Q5: What are the power requirements for this machine?
A: The machine typically requires a 380V, 50Hz, 3-phase power supply, but it can be adjusted to meet local requirements in Florida.
Q6: Does the machine come with a warranty?
A: Yes, it typically comes with a 1–2 year warranty, covering manufacturing defects.

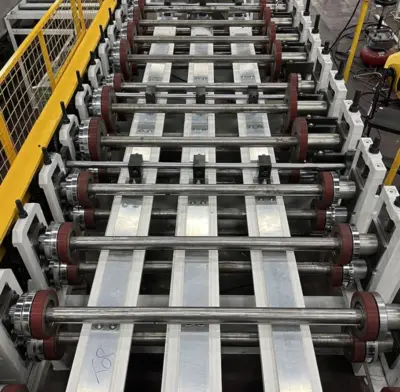

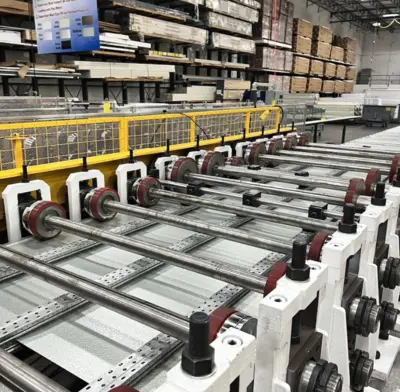

Rollers and Materials
Roller Material: High-quality chromium steel (heat-treated)Roller Stations: 18–30 stations, depending on the profile complexityRoller Surface Coating: Hard chrome plating for durability
Roller Material: High-quality chromium steel (heat-treated)
Roller Stations: 18–30 stations, depending on the profile complexity
Roller Surface Coating: Hard chrome plating for durability
Machine Frame
Material: Welded steel frameStructure: Heavy-duty H-beam
Material: Welded steel frame
Structure: Heavy-duty H-beam
Panel Specifications
Material Thickness: 0.4mm–1.2mm (metal layers)Insulation Core Thickness: 20mm–200mmMaterials for Insulation: Polyurethane (PU), Expanded Polystyrene (EPS), Mineral Wool
Material Thickness: 0.4mm–1.2mm (metal layers)
Insulation Core Thickness: 20mm–200mm
Materials for Insulation: Polyurethane (PU), Expanded Polystyrene (EPS), Mineral Wool
Cutting System
Type: Hydraulic cutting systemMaterial of Blade: Cr12Mov steel (heat-treated)Cutting Precision: ±1.0mm
Type: Hydraulic cutting system
Material of Blade: Cr12Mov steel (heat-treated)
Cutting Precision: ±1.0mm
Control System
PLC System: Fully automated with a user-friendly interface (brands like Siemens or Mitsubishi)Operation: Touchscreen and remote monitoringLanguages: English, Spanish (other languages optional)
PLC System: Fully automated with a user-friendly interface (brands like Siemens or Mitsubishi)
Operation: Touchscreen and remote monitoring
Languages: English, Spanish (other languages optional)
Drive and Motors
Main Motor Power: 7.5kW–15kW (depending on panel type)Hydraulic Motor Power: 4.0kW–7.5kWDrive System: Chain or gear-driven
Main Motor Power: 7.5kW–15kW (depending on panel type)
Hydraulic Motor Power: 4.0kW–7.5kW
Drive System: Chain or gear-driven
Machine Speed
Production Speed: 5–15 meters per minute (adjustable)
Production Speed: 5–15 meters per minute (adjustable)
Dimensions and Weight
Machine Size: 12m × 1.5m × 1.5mWeight: 12–20 tons
Machine Size: 12m × 1.5m × 1.5m
Weight: 12–20 tons
Safety Features
Emergency stop buttonsSafety guards around rollers and cutting systemsOverload protection
Emergency stop buttons
Safety guards around rollers and cutting systems
Overload protection
