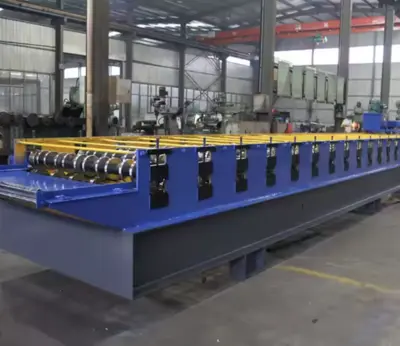

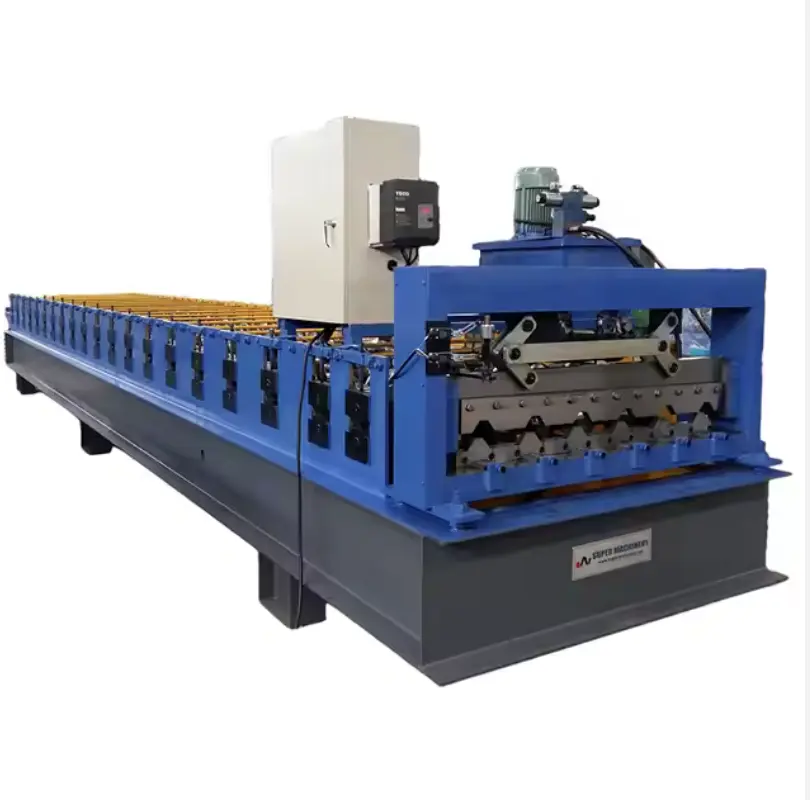

Metal Sheet IBR Roll Forming Machine in China

View more information and all machines from this supplier here
Production Capacity

12 m/min

Place of Origin

Jiangsu, China

Weight

7000 kg

Warranty

3 years

Key Selling Points

Easy to Operate

Core Components

Motor, Bearing, Pump, PLC

Brand Name

Super

Dimension(L*W*H)

8600*1500*1300mm

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Uncoiler

Manual Uncoiler

Loading weight

5tons

Forming Speed

8~15m/min

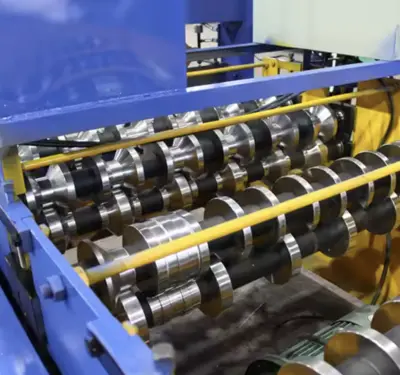

Forming steps

16stations

Materials of shafts

45# high quality steel

Diameter of Shafts

70mm

Roller materials

45#steel with hard chrome coated 0.05mm

Transmission

chains-sprockets

Motor power

11kw

Control system

PLC
