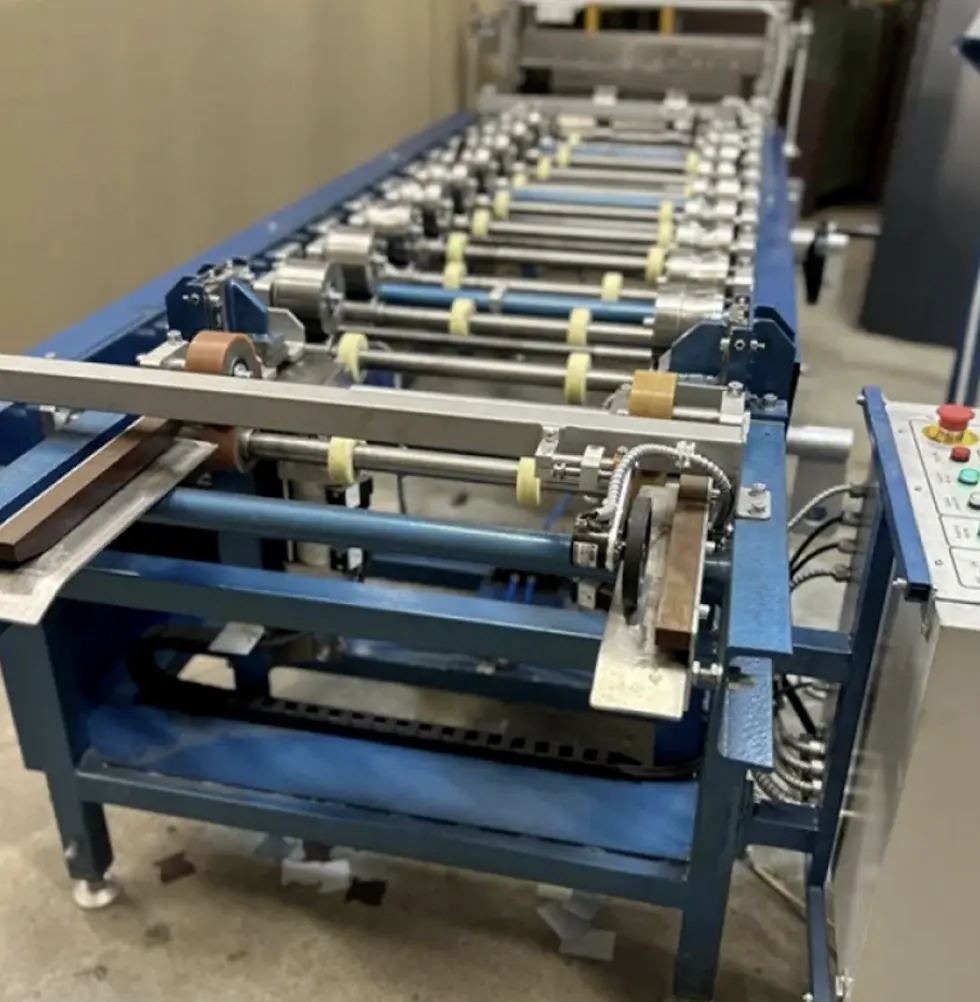

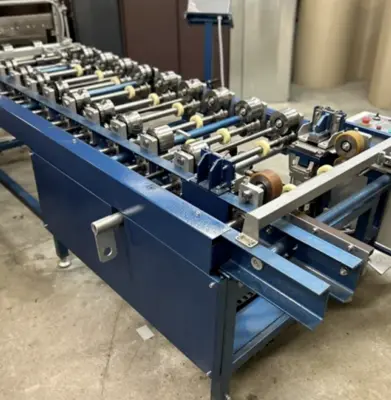

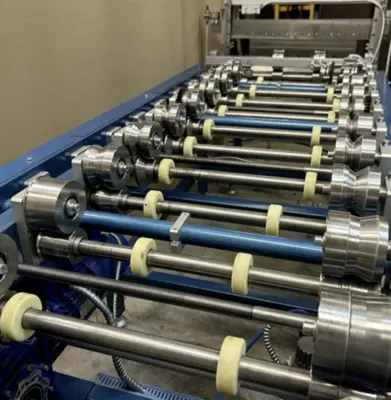

The standing seam roll forming machine operates by feeding metal coils into the machine, where they pass through a series of rollers that shape the metal into the desired standing seam profile. The machine includes various cutting, punching, and profiling components, ensuring high-quality and consistent panel production.
Features of Standing Seam Roll Forming Machines:
High Precision: Ensures consistent panel dimensions and quality.
Automated Control: Equipped with a PLC system for easy operation and high efficiency.
Durable Build: Built with high-grade steel for extended machine life.
Flexibility: Can handle a variety of materials such as aluminum, galvanized steel, and pre-painted steel.
Profile Description
Standing Seam Profile:
Materials: Galvanized steel, aluminum, pre-painted steel.
Widths: Customizable to client requirements, typically 300mm to 600mm.
Thickness Range: 0.4mm to 1.0mm.
Applications: Roofing systems for industrial, commercial, and residential projects in Colombia.
Setup and Installation
Machine Placement: Install on a stable, vibration-free foundation.
Electrical Connection: Ensure compatibility with local power standards.
Coil Loading: Load the metal coil onto the uncoiler.
Calibration: Adjust rollers and cutters according to profile specifications.
Test Runs: Conduct a test run to ensure proper alignment and production quality.
Maintenance Requirements
Daily: Clean rollers and cutters to prevent debris buildup.
Weekly: Inspect for wear and tear on moving parts.
Monthly: Check hydraulic oil levels and PLC system for updates.
Annually: Conduct a comprehensive service and replace worn-out components.
Common Questions and Answers
Q1: What materials can the standing seam roll forming machine handle?
A: It can process galvanized steel, aluminum, and pre-painted steel, commonly used in Colombia's roofing industry.
Q2: Is the machine suitable for Colombia's power supply?
A: Yes, the machine can be customized for Colombia's power standards, whether 110V, 220V, or 380V.
Q3: How fast can the machine produce panels?
A: The production speed ranges from 15 to 30 meters per minute, depending on material thickness and profile.
Q4: Are spare parts available locally in Colombia?
A: Many parts, such as cutters and rollers, are available globally and can be shipped to Colombia.
Q5: Does the machine support profile customization?
A: Yes, the machine can be adjusted to produce custom widths and profiles as per customer requirements.
Q6: What industries in Colombia commonly use standing seam panels?
A: Construction, agriculture, and commercial real estate sectors use these panels extensively for durable and weather-resistant roofing.
Conclusion
A standing seam roll forming machine is an essential investment for Colombian industries that demand high-quality and efficient roofing solutions. With customizable features and robust construction, these machines cater to the diverse needs of Colombia's construction market, ensuring long-term reliability and performance.
Roller Material: High-grade steel with chrome plating for durability and precision
Frame Size: Heavy-duty steel frame to minimize vibration and improve stability
Material Thickness: 0.4mm to 1.0mm
Material Width: 300mm - 600mm (adjustable based on requirements)
Cutting System: Hydraulic cutting system for smooth and burr-free cuts
Motor Power: 5kW to 10kW (varies based on machine size and requirements)
Control System: PLC control with touchscreen interface
Machine Speed: 15-30 meters per minute
Power Supply: Customized to Colombian standards (110V/220V/380V, 50Hz or 60Hz)
Safety Features: Enclosures, emergency stop buttons, and safety guards
Optional Features: Remote PLC control, automatic stacker, and coil handling systems
