Roof panel roll forming machines are essential tools in the construction and metal roofing industry. These machines are designed to produce high-quality, durable, and aesthetically pleasing roof panels used in commercial, residential, and industrial structures. This blog provides an in-depth overview of the machine's description, specifications, and frequently asked questions relevant to buyers in the USA.

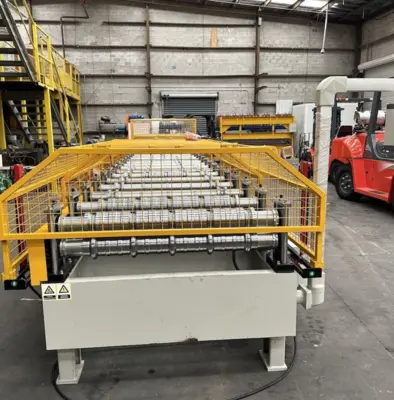

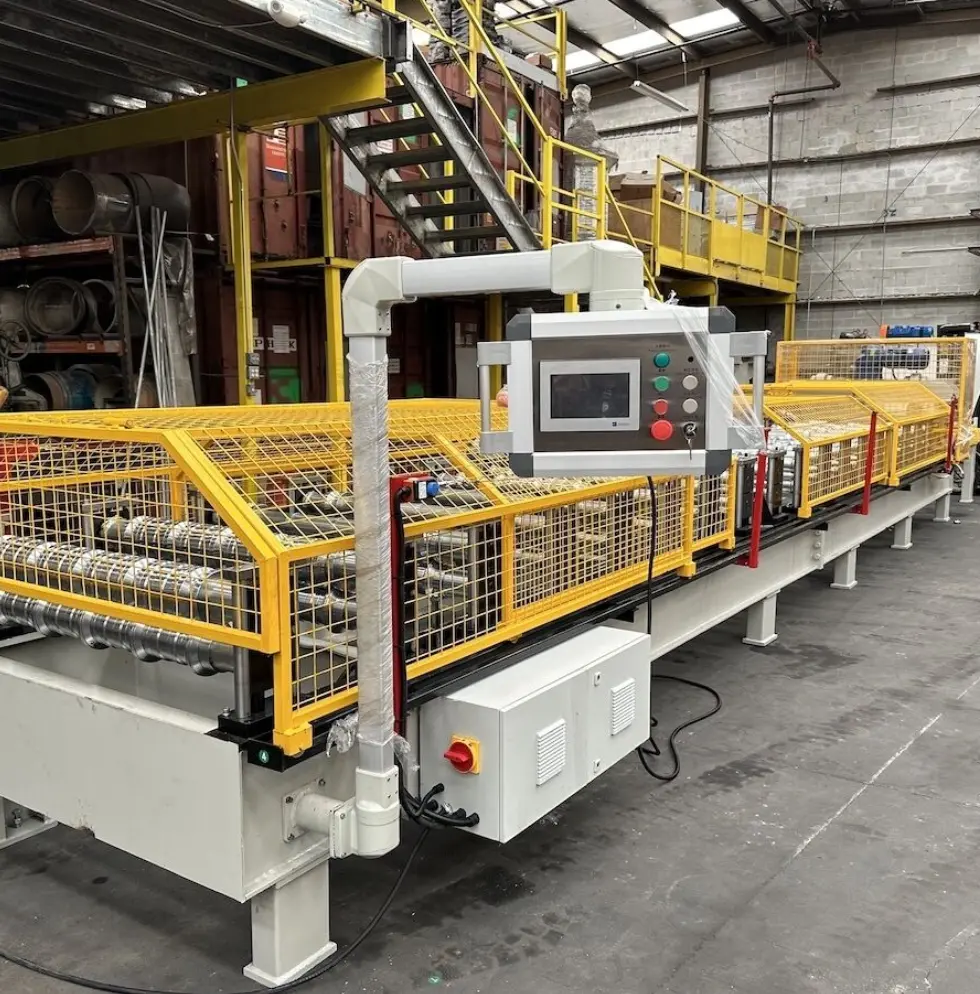

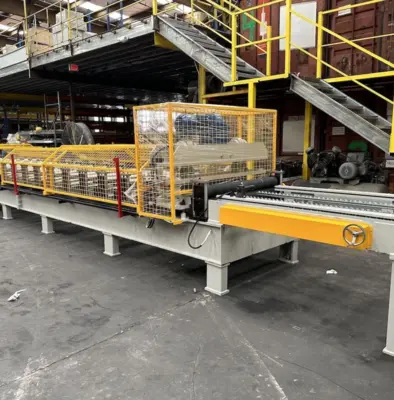

Description of Roof Panel Roll Forming Machine
A roof panel roll forming machine is a highly efficient, automated system that converts metal coils into continuous lengths of roof panels. The process involves feeding a metal coil into the machine, where rollers gradually shape the material into the desired profile.
These machines are designed to produce various roofing profiles, such as standing seam, corrugated, or ribbed panels. The end products are lightweight, weather-resistant, and easy to install, making them ideal for roofing applications in different climatic conditions.
Key Features:
High Production Efficiency: Capable of producing panels at speeds of up to 30-50 meters per minute.
Customization: Adjustable rollers to create diverse panel profiles and sizes.
Durability: Made with robust materials for long-term use.
Precision: Advanced control systems ensure accurate dimensions and consistent quality.
Ease of Use: User-friendly interfaces for easy operation and maintenance.
General Specifications
Material: Galvanized steel, aluminum, and pre-painted steel
Material Thickness: 0.3 mm to 1.0 mm (customizable)
Profile Width: 600 mm to 1200 mm (customizable depending on panel type)
Production Speed: 30-50 meters per minute
Power Supply: 220V/60Hz or 380V/50Hz (customized based on U.S. standards)
Machine Components
Decoiler:
Capacity: Up to 10 tons
Type: Manual or hydraulic
Roller System:
Material: High-grade 45# steel, chrome-plated for durability
Number of Rollers: 16-20 stations, depending on the profile
Cutting System:
Type: Hydraulic or servo-driven cutting
Blade Material: Cr12Mov steel, heat-treated for precision and longevity
Control System:
PLC system with touchscreen interface
Brands: Siemens or Mitsubishi (common in U.S. machines)
Drive System:
Motor Power: 5.5 kW to 11 kW, depending on machine size
Drive Type: Gearbox or chain drive
Safety Features:
Emergency stop buttons
Protective enclosures for rollers and cutters
Optional Accessories:
Automatic stacker
Remote PLC control system
Coil car tipper for easier loading
Frequently Asked Questions (FAQs)
Q1: What profiles can this machine produce?
A roof panel roll forming machine can produce various profiles, including standing seam panels, ribbed panels, and corrugated panels. The specific profiles depend on the roller design and customization options.
Q2: Can the machine work with U.S. power supply standards?
Yes, these machines can be configured for the U.S. power supply standards of 220V/60Hz or 380V/50Hz. Ensure to specify your requirements when placing an order.
Q3: How long does it take to set up and install the machine?
Installation typically takes 2-3 days, depending on the complexity of the machine and the availability of necessary utilities (e.g., power and space).
Q4: What is the typical cost of a roof panel roll forming machine in the USA?
The price ranges from $50,000 to $150,000, depending on the machine's specifications, additional features, and customization.
Q5: Is maintenance required frequently?
Regular maintenance ensures the machine operates at optimal efficiency. Routine tasks include lubricating moving parts, inspecting the rollers and cutters, and ensuring the PLC system is functioning correctly.
Q6: What is the warranty period for these machines?
Most manufacturers offer a 12-24 month warranty covering key components like the rollers, cutters, and motors.
Q7: Can the machine handle high-volume production?
Yes, with production speeds of up to 50 meters per minute, these machines are suitable for high-volume manufacturing environments.
Conclusion
Roof panel roll forming machines are indispensable for producing high-quality roofing materials efficiently. Whether you’re a contractor, supplier, or manufacturer in the USA, investing in a reliable roof panel roll forming machine can significantly enhance your production capacity and product quality. Consider your specific requirements, including profile type, material thickness, and production speed, when choosing a machine.
For further details or a customized quote, feel free to contact Machine Matcher, your trusted source for roll forming machines in the U.S. and beyond.
Specifications of Roof Panel Roll Forming Machine
Here are the detailed specifications of a typical roof panel roll forming machine tailored for the U.S. market:
