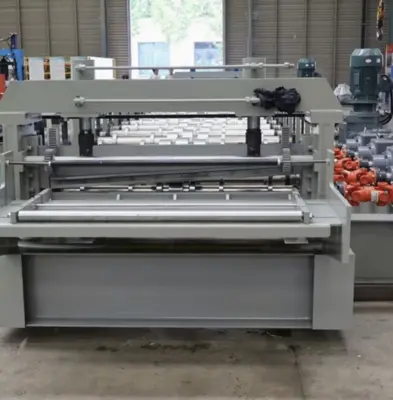

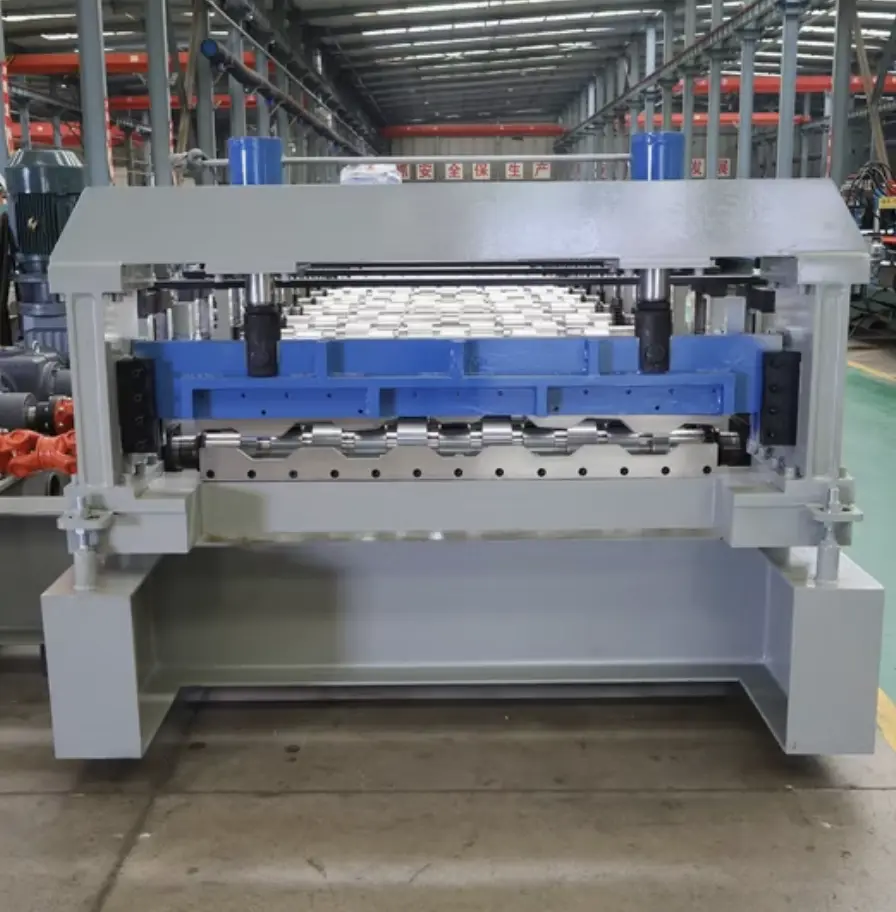

Metal Roof Roll Forming Machine Philippines

A metal roof roll forming machine is a high-performance equipment used to fabricate metal roofing sheets with precision. These machines are widely employed in construction and industrial applications to produce roof panels that are durable, weather-resistant, and aesthetically pleasing. The process involves feeding metal coils into the machine, which then forms the desired profile through successive roller dies.
This machine is ideal for producing roofing sheets in various designs, including trapezoidal, corrugated, and standing seam profiles. With the ability to work with a range of materials such as steel, aluminum, and galvanized metal, metal roof roll forming machines offer versatility for different roofing needs.
Key Features
High-speed production
Precision in forming profiles
Customizable to produce various roof panel designs
Automated controls for ease of use
Durable construction to handle heavy-duty operations
Question and Answer Section
1. What materials can the metal roof roll forming machine work with?
The machine is compatible with steel (galvanized, pre-painted, or plain), aluminum, and other metals with thicknesses ranging from 0.3mm to 0.8mm.
2. Can the machine produce multiple roofing profiles?
Yes, the machine can be customized to produce various profiles like trapezoidal, corrugated, or standing seam. However, switching between profiles may require additional tooling or a changeover setup.
3. How is the cutting operation handled?
The machine uses a hydraulic cutting system with blades made of Cr12 steel, known for its durability and precision. The cutting is synchronized with the PLC system to ensure accuracy.
4. What is the production speed of the machine?
The production speed varies based on the profile and material but typically ranges from 15 to 45 meters per minute.
5. Is the machine easy to operate?
Yes, the machine features a user-friendly PLC system with an HMI touchscreen. Operators can easily input parameters like length, quantity, and speed.
6. What optional extras are available for this machine?
Optional extras include:
Automatic decoiler and recoiler
Coil car for material handling
Stacking system for finished products
Remote PLC monitoring for operational control
7. What maintenance is required?
Regular maintenance includes:
Lubricating moving parts
Cleaning rollers and cutting blades
Inspecting electrical and hydraulic components
Replacing worn-out parts like blades or rollers
8. What industries commonly use this machine?
Industries such as construction, roofing contractors, and industrial building manufacturers commonly use this machine to produce high-quality roofing panels.
9. How can I ensure the machine meets my power supply requirements?
The machine’s power supply can be customized based on your country’s specifications, such as 220V, 380V, or 415V.

Roller Material: High-grade steel with chrome coating for durability and smooth operation
Frame Size: Heavy-duty steel frame to ensure stability

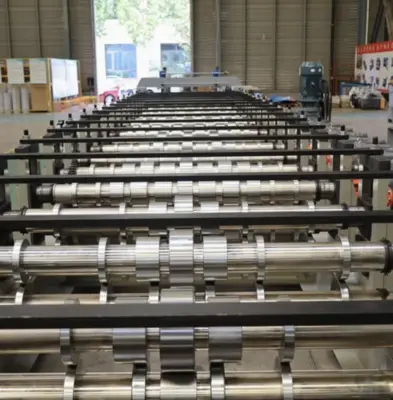

Roller Stations: 14–20 stations (varies depending on the profile)
Material Thickness: 0.3mm – 0.8mm
Material Width: Up to 1250mm
Profile Types: Trapezoidal, corrugated, standing seam
Motor Power: 7.5 kW to 15 kW, depending on the production speed
Cutting System: Hydraulic cutting with blade made of Cr12 steel
PLC System: Fully automated with HMI touchscreen interface
Machine Speed: 15–45 m/min
Power Supply: 380V/50Hz (customizable based on country requirements)
Safety Features: Safety guards, emergency stop button
Optional Extras: Decoiler, recoiler, stacker, coil car, remote monitoring
