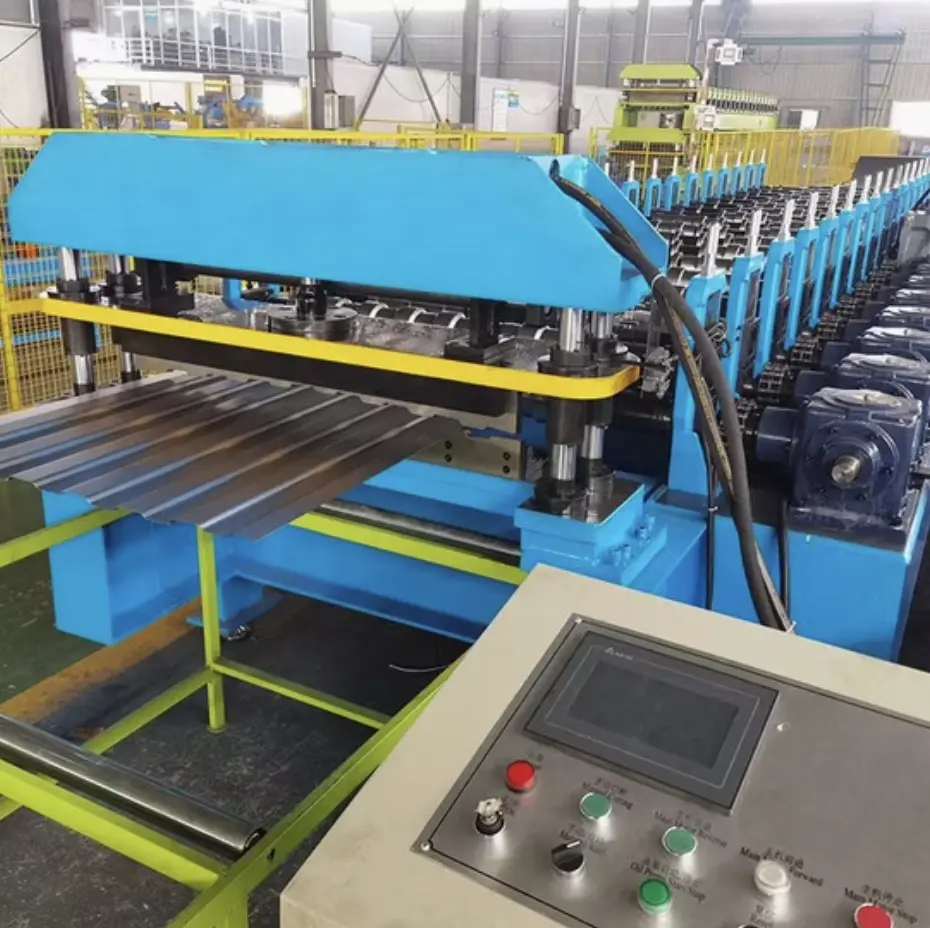

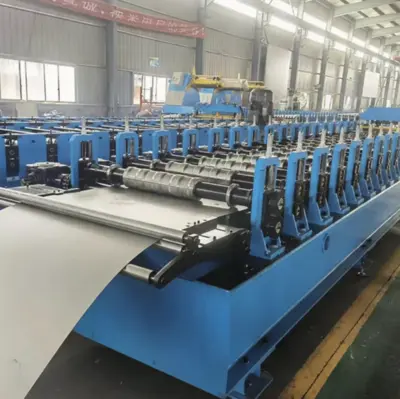

Wall Panel Roll Forming Machine Philippines

The Wall Panel Roll Forming Machine is a highly efficient and versatile solution for producing high-quality wall panel profiles used in residential, commercial, and industrial construction. These machines are designed to handle various materials, including galvanized steel, aluminum, and pre-painted steel, to create wall panels with precise dimensions and consistent quality. Equipped with advanced technology, these machines can produce a wide range of wall panel profiles to meet diverse customer needs.
The machine operates with a fully automated system controlled by a PLC, ensuring high-speed production and minimal human intervention. Its robust construction and precise engineering make it ideal for large-scale production and custom requirements.
Question and Answer Section
Q1: What types of wall panels can this machine produce?
A1: The Wall Panel Roll Forming Machine can produce a variety of wall panel profiles, including trapezoidal, ribbed, and corrugated panels, suitable for different architectural and structural applications.
Q2: What materials are compatible with this machine?
A2: The machine can process galvanized steel, aluminum, pre-painted steel, and stainless steel with thicknesses ranging from 0.4 mm to 1.2 mm.
Q3: How does the machine ensure accuracy in production?
A3: Accuracy is ensured through a combination of high-precision rollers, a hydraulic cutting system, and a PLC control system that monitors and adjusts operations in real-time.
Q4: What is the maximum speed of the machine?
A4: The production speed ranges from 10 to 20 meters per minute, depending on the material and profile complexity.
Q5: Are customization options available for the profiles?
A5: Yes, the machine can be customized to produce specific profile designs based on customer requirements.
Q6: What are the maintenance requirements for this machine?
A6: Regular maintenance includes lubrication of moving parts, inspection of rollers and cutting blades for wear, and periodic cleaning of the machine to ensure consistent performance.
Q7: Is training provided for operating the machine?
A7: Most manufacturers provide training and user manuals to ensure safe and efficient operation of the machine.
Q8: Can the machine be integrated with existing production lines?
A8: Yes, the Wall Panel Roll Forming Machine can be integrated into existing production lines, and optional automation features are available to enhance compatibility.

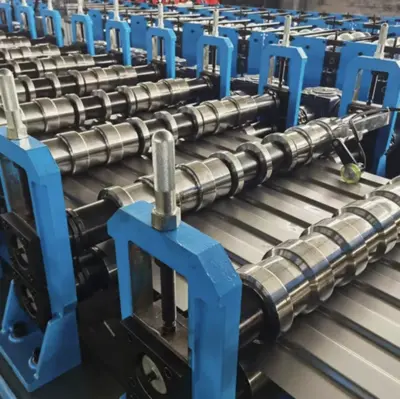

Roller Materials:High-grade chrome-coated steel rollers for durability and smooth profile formation.Heat-treated for long life and resistance to wear.
High-grade chrome-coated steel rollers for durability and smooth profile formation.
Heat-treated for long life and resistance to wear.
Frame Size:Heavy-duty steel structure with precise alignment for stability during operation.Frame thickness: 18-20 mm for robust performance.
Heavy-duty steel structure with precise alignment for stability during operation.
Frame thickness: 18-20 mm for robust performance.
Punching and Notching System:Hydraulic punching and notching integrated for accuracy.Adjustable to suit different profile designs.
Hydraulic punching and notching integrated for accuracy.
Adjustable to suit different profile designs.
Motor and Power:Main drive motor: 5-15 kW (varies based on the machine model).Servo motors for precision cutting and punching.
Main drive motor: 5-15 kW (varies based on the machine model).
Servo motors for precision cutting and punching.
Cutting System:Hydraulic cutting mechanism for clean and burr-free cuts.Cutting blades made of high-strength steel.
Hydraulic cutting mechanism for clean and burr-free cuts.
Cutting blades made of high-strength steel.
PLC Control System:Advanced PLC control with touchscreen interface.Supports multiple languages and real-time monitoring.
Advanced PLC control with touchscreen interface.
Supports multiple languages and real-time monitoring.
Machine Speed:Production speed: 10-20 m/min (depending on the profile complexity and material).
Production speed: 10-20 m/min (depending on the profile complexity and material).
Safety Features:Safety guards and emergency stop buttons.Compliance with international safety standards.
Safety guards and emergency stop buttons.
Compliance with international safety standards.
Material Specifications:Material thickness: 0.4 mm to 1.2 mm.Material width: Up to 1250 mm.Materials: Galvanized steel, aluminum, pre-painted steel, and stainless steel.
Material thickness: 0.4 mm to 1.2 mm.
Material width: Up to 1250 mm.
Materials: Galvanized steel, aluminum, pre-painted steel, and stainless steel.
Additional Features:Automatic stackers for product handling.Optional remote PLC control for off-site operation.Coil handling systems for easy loading and unloading.
Automatic stackers for product handling.
Optional remote PLC control for off-site operation.
Coil handling systems for easy loading and unloading.
