1. Machine Overview

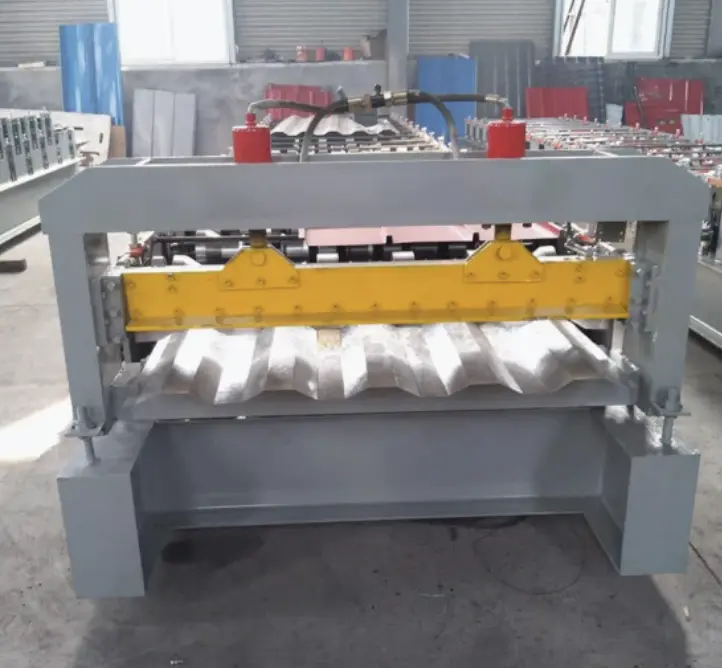

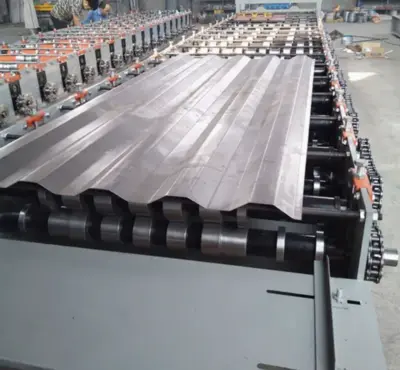

A metal wall panel roll forming machine is designed to produce metal wall panels, typically used for building cladding, interior walling, and sometimes roofing. It offers precision forming with high-speed capabilities to create custom profiles suited for wall panels.
2. Technical Specifications
Material Compatibility:
Material: Galvanized steel, aluminum, copper, or stainless steel
Thickness Range: 0.3 - 1.2 mm (varies by material type)
Width Range: Up to 1250 mm (adjustable according to panel design)
Machine Structure:
Frame: Heavy-duty steel construction for stability
Rollers: Chrome-coated steel rollers for durability and corrosion resistance

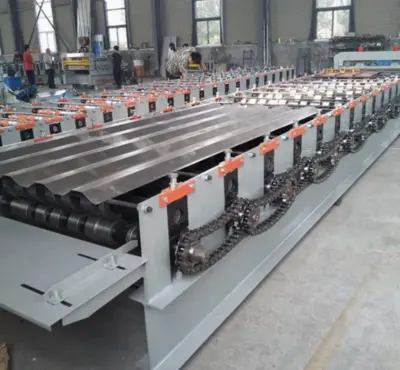

Drive Type: Chain or gearbox drive (based on the machine model)
Forming Stations: Typically 10-20 stations, depending on the panel profile
Electrical and Motor Specifications:
Power: 380V / 50Hz / 3-phase (configurable for different regions)
Motor Power: 5-15 kW (varies by production speed and panel thickness)
Control System: PLC control with touch screen for user-friendly operation and precise length control
Cutting System: Hydraulic cutting with auto-cut feature for desired length
Production Speed:
Average Speed: 10-15 meters per minute
Adjustable Speed Control: Available for variable production speeds
Dimensions:
Machine Length: Around 8-10 meters
Machine Width: Approximately 1.5 meters
Weight: Varies but generally between 5-8 tons
3. Key Features
High Precision Forming: Ensures accurate profiles for wall panels with minimal deviation.
Advanced PLC Control System: Simplifies operation, with user-friendly touch screen interface allowing operators to set panel lengths and quantities.
Durability: Built with high-strength materials and corrosion-resistant rollers for longevity and performance.
Energy Efficient: Optimized to consume less power per production unit, lowering operating costs.
Customization Options: Configurable to produce various wall panel profiles and customizable for region-specific power requirements.
4. Applications
Construction and Building Materials: Widely used for external and internal wall cladding.
Industrial and Commercial Buildings: Suited for large-scale installations.
Residential Projects: Lightweight panels can also be used for modern residential buildings.
5. Installation & Maintenance
Installation: Professional installation recommended for optimal performance, with on-site training provided.
Maintenance: Regular lubrication of rollers, chains, and motor components; inspection of electrical systems and PLC settings for smooth operations.
This machine is ideal for manufacturers looking to meet demand for high-quality metal wall panels in construction projects across various sectors, ensuring durability and aesthetic appeal.
