Size
6000*1500*1600mm
Weight
6500KGS
Motor Power
7.5KW
Hydraulic Power
5.5KW
Voltage
380V/50HZ/3PH
Forming Steps
13steps
Processing Speed
4-6m/min
Thickness
0.3mm~0.6mm
Feeding Material Width
1000mm;
Effective Width
840mm
Height of Roofing
38mm

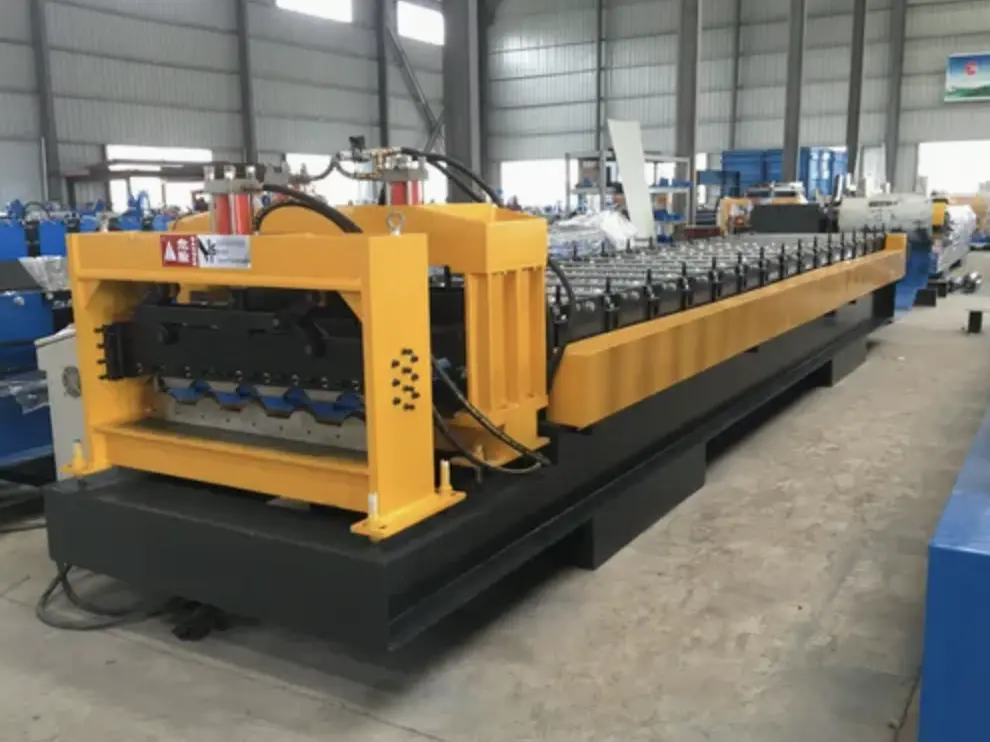

A rib tile roll forming machine is designed to produce metal roofing sheets with a ribbed profile, commonly used for roofing applications due to its durability, water-resistance, and ease of installation. Here’s a quick breakdown of its main features:

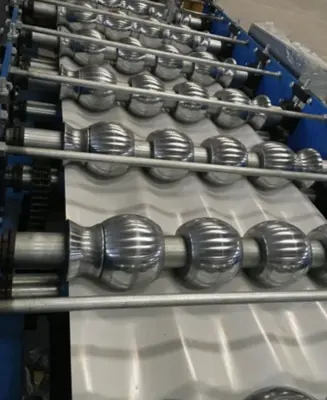

Profile: The machine creates ribbed profiles that enhance the strength and appearance of the roofing sheets, offering a modern and sleek finish. The profile is often customizable to meet specific structural or aesthetic requirements.
Material Compatibility: This machine can typically process materials such as galvanized steel, aluminum, and other coated steel variants, allowing for flexibility depending on the specific project or climate requirements.
Automation: Many rib tile roll forming machines come with automated controls for easy operation, usually through a PLC system. This makes it possible to adjust settings for different lengths and specifications efficiently.
Applications: Ribbed roofing sheets produced by these machines are widely used in residential, commercial, and industrial buildings, particularly in regions requiring durable roofing solutions.
Customizability: The machine settings can be tailored to produce sheets with varying rib heights, thicknesses, and lengths, suiting diverse needs and compliance standards across different markets
