Rolling Speed: about 30-40m/min
Materials to be processed: Galvanized steel, Aluzinc, PPGI from 0.3 mm to 0.8 mm
Maximum length of the sheet to be unloaded: 6 m
Control System: PLC with touch screen
Roller Stations: about 20 stations
Roller Material : 45# forge steel, coated with chrome
Shaft Material and DIA: ￠76mm,material is 45# forge steel, Chrome with quenching
Motor Power: 22kw main motor
Hydraulic power:7.5kw
Power supplier:380V, 50HZ,3 phase
Way Of Drive:Gearbox
The size of the forming machine: About 11,500*1700*1200mm
Machine weight: about 10 tons

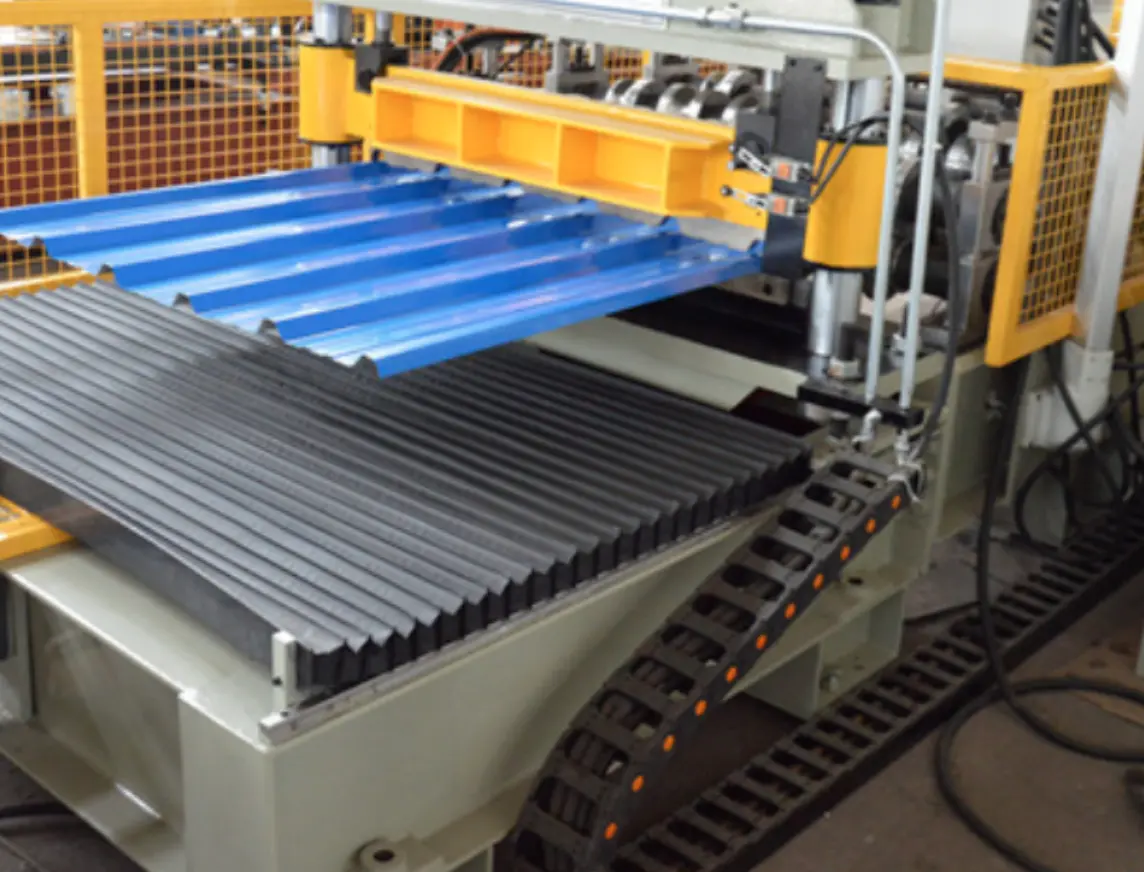

A roofing sheet roll forming machine is a specialized piece of equipment designed to produce metal roofing sheets through a continuous bending process. It transforms flat metal coils, typically steel, aluminum, or copper, into shaped roofing profiles such as trapezoidal, corrugated, or standing seam panels. These machines are essential in construction industries for efficiently manufacturing large quantities of metal roofing panels with precise dimensions and minimal waste.
Key Features:
Material Compatibility: Works with metal coils of various materials, like galvanized steel, aluminum, and copper.
Profile Versatility: Produces different roofing profiles such as trapezoidal, corrugated, or standing seam.
Automation: Many modern machines are automated, enabling faster production with minimal manual intervention.
Adjustability: The machine can be adjusted for different lengths, thicknesses, and profiles.
Precision: Offers consistent and high-quality output, crucial for roofing installations.
Benefits:
Efficiency: High-speed production ensures large volumes of roofing sheets in a short time.
Customization: Profiles can be tailored to specific project requirements.
Cost-Effective: Reduces labor and material costs by minimizing waste.
Durability: Produces roofing sheets that are long-lasting and resistant to harsh weather conditions.
